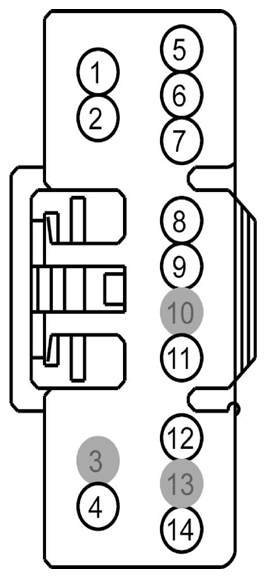

| 1 |
SBB08 (VT-RD) |
12 |
FUSE - 8 OR CIRCUIT BREAKER |
|
| 2 |
CBP38 (GY-BU) |
22 |
FUSE - 38 OR CIRCUIT BREAKER |
|
| 3 |
* |
* |
Not Used |
|
| 4 |
GD233 (BK) |
12 |
GROUND - COWL SIDE/PILLAR A LEFT (BC3T) |
|
| 5 |
CPR31 (VT-BN) |
22 |
SWITCH - MOON/SUN ROOF OPEN |
|
| 6 |
CPR40 (YE-OG) |
22 |
SWITCH - MOON/SUN ROOF CLOSE |
|
| 7 |
CPR38 (WH-BU) |
22 |
SWITCH - MOON/SUN ROOF TILT |
|
| 8 |
CPR86 (GY-BN) |
22 |
SWITCH - SHADE MOON/SUN ROOF OPEN |
|
| 9 |
CPR87 (VT) |
22 |
SWITCH - SHADE REAR WINDOW CLOSE |
|
| 10 |
* |
* |
Not Used |
|
| 11 |
CDC41 (WH-BN) |
22 |
SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL) |
|
| 12 |
CPR39 (VT-WH) |
22 |
MOTOR/SMART - MOON/SUN ROOF SWITCH COMMON |
|
| 13 |
* |
* |
Not Used |
|
| 14 |
CPW01 (BN-BU) |
22 |
CTRL MOD. - POWER WINDOW GLOBAL SET + |
|
