Audio Digital Signal Processing (DSP) Module: Notes

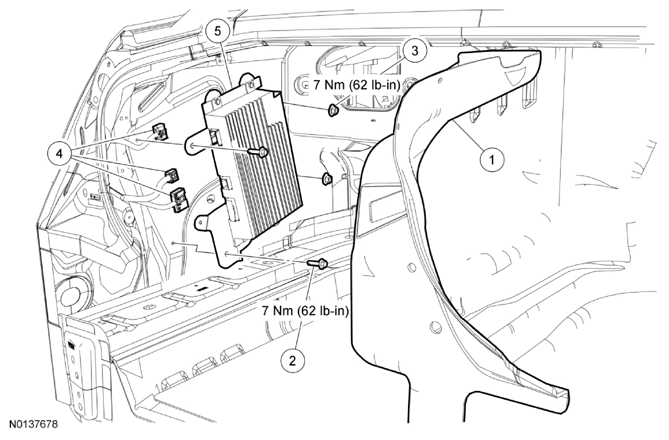

Fig 1: LH Luggage Compartment Trim Panel, Audio Digital Signal Processing Module, Electrical Connector, Nuts And Bolts With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | 5445423 | LH luggage compartment trim panel |
| 2 | W705968-S | Audio Digital Signal Processing (DSP) module bolts (2 required) |
| 3 | W707142-S | Audio DSP module nuts (2 required) |
| 4 | - | Audio DSP module electrical connectors (part of 14A005) |
| 5 | 18A849 | Audio DSP module |
