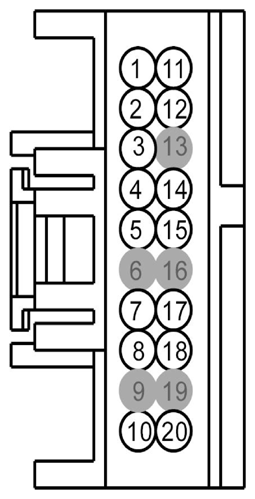

Audio Digital Signal Processing (DPS) Module Connector End View (C4326A)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VDB14 (VT-GY) | 22 | CTRL MOD. - MULTIMEDIA CAN BUS LOW | |
| 2 | VMEA7 (GY-BU) | 18 | CTRL MOD. - AUDIO # SPEAKER REAR (WOOFER) + | |
| 3 | SME23 (VT-RD) | 22 | CTRL MOD. - AUDIO # SUBWOOFER/AMPLIFIER ENABLE | |
| 4 | VMEA3 (GN) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) + | |
| 5 | VMEA5 (GN-VT) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) + | |
| 6 | * | * | Not Used | |
| 7 | VME17 (GN) | 22 | CTRL MOD. - AUDIO # RADIO LEFT + | |
| 8 | VME18 (VT) | 22 | CTRL MOD. - AUDIO # RADIO RIGHT + | |
| 9 | * | * | Not Used | |
| 10 | VME80 (VT-GN) | 22 | CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (+) | |
| 11 | VDB13 (BU-GY) | 22 | CTRL MOD. - MULTIMEDIA CAN BUS HIGH | |
| 12 | VMEA8 (WH-GN) | 18 | CTRL MOD. - AUDIO # SPEAKER REAR (WOOFER) - | |
| 13 | * | * | Not Used | |
| 14 | VMEA4 (YE-OG) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) - | |
| 15 | VMEA6 (YE-BU) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) - | |
| 16 | * | * | Not Used | |
| 17 | RME17 (GY) | 22 | CTRL MOD. - AUDIO # RADIO LEFT - | |
| 18 | RME18 (YE) | 22 | CTRL MOD. - AUDIO # RADIO RIGHT - | |
| 19 | * | * | Not Used | |
| 20 | RME80 (BU-GY) | 22 | CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (-) |
| Available Pigtail Kits | |

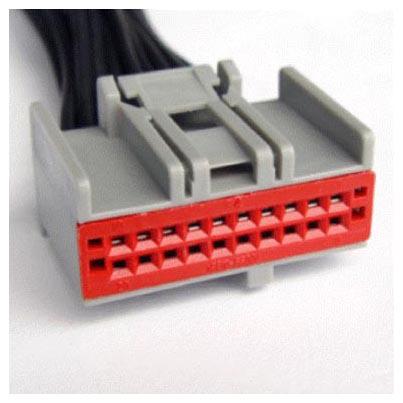

| Pigtail Kit Part Number WPT-1199 | Service Part Number: 3U2Z-14S411-FCB Gauge: 18 Pin material: Silver Cavities: 20 Vehicle Uses
|

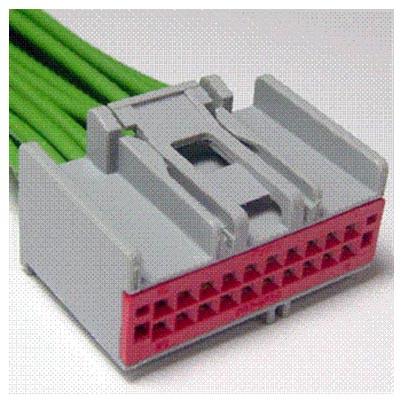

| Pigtail Kit Part Number WPT-255 | Service Part Number: 3U2Z-14S411-FCA Gauge: 18 Pin material: Tin Cavities: 20 Vehicle Uses
|
