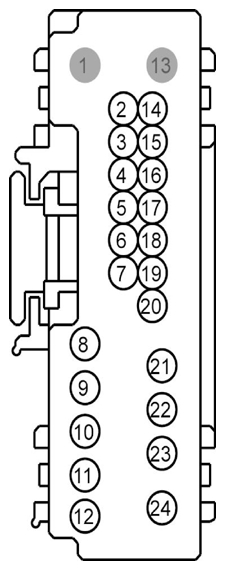

Audio Digital Signal Processing (DPS) Module Connector End View (C4326C)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | * | * | Not Used | |
| 2 | RME28 (BN-GN) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT IP - | |
| 3 | RME02 (YE) | 18 | CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 1 - | |
| 4 | RME01 (GY) | 18 | CTRL MOD. - AUDIO # SPEAKER SUBWOOFER LEFT REAR 1 - | |
| 5 | RME12 (BN-BU) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) - | |
| 6 | RME09 (BN-YE) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) - | |
| 7 | RME28 (BN-GN) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT IP - | |
| 8 | RME29 (BU-WH) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT IP - | |
| 9 | SBP05 (GY-RD) | 16 | FUSE - 5 OR CIRCUIT BREAKER | |
| 10 | SBP05 (GY-RD) | 16 | FUSE - 5 OR CIRCUIT BREAKER | |
| 11 | SBP19 (BU-RD) | 16 | FUSE - 19 OR CIRCUIT BREAKER | |
| 12 | SBP19 (BU-RD) | 16 | FUSE - 19 OR CIRCUIT BREAKER | |
| 13 | * | * | Not Used | |
| 14 | VME28 (BN-VT) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT IP + | |
| 15 | VME02 (VT) | 18 | CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 1 + | |
| 16 | VME01 (GN-VT) | 18 | CTRL MOD. - AUDIO # SPEAKER SUBWOOFER LEFT REAR 1 + | |
| 17 | VME12 (BN-WH) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) + | |
| 18 | VME09 (WH-GN) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) + | |
| 19 | VME28 (BN-VT) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT IP + | |
| 20 | VME29 (GN-WH) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT IP + | |
| 21 | GD347 (BK-VT) | 16 | GROUND - PILLAR C OR QUARTER PANEL LEFT (BC3T) | |
| 22 | GD347 (BK-VT) | 16 | GROUND - PILLAR C OR QUARTER PANEL LEFT (BC3T) | |
| 23 | GD347 (BK-VT) | 16 | GROUND - PILLAR C OR QUARTER PANEL LEFT (BC3T) | |
| 24 | GD347 (BK-VT) | 16 | GROUND - PILLAR C OR QUARTER PANEL LEFT (BC3T) |
| Available Pigtail Kits | |

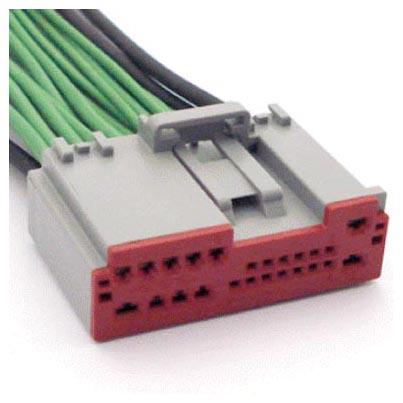

| Pigtail Kit Part Number WPT-1033 | Service Part Number: 9U2Z-14S411-YA Gauge: 12 14 18 Pin material: Tin & Silver Cavities: 24 Vehicle Uses
|
