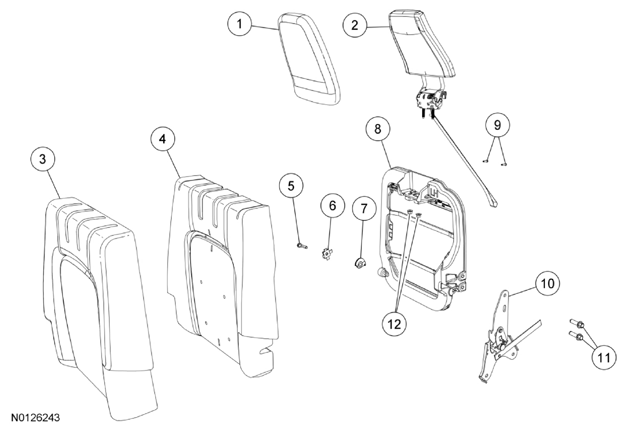

Backrest, Manual
NOTE:
LH shown in illustration, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 501A04 | Head restraint cover |
| 2 | 611A09 | Head restraint assembly |
| 3 | 66601 | Backrest cover |
| 4 | 66801 | Backrest foam pad |
| 5 | W714465 | Pivot bolt |
| 6 | - | Felt tape |
| 7 | 613B44 | Bushing |
| 8 | 613A39 | Backrest frame |
| 9 | W505575 | Head restraint bolts |
| 10 | 613D61 | Backrest latch, manual |
| 11 | W716033 | Backrest latch-to-backrest frame bolts (2 required) |
| 12 | W520112 | Head restraint-to-backrest frame nuts |
