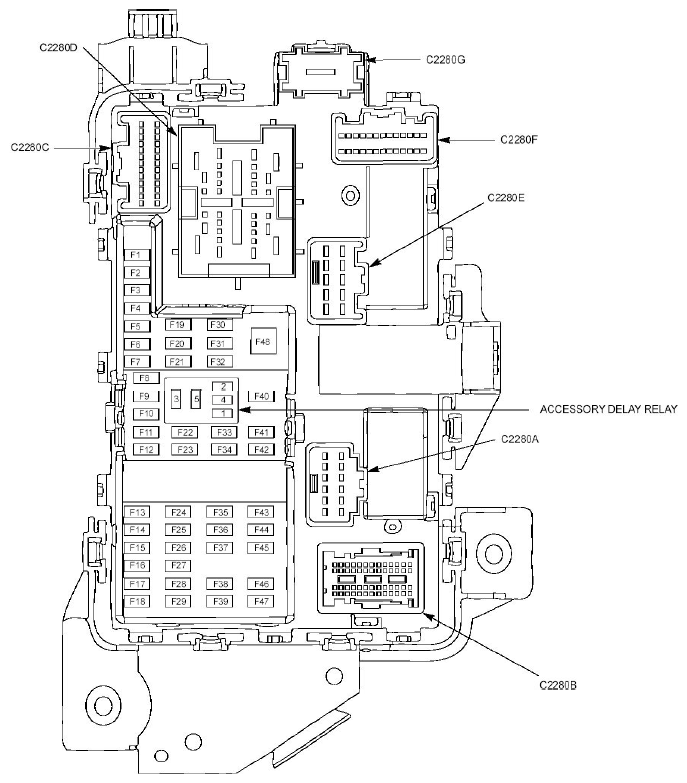

Body Control Module (BCM)
BODY CONTROL MODULE (BCM) RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Accessory Delay Relay |
BODY CONTROL MODULE FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F1 | 30 | Power window motor right rear |
| F2 | 15 | Power fold seat motors second row Lumbar adjust switches rear Seat control switch driver side front |
| F3 | 30 | Power window motor passenger side front |
| F4 | 10 | Battery saver relay Glove box lamp Interior lamps Seat control switch second row left and right |
| F5 | 20 | Audio Digital Signal Processing (DSP) module |
| F6 | 5 | RHVAC module, (Livery) USB power outlet, rear, Audio Rear Control Unit (RCU) module |
| F7 | 7.5 | Driver Seat Module (DSM) Keypad switch assembly. Driver Door Module (DDM) |
| F8 | 10 | Liftgate/Trunk Module (LTM |
| F9 | 10 | APIM, FCIM, TPM module |
| F10 | 10 | Run/Acc feeds wiper relay |
| F11 | 10 | Remote Function Actuator (RFA) module Head Up Display (HUD) module |
| F12 | 15 | Puddle lamps, Scuff plate lamps, Exterior rear view mirrors, Interior lighting. Backlighting |
| F13 | 15 | Right front park/turn lamps - turn lamp, Right stop/turn trailer tow lamp relay-turn lamp, Right rear lamp assembly - turn lamp |
| F14 | 15 | Left front park/turn lamps - turn lamp, Left stop/turn trailer tow lamp relay - turn lamp, Left rear lamp assembly - turn lamp |
| F15 | 15 | High mounted stoplamp Illuminated liftgate applique, Trailer tow relay, reversing lamps, Customer access |
| F16 | 10 | Right headlamp - low beam |
| F17 | 10 | Left headlamp - low beam |
| F18 | 10 | Brake shift interlock, Rear seat release relay, Powertrain Control Module (PCM), Passive anti-theft transceiver - w/o IA, Keyless entry keypad - w/o IA, Start/Stop switch - with IA |
| F19 | 20 | Audio Digital Signal Processing (DSP) module, Subwoofer amplifier |
| F20 | 20 | Not used |
| F21 | 10 | Not used |
| F22 | 20 | Horn relay, Horn, Steering Column Control Module (SCCM) |
| F23 | 15 | Instrument Panel Cluster (IPC), Steering Column Control Module (SCCM) |
| F24 | 15 | Data Link Connector (DLC), Steering Column Control Module (SCCM) |
| F25 | 15 | Not used |
| F26 | 5 | Start/stop switch |
| F27 | 20 | Remote Function Actuator (RFA) module |
| F28 | 15 | Not used |
| F29 | 20 | Audio Control Module (ACM), Global Positioning System Module (GPSM) |
| F30 | 15 | |
| F31 | 5 | PCM, BPP switch, RFA nodule, TBC module |
| F32 | 15 | Door lock switches, Window adjust switches, Power window motors. Redundant seat adjust switch passenger side front, DC/AC inverter module, Sunshade motor and switch Roof opening panel module and control switch |
| F33 | 10 | Vehicle Dynamics Module (VDM) |
| F34 | 10 | Heated seat module, rear, Side obstacle detection (SOD) sensor left and right rear Customer access (Hearse), Parking Aid Module (PAM), Video camera |
| F35 | 5 | Head Up Display (HUD) module, In-vehicle temperature/humidity sensor Floor shifter |
| F36 | 10 | Heated Steering Wheel Module (HSWM) |
| F37 | 10 | Refrigerator |
| F38 | 10 | Not used |
| F39 | 15 | Headlamps - high beam |
| F40 | 10 | Rear lamp assemblies - park lamp License plate lamps, Illuminated liftgate appliques - park lamp |
| F41 | 75 | Restraints Control Module (RCM), Occupant Classification System Module (OCSM) |
| F42 | 5 | Not used |
| F43 | 10 | Not used |
| F44 | 10 | Not used |
| F45 | 5 | Not used |
| F46 | 10 | HVAC module DATC |
| F47 | 15 | Fog lamps |
| F48 | 30 c.b. | Not used |
