Pinpoint Test DP: Output Shaft Speed (OSS) Sensor/Vehicle Speed Sensor (VSS): Introduction: Notes

This pinpoint test is intended to diagnose the following:

• OSS (7F293)
• VSS (7M101)
• harness circuits: OSS, PWRGND, SIGRTN, VBPWR and VSS
• powertrain control module (PCM) (12A650)

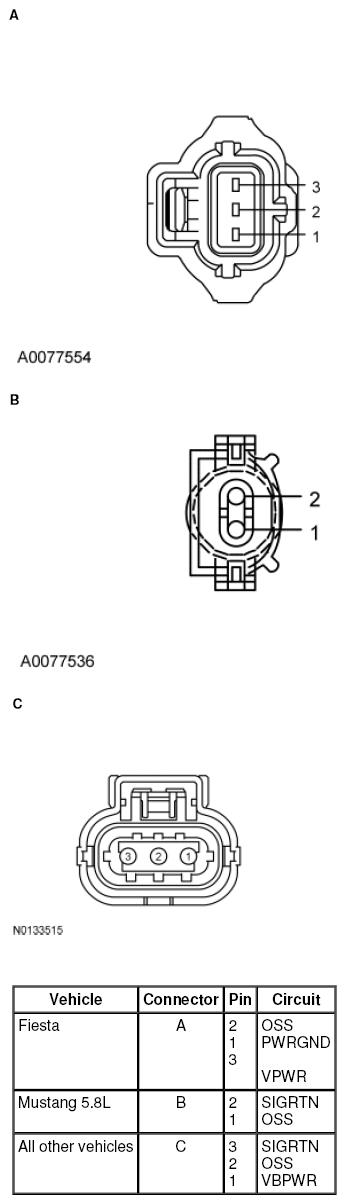

  Fig 1: Identifying Output Shaft Speed (OSS) Sensor Connector

  Courtesy of FORD MOTOR CO.

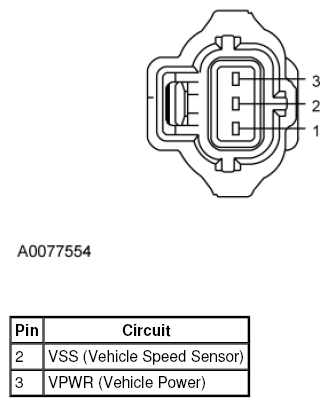

  Fig 2: Identifying Vehicle Speed Sensor (VSS) Connector

  Courtesy of FORD MOTOR CO.
