Audio Control Module (ACM) Connector End View (C240B)

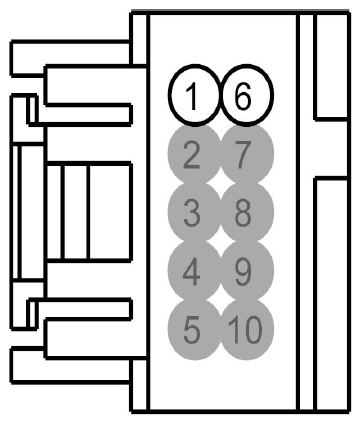

Fig 1: Identifying Audio Control Module Connector (C240B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VMP19 (WH-GN)	20	CAMERA - VIDEO DISPLAY MIRROR +
2	*	*	Not Used
3	*	*	Not Used
4	*	*	Not Used
5	*	*	Not Used
6	RMP19 (BN-VT)	20	CAMERA - VIDEO DISPLAY MIRROR -
7	*	*	Not Used
8	*	*	Not Used
9	*	*	Not Used
10	*	*	Not Used

Available Pigtail Kits

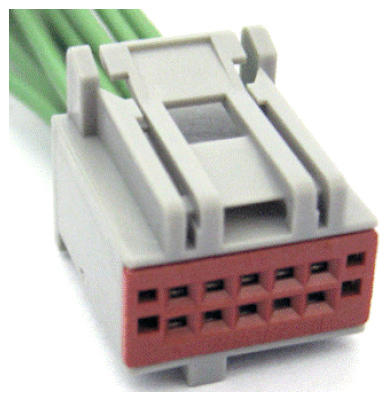

Pigtail Kit Part Number WPT-934	Service Part Number: 3U2Z-14S411-LSB  Gauge: 18  Pin material: Silver  Cavities: 10  Vehicle Uses Lamp - Headlamp Switch Module - Lighting Control Module - Reverse Park Aid (RPA) Module - Seat Memory Radio Switch - Headlamp Switch - Headlamp/Foglamp Switch - Multifunction Switch - Power Window - Driver Switch - Turn Signal

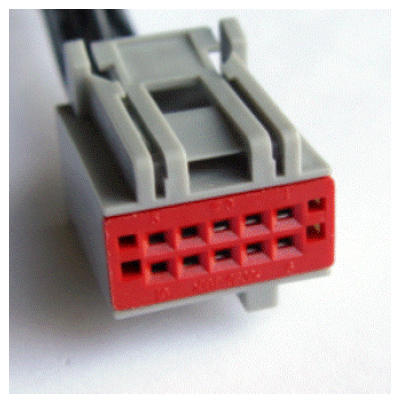

Pigtail Kit Part Number WPT-559	Service Part Number: 3U2Z-14S411-LSA  Gauge: 20  Pin material: Tin  Cavities: 9  Vehicle Uses Module - Reverse Park Aid (RPA) Module - Seat Memory Switch - Heated Seat - RH - Front Switch - Multifunction Switch - Power Window - Driver Switch - Seat (driver) Switch - Seat (passenger)
