Fuel Pump (FP) Control Module Connector End View (C4033)

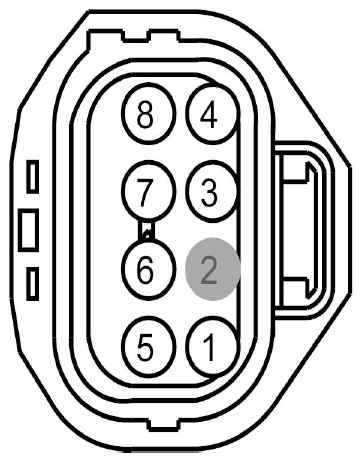

Fig 1: Identifying Fuel Pump Control Module Connector (C4033)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE911 (VT-WH)	12	VPWR FUEL - B
2	*	*	Not Used
3	VE225 (YE-OG)	20	FUEL PUMP COMMAND (FPC)
4	GD180 (BK)	12	GROUND - FRAME MIDDLE LEFT
5	CE515 (YE-GY)	14	FUEL PUMP POWER (FPPWR)
6	CR167 (VT-YE)	20	CTRL MOD. - ENS
7	VE518 (BN-WH)	20	MONITOR - FUEL PUMP (FPM)
8	RE515 (WH-BN)	14	FUEL PUMP RETURN (FPRTN)

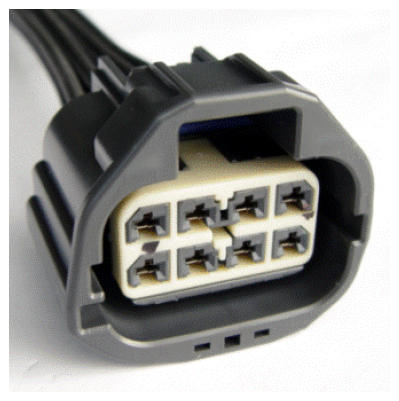

Available Pigtail Kits
Pigtail Kit Part Number WPT-521	Service Part Number: 3U2Z-14S411-TZA  Gauge: 12  Pin material: Tin  Cavities: 8  Vehicle Uses Fuel Pump/Sending Unit Motor - Power Window - LH - Front Motor - Power Window - LH - Rear Motor - Power Window - RH - Front Motor - Power Window - RH - Rear Relay - Fuel Pump
