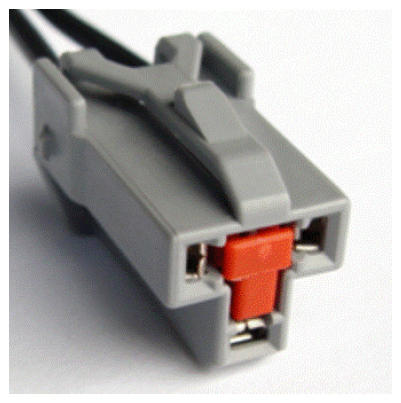

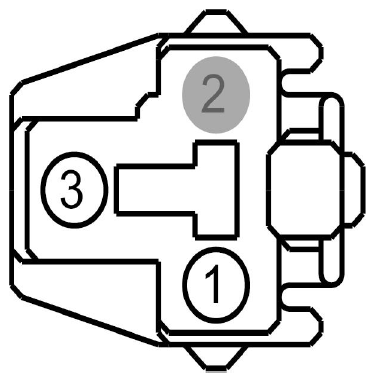

Power Point, Console 2 Connector End View (C3064)

Fig 1: Identifying Power Point, Console 2 Connector (C3064)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBB65 (RD)	14	FUSE - 65 OR CIRCUIT BREAKER	Navigator
2	*	*	Not Used
3	GD143 (BK-VT)	14	GROUND - PILLAR B LEFT Navigator

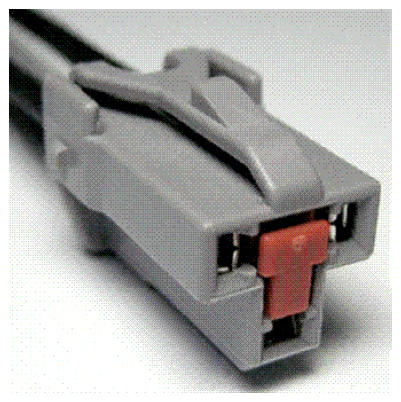

Available Pigtail Kits
Pigtail Kit Part Number WPT-1160	Service Part Number: 3U2Z-14S411-SJB Gauge: 12 Pin material: Tin Cavities: 3 Vehicle Uses Cigar Lighter Lamp - Ash Tray Power Point
Pigtail Kit Part Number WPT-682	Service Part Number: 3U2Z-14S411-SJA Gauge: 14 Pin material: Tin Cavities: 3 Vehicle Uses Alternator Motor - Engine Cooling Fan
