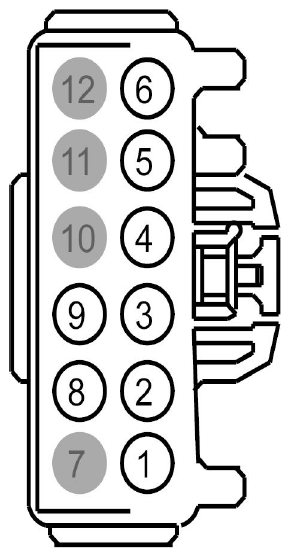

Liftgate/Trunk Module (LTM) Connector End View (C4174A)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | GD149 (BK-GY) | 12 | GROUND - PILLAR D LEFT | |
| 2 | CPR61 (BN) | 16 | CTRL MOD. - POWER LIFTGATE # CINCH | |
| 3 | CPR62 (WH-BU) | 16 | CTRL MOD. - POWER LIFTGATE # UNCINCH | |
| 4 | SBB36 (GN-RD) | 12 | FUSE - 36 OR CIRCUIT BREAKER | |
| 5 | CPR57 (GN-WH) | 12 | CTRL MOD. - POWER LIFTGATE # OPEN | |
| 6 | CPR58 (GN-OG) | 12 | CTRL MOD. - POWER LIFTGATE # CLOSE | |
| 7 | * | * | Not Used | |
| 8 | CPR69 (BN-BU) | 20 | CTRL MOD. - POWER LIFTGATE # CLUTCH | |
| 9 | SBP14 (BN-RD) | 20 | FUSE - 14 OR CIRCUIT BREAKER | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used |

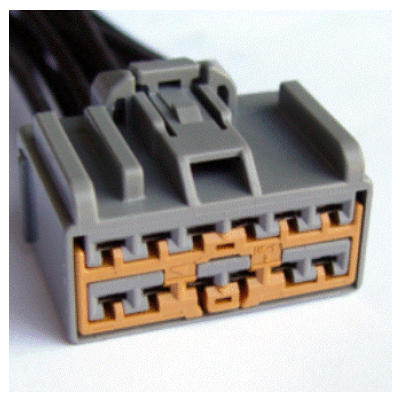

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-396 | Service Part Number: 3U2Z-14S411-BKA Gauge: 12 Pin material: Tin Cavities: 12 Vehicle Uses
|
