| 1 |

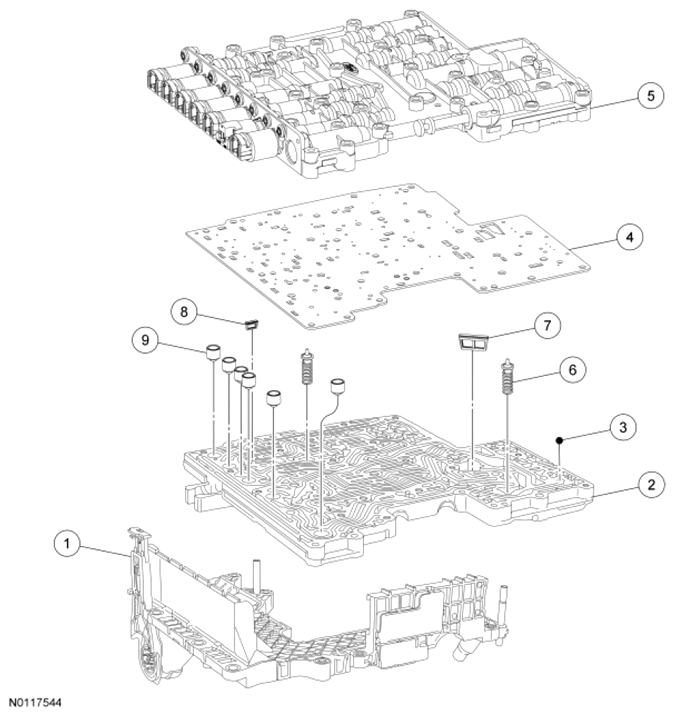

7A100 |
Main control |
| 1 |
7G276 |
Molded leadframe |
| 2 |
- |
Transmission control valve body (upper) |
| 3 |
7E195 |
Transmission control valve check ball (8 required) |
| 4 |
7Z490 |
Transmission control valve body separator plate |
| 5 |
- |

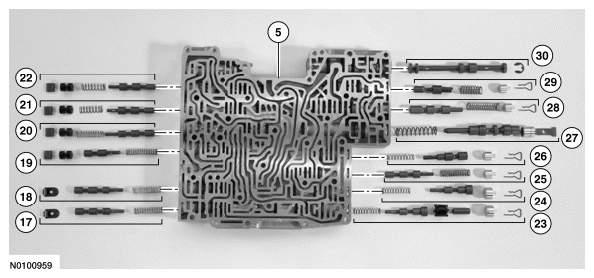

Transmission control valve body (lower) |
| 6 |
- |
Transmission control valve assembly |
| 7 |
7H187 |
Transmission control filter assembly |
| 8 |
7B155 |
Transmission fluid filter |
| 9 |
- |
Transmission solenoid damper valve assembly |
| 10 |
7G383 |

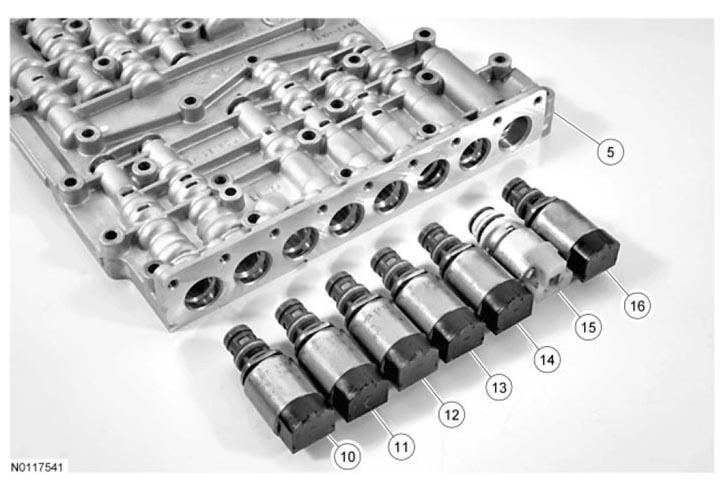

Shift Solenoid A (SSA) |
| 11 |
7G383 |
Shift Solenoid B (SSB) |
| 12 |
7G383 |
Shift Solenoid C (SSC) |
| 13 |
7G383 |
Line Pressure Control (LPC) solenoid |
| 14 |
7G383 |
Shift Solenoid D (SSD) |
| 15 |
7G484 |
Shift Solenoid E (SSE) |
| 16 |
7G383 |
Torque Converter Clutch (TCC) solenoid |
| 17 |
- |
Forward (A) clutch latch valve assembly |
| 18 |
- |
Direct (B) clutch latch valve assembly |
| 19 |
- |
Solenoid regulator valve |
| 20 |
- |
Low/reverse (D1) clutch latch valve assembly |
| 21 |
- |
Drive enable valve |
| 22 |
- |
Solenoid multiplex valve |
| 23 |
- |
Forward (A) clutch regulator valve assembly |
| 24 |
- |
Overdrive (E) clutch regulator valve assembly |
| 25 |
- |
Overdrive (E) clutch latch valve assembly |
| 26 |
- |
Bypass clutch control regulator valve assembly |
| 27 |
- |
Main regulator valve assembly |
| 28 |
- |
Converter release regulator valve assembly |
| 29 |
- |
Lubrication control valve assembly |
| 30 |
- |
Manual valve assembly |
| 31 |
- |

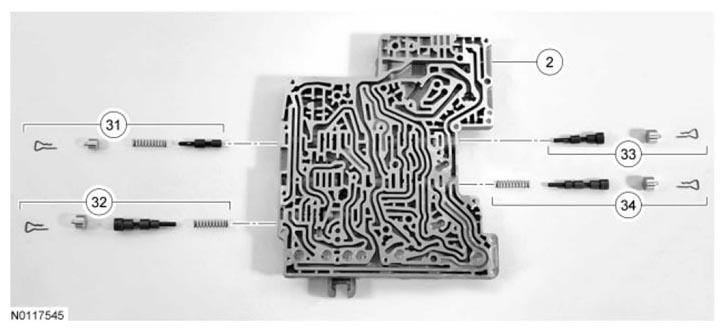

Low/reverse (D2) clutch latch valve assembly |
| 32 |
- |
Direct (B) clutch regulator valve assembly |
| 33 |
- |
Low/reverse (D1) clutch regulator valve assembly |
| 34 |
- |
Intermediate (C) clutch regulator valve |
