2-Speed Transfer Case - Front Half: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Lubricate all internal components with the recommended transfer case lubricant during reassembly.
  2. Clean the mating surfaces of the cases.
  3. Using a press and the Output Shaft Front Bearing Installer with the Handle, install the front planet support bearing.
    Fig 1: Installing Front Planet Support Bearing
    G06128079Courtesy of FORD MOTOR CO.
  4. Using a press and the Front Axle Oil Seal Installer with the Handle, install the front output shaft support bearing.
    Fig 2: Installing Front Output Shaft Support Bearing
    G06128080Courtesy of FORD MOTOR CO.
  5. Using the Input Shaft Oil Seal Installer, install a new front output shaft seal.
    Fig 3: Installing Front Output Shaft Seal
    G07412676Courtesy of FORD MOTOR CO.
  6. Using the Valve Stem Oil Seal Installer, install a new shift shaft seal.
    Fig 4: Installing Shift Shaft Seal
    G06128082Courtesy of FORD MOTOR CO.
  7. Install the case to the Transmission Holding Fixture. Secure the case and the Transmission Holding Fixture to the work bench.
    Fig 5: Removing Transfer Case From Transmission Holding Fixture
    G06128103Courtesy of FORD MOTOR CO.
  8. Using Input Shaft Oil Seal Installer, install a new front input shaft seal.
    Fig 6: Installing Front Input Shaft Seal
    G07412681Courtesy of FORD MOTOR CO.
  9. Install the ring gear.
    1. Position the ring gear in the case.
    2. Install the snap ring.

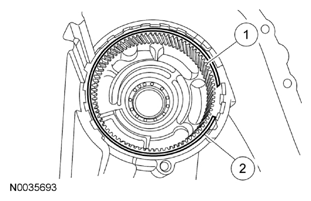

      Fig 7: Identifying Ring Gear And Snap Ring
      G07953766Courtesy of FORD MOTOR CO.
  10. Install the front output shaft and the snap ring.
    Fig 8: Locating Snap Ring And Front Output Shaft
    G06128139Courtesy of FORD MOTOR CO.
  11. Install the driven sprocket spacer.
    Fig 9: Locating Driven Sprocket Spacer
    G07953768Courtesy of FORD MOTOR CO.
    12. NOTE: If removed, using a press and the Input Shaft Bearing Installer, install the needle bearing into the front planet. Be careful not to damage the bearing cage.
    Fig 10: Locating Front Planet
    G06128086Courtesy of FORD MOTOR CO.
  12. Install the front planet.
  13. Install the shift fork shaft.
    Fig 11: Locating Shift Fork Shaft
    G06128071Courtesy of FORD MOTOR CO.
  14. Assemble the reduction hub and the reduction shift fork. Install the reduction shift fork, the reduction hub and the shift cam as an assembly.

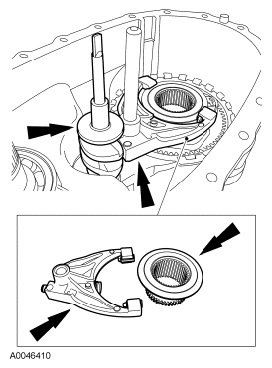

    Fig 12: Locating Reduction Shift Fork, Reduction Hub And Shift Cam Assembly
    G06128070Courtesy of FORD MOTOR CO.
  15. Install the output shaft.

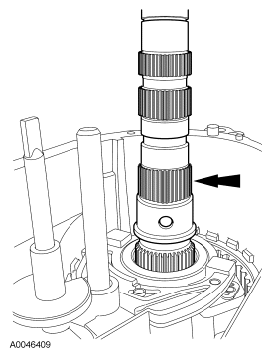

    Fig 13: Locating Output Shaft
    G06128069Courtesy of FORD MOTOR CO.
    16. NOTE: Make sure the oil pump finger is in the slot in the case.
    Fig 14: Locating Oil Pump Assembly
    G06128068Courtesy of FORD MOTOR CO.
  16. Install the oil pump assembly.
  17. Install the oil pan magnet into the slot in the case.
    Fig 15: Installing Oil Pan Magnet Into Slot In Case
    G07953774Courtesy of FORD MOTOR CO.
  18. Install the 3-piece thrust bearing assembly.
    1. Install the thrust washer.
    2. Install the thrust bearing.
    3. Install the thrust washer.
      Fig 16: Identifying 3-Piece Thrust Bearing Assembly
      G06128092Courtesy of FORD MOTOR CO.
  19. Install the drive chain and the sprockets as an assembly.
    Fig 17: Locating Drive Chain And Sprockets Assembly
    G06128064Courtesy of FORD MOTOR CO.
    20. NOTE: When installing the clutch assembly, do not separate the clutch pack assembly. The thrust washer in the lower clutch pack uses tabs to hold it in place. If the thrust washer is not in place, a transfer case clearance problem will occur.
    NOTE: If the clutch pack is disassembled, a new clutch pack must be installed and the armature transferred. Failure to install a new clutch pack can result in component failure.
    Fig 18: Locating Clutch Pack Assembly
    G06128063Courtesy of FORD MOTOR CO.
  20. Install the clutch pack assembly with the armature.
  21. Install a new snap ring.
    Fig 19: Locating Snap Ring
    G06128062Courtesy of FORD MOTOR CO.
  22. Install the wave spring.
  23. Install the cam and the steel balls.
    Fig 20: Locating Steel Balls And Cam
    G06128061Courtesy of FORD MOTOR CO.
  24. Install the cam/coil housing.
    Fig 21: Locating Cam/Coil Housing
    G06128060Courtesy of FORD MOTOR CO.
  25. Install the thrust bearing assembly.
  26. Install the snap ring.
  27. Using a press and the Mainshaft Bearing Installer, install the rear output shaft support bearing.
    Fig 22: Installing Rear Output Shaft Support Bearing
    G06128098Courtesy of FORD MOTOR CO.
  28. Using a press and the Mainshaft Bearing Installer, install the front output shaft rear bearing.
    Fig 23: Installing Front Output Shaft Rear Bearing
    G06128099Courtesy of FORD MOTOR CO.
    29. NOTE: Only apply enough silicone sealant to seal the transfer case halves together.
  29. Apply a bead of silicone sealant to the transfer case mating surface, then position the 2 transfer case halves together. Tighten the 20 transfer case bolts evenly in a star pattern.
    • Position the coil studs through the case holes, making sure the shift cam shaft is aligned with its case bore and the lockup shift fork spring is in position.
    • Tighten to 29 Nm (21 lb-ft).
      Fig 24: Locating Transfer Case Bolt
      G06128056Courtesy of FORD MOTOR CO.
  30. Install the 3 coil washers and nuts.
    • Tighten to 10 Nm (89 lb-in).
      Fig 25: Locating Coil Nuts And Washers
      G06128055Courtesy of FORD MOTOR CO.
  31. Using the Input Shaft Oil Seal Installer, install the rear output shaft seal.
    Fig 26: Installing Rear Output Shaft Seal
    G06128101Courtesy of FORD MOTOR CO.
  32. Apply a small bead of silicone sealant to the transfer case shift motor mating surface.
    NOTE: When installing the shift motor, tighten the bracket nuts last. Failure to follow the steps in the correct order may result in damage to the component.
  33. Install the transfer case shift motor and the 3 bolts.
    • Tighten to 10 Nm (89 lb-in).
  34. Install the transfer case shift motor bracket bolt.
    • Tighten to 10 Nm (89 lb-in).
  35. Secure the transfer case shift motor bracket nuts.
    36. NOTE: After the wire is inserted into the connector, gently pull the wire back to verify the pin is locked inside the connector.
    Fig 27: Locating Coil Wire Pin In Electrical Connector
    G06128102Courtesy of FORD MOTOR CO.
  36. Insert the coil wire pin in the electrical connector and install the inner connector retainer.
  37. Secure the transfer case to a transmission jack and remove the transfer case from the Transmission Holding Fixture.
    Fig 28: Removing Transfer Case From Transmission Holding Fixture
    G06128103Courtesy of FORD MOTOR CO.
