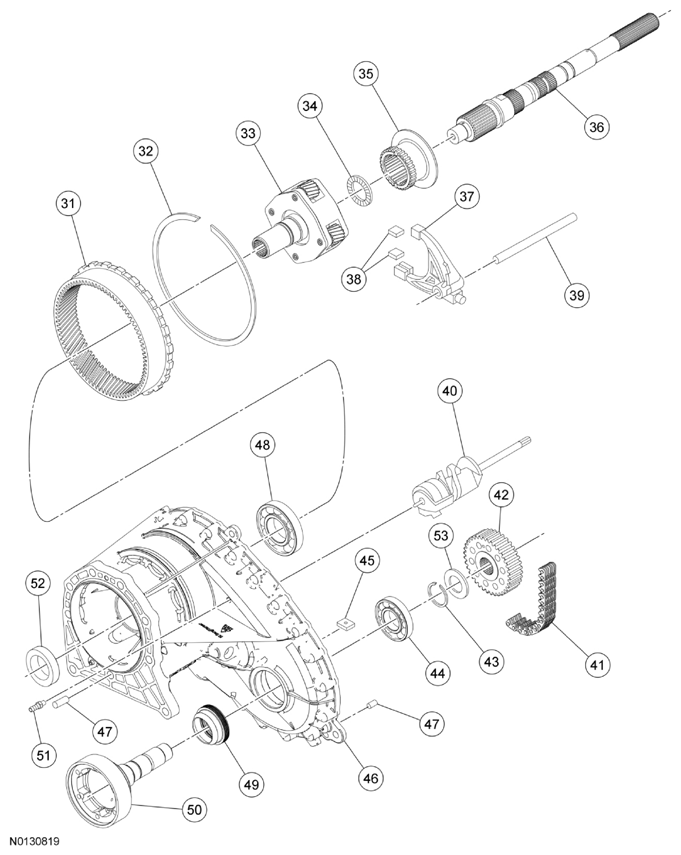

2-Speed Transfer Case - Front Half: Notes
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 31 | 7A153 | Ring gear |
| 32 | 7064 | Snap ring |
| 33 | 7A398 | Front planet carrier |
| 34 | 7D221 | Front planet needle bearing |
| 35 | 7D164 | Reduction hub |
| 36 | 7061 | Output shaft |
| 37 | 7389 | Shift fork |
| 38 | 7C430 | Shift fork pad (2 required) |
| 39 | 7240 | Shift fork shaft |
| 40 | 7F063 | Shift cam assembly |
| 41 | 7A029 | Drive chain |
| 42 | 7177 | Driven sprocket |
| 43 | 7917 | Snap ring |
| 44 | 7025 | Front output shaft support bearing |
| 45 | 7E290 | Magnet |
| 46 | 7005 | Case |
| 47 | 7B362 | Dowel |
| 48 | 7025 | Front input shaft support bearing |
| 49 | 7B215 | Front output shaft oil seal |
| 50 | 7061 | Front output shaft |
| 51 | 7034 | Vent tube |
| 52 | 7B215 | Front input shaft seal |
| 53 | 7N063 | Driven sprocket spacer |
