Removal and Installation

Disconnect the Intake Air Temperature (IAT) sensor electrical connector.
Remove the IAT sensor.
- Lift the tab and turn the IAT sensor counterclockwise to remove.

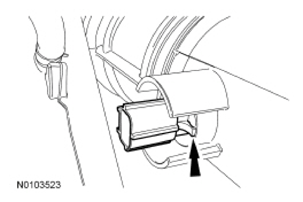

  Fig 1: Locating IAT Sensor Tab
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Make sure the IAT sensor tab is fully seated during installation.
