Generator - 6.7L Diesel, Dual Generator: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

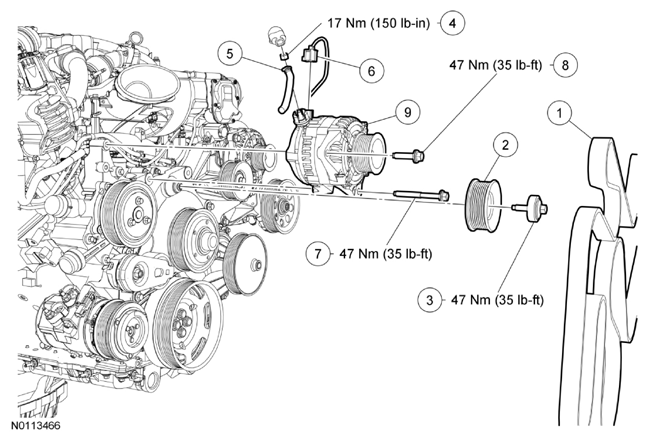

Fig 1: Generator Related Replacement Components With Torque Specifications -- (6.7L Diesel, Dual Generator)
| Item | Part Number | Description |
|---|---|---|
| 1 | 8620 | Accessory drive belt |
| 2 | 6C348 | Accessory drive belt idler pulley |
| 3 | - | Accessory drive belt idler pulley bolt (part of 6C348) |
| 4 | W711953 | Generator B+ terminal nut |
| 5 | - | Generator B+ terminal (part of 14305) - upper generator |
| 6 | - | Generator electrical connector (part of 14305) |
| 7 | W715092 | Lower generator bolt |
| 8 | W715094 | Upper generator bolt |
| 9 | 10300 | Generator (13305) |
