Fuel Level Sensor: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

SPECIAL TOOL DESCRIPTION

Lock Ring Wrench
310-123

MATERIAL SPECIFICATION

Item	Specification
Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent	WSS-M2C930-A

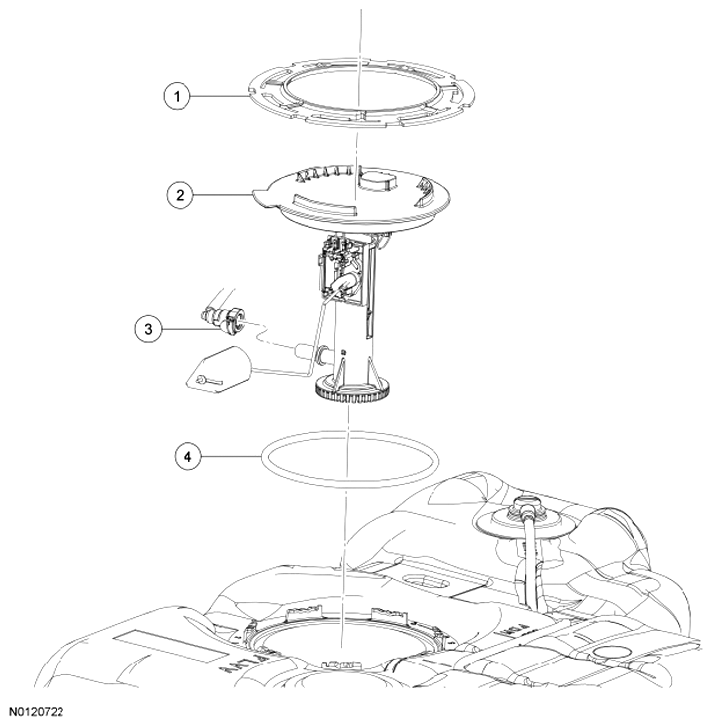

Fig 1: Identifying Fuel Level Sensor Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	9C385	Fuel level sensor lock ring
2	9275	Fuel level sensor
3	-	Internal fuel tube-to fuel level sensor quick connect coupling (part of 9C318)
4	9417	Fuel level sensor O-ring seal
