Powertrain Control Module (PCM) - 2.0L GTDI: Installation

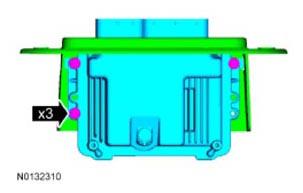

- Install the PCM to the bracket and install the 3 bolts.
- Tighten to 8 Nm (71 lb-in).

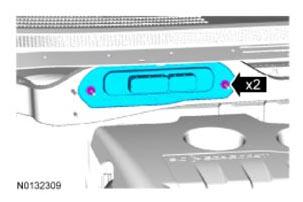

- Install the PCM and bracket assembly and the 2 nuts.
- Tighten to 8 Nm (71 lb-in).

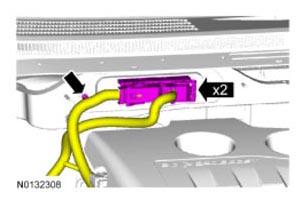

- Connect the 2 PCM electrical connectors.
- Attach the wiring harness retainer to the cowl.
- Restore the module configuration. Carry out the module configuration restore steps of the Programmable Module Installation (PMI) procedure. For additional information, REFER to
MODULE CONFIGURATION
.
- Reprogram the Passive Anti-Theft System (PATS). Carry out the Parameter Reset procedure. For additional information, REFER to
ANTI THEFT - PASSIVE ANTI-THEFT SYSTEM (PATS)
.
- After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
