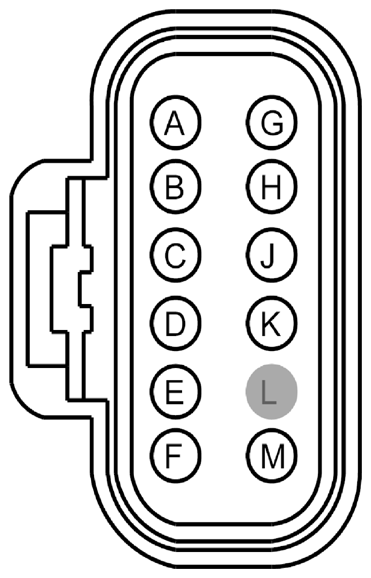

Dual Climate Controlled Seat Module (DCSM) Connector End View (C3036A)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| A | CHS07 (GY-BU) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER | |
| B | RHS07 (BU) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER | |
| C | CHS06 (BU-BN) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK HEATER | |
| D | RHS06 (WH) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK HEATER | |
| E | SBB28 (GN-RD) | 14 | FUSE - 28 OR CIRCUIT BREAKER | |
| F | SBB28 (GN-RD) | 14 | FUSE - 28 OR CIRCUIT BREAKER | |
| G | CHS02 (YE-BU) | 20 | CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER | |
| H | RHS02 (BU-OG) | 20 | CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER | |
| J | CHS01 (GY-VT) | 20 | CTRL MOD. - HOT/COLD SEAT # DRIVER BACK HEATER | |
| K | RHS01 (WH-VT) | 20 | CTRL MOD. - HOT/COLD SEAT # DRIVER BACK HEATER | |
| L | * | * | Not Used | |
| M | GD145 (BK-BU) | 14 | GROUND - PILLAR B RIGHT |
| Available Pigtail Kits | |
|---|---|

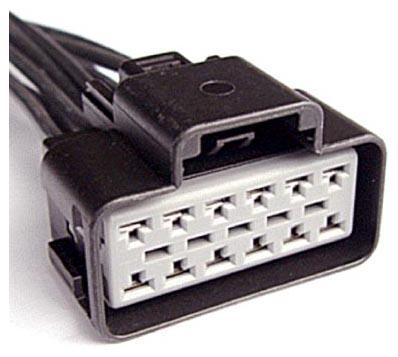

| Pigtail Kit Part Number WPT-928 | Service Part Number: 3U2Z-14S411-ZMB Gauge: 12 Pin material: Tin Cavities: 12 Vehicle Uses
|

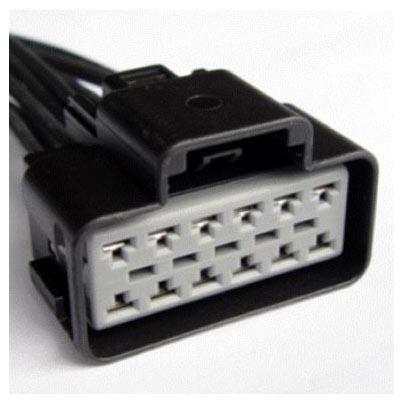

| Pigtail Kit Part Number WPT-659 | Service Part Number: 3U2Z-14S411-ZMA Gauge: 14 Pin material: Tin Cavities: 12 Vehicle Uses
|
