Power Point, Console 2 Connector End View (C3064)

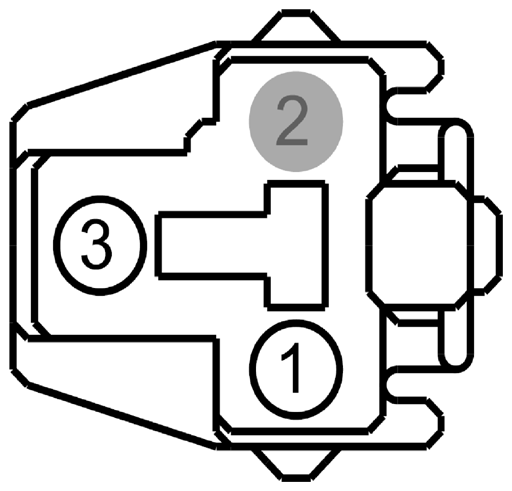

Fig 1: Identifying Power Point, Console 2 Connector (C3064)
G09229888Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 SBB20 (GN-RD) 16 FUSE - 20 OR CIRCUIT BREAKER
2 * * Not Used
3 GD115 (BK-GY) 16 GROUND - CROSS CAR BEAM # 2ND POINT
Available Pigtail Kits

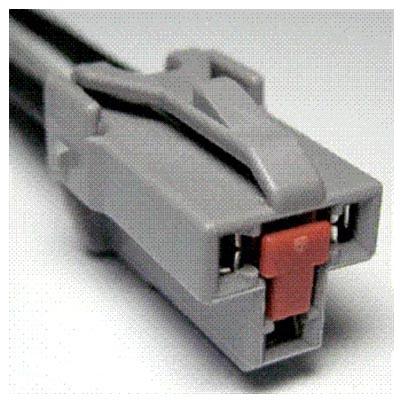

Pigtail Kit Part Number WPT-1160
G09229889
 Service Part Number: 3U2Z-14S411-SJB
Gauge: 12
Pin material: Tin
Cavities: 3
Vehicle Uses
  • Cigar Lighter
  • Lamp - Ash Tray
  • Power Point

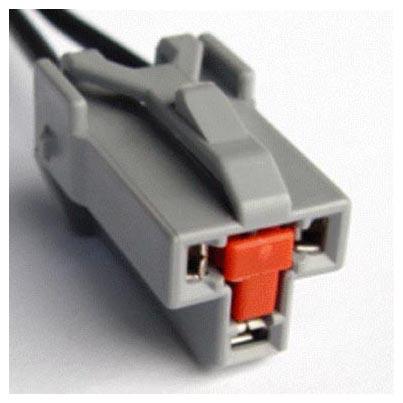

Pigtail Kit Part Number WPT-682
G09229890
 Service Part Number: 3U2Z-14S411-SJA
Gauge: 14
Pin material: Tin
Cavities: 3
Vehicle Uses
  • Alternator
  • Motor - Engine Cooling Fan
