Interior/Map Lamps Assembly, Front Connector End View (C929)

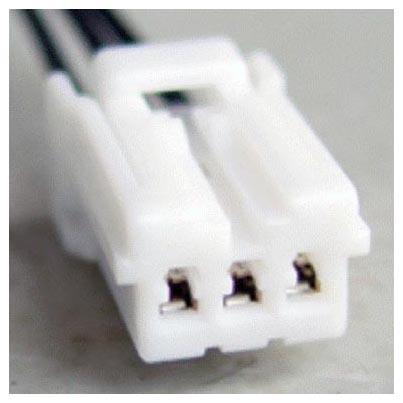

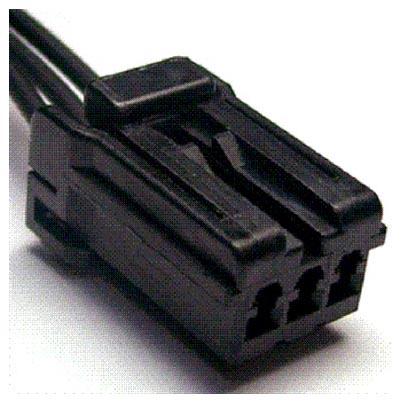

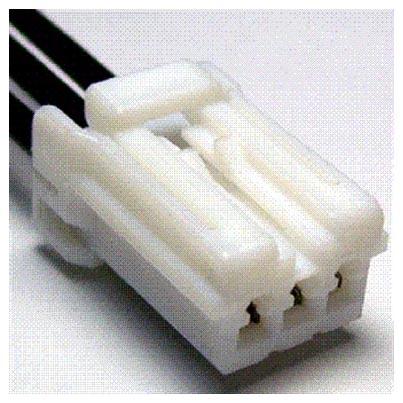

Fig 1: Identifying Interior/Map Lamps Assembly, Front Connector (C929)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD138 (BK-WH)	20	GROUND - PILLAR A RIGHT
2	VLN33 (GY-VT)	18	CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE)
3	CLN09 (YE-GN)	18	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)

Available Pigtail Kits
Pigtail Kit Part Number WPT-947	Service Part Number: 3U2Z-14S411-ENAB  Gauge: 14  Pin material: Tin  Cavities: 3  Vehicle Uses Lamp - Dome Lamp - Dome/Map Lamp - Overhead Console
Pigtail Kit Part Number WPT-1304	Service Part Number: 3U2Z-14S411-UYB  Gauge: 18  Pin material: Tin (greased)  Cavities: 3  Vehicle Uses Indicator - Passenger Airbag Deactivation (PADI) Lamp - Dome Lamp - Dome/Map Lamp - Front Turn/Marker Lamp - Overhead Console Lamp - Roof Marker
Pigtail Kit Part Number WPT-718	Service Part Number: 3U2Z-14S411-ENAA  Gauge: 20  Pin material: Tin  Cavities: 3  Vehicle Uses
