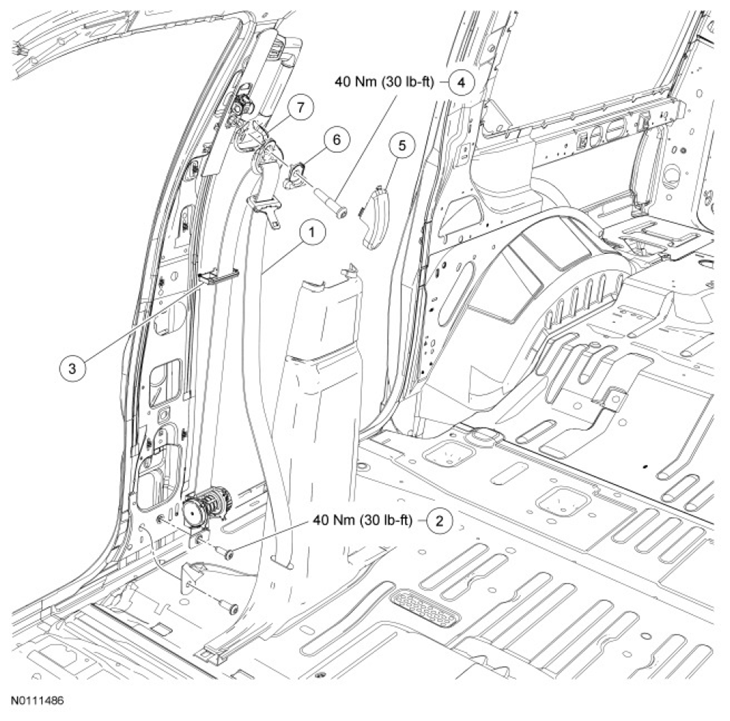

Safety Belt Retractor - Front: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
NOTE:
RH shown, LH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 611B08 RH/611B09 LH | Safety belt retractor |
| 2 | N807750 | Safety belt retractor bolt (part of 611B08 RH/611B09 LH) |
| 3 | - | Safety belt guide (part of 611B08 RH/611B09 LH) |
| 4 | - | D-ring bolt (part of 611B08 RH/611B09 LH) |
| 5 | 7860626 | D-ring front cover |
| 6 | - | D-ring inner cover (part of service kit 7860262) |
| 7 | - | D-ring outer cover (part of service kit 7860262) |
