Exploded View Of Crankshaft Position (CKP) Sensor

NOTE: The LH catalytic converter must be removed to service the Crankshaft Position (CKP) sensor. For additional information, refer to Exhaust System .

NOTE: After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.

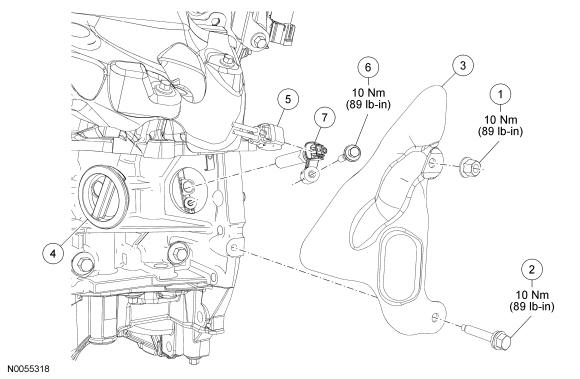

Fig 1: Exploded View Of Crankshaft Position (CKP) Sensor With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	W701542	Heat shield nut
2	W701669	Heat shield bolt
3	6K342	Heat shield
4	6C070	Rubber grommet cover
5	-	Crankshaft Position (CKP) sensor electrical connector (part of 12A581)
6	6D327	CKP sensor bolt
7	6C315	CKP sensor
