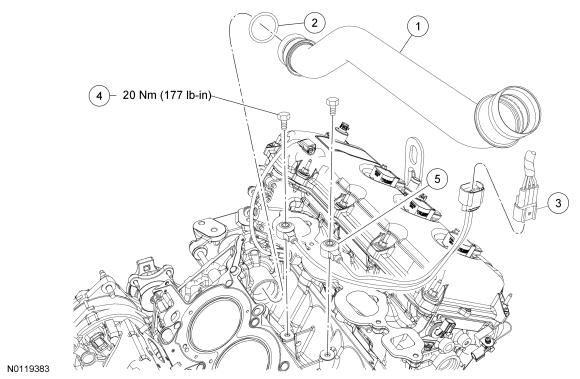

Exploded View Of Knock Sensor (KS)
NOTE:
The thermostat housing must be removed to service the Knock Sensor (KS). For additional information, refer to
Engine Cooling
.
NOTE:
The lower intake manifold must be removed to service the Knock Sensor (KS). For additional information, refer to
Engine 3.7L
for 3.7L engines.
NOTE:
Remove and discard the coolant tube O-ring seal. Install a new O-ring seal and lubricate it with clean engine coolant before installing the coolant tube.
| Item | Part Number | Description |
|---|---|---|
| 1 | 9N271 | Coolant tube |
| 2 | 8565 | Coolant tube O-ring seal |
| 3 | - | Knock Sensor (KS) electrical connector (part of 12A581) |
| 4 | W704749 | KS bolt (2 required) |
| 5 | 12A699 | KS |
