Exploded View Of Mass Air Flow (MAF) Sensor

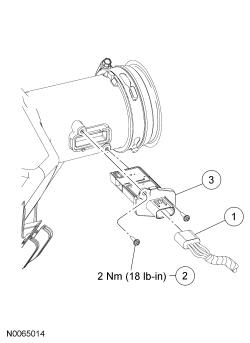

Fig 1: Exploded View Of Mass Air Flow (MAF) Sensor With Torque Specifications
GFD97904Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 - Mass Air Flow (MAF) sensor electrical connector (part of 14290)
2 W709287 MAF sensor screw (2 required)
3 12B579 MAF sensor
