Exploded View Of PCM

NOTE: The module configuration must be retrieved before the PCM is removed. Carry out the module configuration retrieval steps of the Programmable Module Installation (PMI) procedure.

NOTE: If the Programmable Module Installation (PMI) procedure was not successful in downloading the data from the vehicles original PCM, then the oil life data of the vehicle is lost. If this occurs, and the oil life cannot be determined through service history or customer interview, it is recommended the vehicle engine oil and filter be changed and the oil change minder reset.

NOTE: After the PCM is installed, the module configuration must be restored. Carry out the module configuration restore steps of the Programmable Module Installation (PMI) procedure.

NOTE: After the PCM is installed, the Passive Anti-Theft System (PATS) must be reprogrammed. Carry out the Parameter Reset procedure. For additional information, refer to Anti-Theft Passive Anti-Theft System (PATS) .

NOTE: After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.

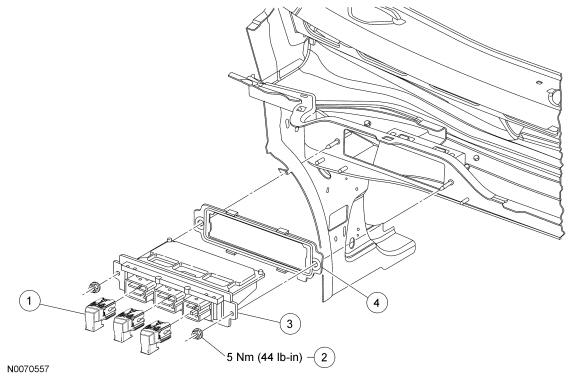

Fig 1: Exploded View Of PCM With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	-	PCM electrical connector (part of 12A581) (3 required)
2	N804795	PCM nut (2 required)
3	12A650	PCM
4	12A696	PCM gasket
