Connector End View C110 - Inline
InlineC110
Description
Inline
Color
Base Part #
Service Pigtail
Not Available

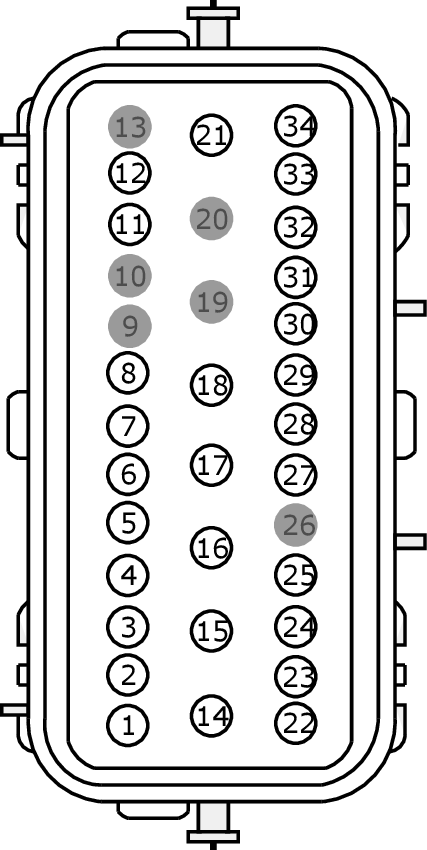

MALE
Harness 14B060

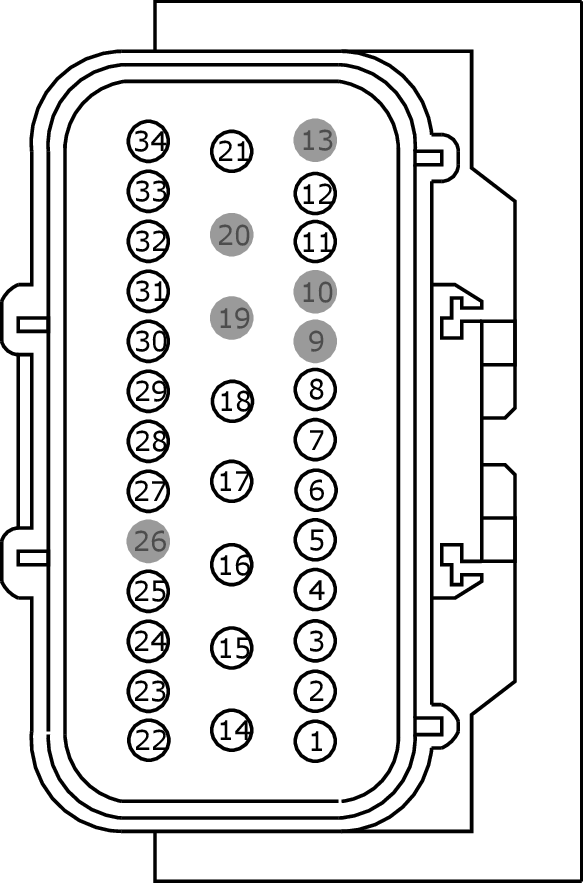

FEMALE
Harness 14290
| Pin | Circuit | Gauge | Qualifier |
| 1 | CET34 (BN-GN) | 20 | 14290 - 2.0L GTDI |
| 1 | CET34 (BN-GN) | 20 | 14B060 - 2.0L GTDI |
| 2 | CBB92 (GN-WH) | 20 | |
| 3 | CBB92 (GN-WH) | 20 | |
| 4 | SBB56 (VT-RD) | 18 | 14290 - 2.0L GTDI |
| 4 | SBB56 (VT-RD) | 18 | 14B060 - 2.0L GTDI |
| 5 | SBB58 (YE-RD) | 20 | |
| 6 | CBB91 (BN) | 20 | 2.0L GTDI |
| 7 | CDC15 (VT) | 20 | |
| 8 | CDC10 (BU-OG) | 20 | |
| 9 | * | * | |
| 10 | * | * | |
| 11 | CE234 (BU-WH) | 18 | 3.5L/3.7L TIVCT |
| 12 | VE733 (WH) | 18 | 3.5L/3.7L TIVCT |
| 13 | * | * | |
| 14 | SBB43 (BU-RD) | 16 | |
| 15 | SBB43 (BU-RD) | 16 | |
| 16 | SBB05 (GY-RD) | 12 | |
| 17 | CDC25 (BN-GN) | 14 | |
| 18 | SBB05 (GY-RD) | 12 | |
| 19 | * | * | |
| 20 | * | * | |
| 21 | GD121 (BK-YE) | 10 | 14290 |
| 21 | GD121 (BK-YE) | 16 | 14B060 |
| 22 | VE731 (YE-GN) | 18 | 3.5L/3.7L TIVCT |
| 23 | CBB90 (YE-OG) | 20 | 2.0L GTDI |
| 24 | VDB04 (WH-BU) | 20 | 14290 |
| 24 | VDB04 (WH-BU) | 20 | 14B060 - 2.0L GTDI |
| 25 | VDB05 (WH) | 20 | 14290 |
| 25 | VDB05 (WH) | 20 | 14B060 - 2.0L GTDI |
| 26 | * | * | |
| 27 | CBB70 (YE-BU) | 20 | 2.0L GTDI |
| 28 | CE233 (WH-OG) | 18 | 3.5L/3.7L TIVCT |
| 29 | CET40 (GN-OG) | 20 | 2.0L GTDI |
| 30 | CH401 (VT-WH) | 20 | |
| 31 | VE462 (WH-BN) | 20 | 2.0L GTDI |
| 32 | GD120 (BK-GN) | 16 | 2.0L GTDI |
| 33 | GD120 (BK-GN) | 20 | 2.0L GTDI |
| 34 | CET45 (YE-BU) | 20 | 2.0L GTDI |
