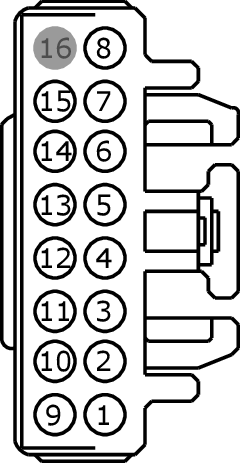

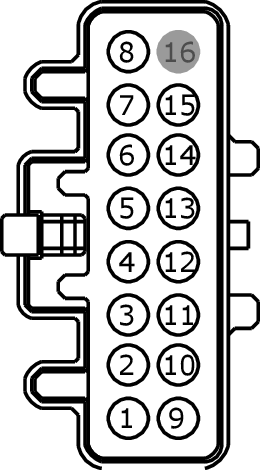

Connector End View C264 - Inline
InlineC264
Description
Inline
Color
GN
Base Part #
Service Pigtail
Not Available
MALE
Harness 19C603
FEMALE
Harness 14401
| Pin | Circuit | Gauge | Qualifier |
| 1 | * (BK) | * | 19C603 |
| 1 | RH111 (GY-BU) | 22 | 14401 |
| 2 | * (*) | * | 19C603 - 2.0L GTDI |
| 2 | * (BN) | * | 19C603 - 3.5L/3.7L TIVCT |
| 2 | CH207 (BU-GY) | 22 | 14401 |
| 3 | * (*) | * | 19C603 - 2.0L GTDI |
| 3 | * (GN) | * | 19C603 - 3.5L/3.7L TIVCT |
| 3 | CH208 (GN-OG) | 22 | 14401 |
| 4 | * (*) | * | 19C603 - 2.0L GTDI |
| 4 | * (GY) | * | 19C603 - 3.5L/3.7L TIVCT |
| 4 | CBP37 (WH) | 22 | 14401 - 3.5L/3.7L TIVCT |
| 4 | VH438 (GN-VT) | 22 | 14401 - 2.0L GTDI |
| 5 | * (GY-BK) | * | 19C603 |
| 5 | CH228 (YE-GY) | 22 | 14401 |
| 6 | * (BU) | * | 19C603 |
| 6 | CH229 (WH-BU) | 22 | 14401 |
| 7 | * (BU-RD) | * | 19C603 |
| 7 | VH436 (YE-VT) | 22 | 14401 |
| 8 | * (LG-BK) | * | 19C603 |
| 8 | VH406 (VT-BN) | 22 | 14401 |
| 9 | * (OG) | * | 19C603 |
| 9 | LH111 (BN-WH) | 22 | 14401 |
| 10 | * (OG-BK) | * | 19C603 |
| 10 | CH212 (BU-OG) | 22 | 14401 - with Dual Zone |
| 10 | CH238 (YE-OG) | 22 | 14401 - with Single Zone |
| 11 | * (VT) | * | 19C603 |
| 11 | CH213 (BN-GN) | 22 | 14401 - with Dual Zone |
| 11 | CH239 (BU-WH) | 22 | 14401 - with Single Zone |
| 12 | * (RD) | * | 19C603 |
| 12 | VH440 (BU-BN) | 22 | 14401 - with Single Zone |
| 12 | VH441 (WH-BN) | 22 | 14401 - with Dual Zone |
| 13 | * (RD-YE) | * | 19C603 |
| 13 | CH238 (YE-OG) | 22 | 14401 - with Dual Zone |
| 14 | * (WH) | * | 19C603 |
| 14 | CH239 (BU-WH) | 22 | 14401 - with Dual Zone |
| 15 | * (YE) | * | 19C603 |
| 15 | VH440 (BU-BN) | 22 | 14401 - with Dual Zone |
| 16 | * | * |
