Power Window Switch - RH Side Front (Navigator)

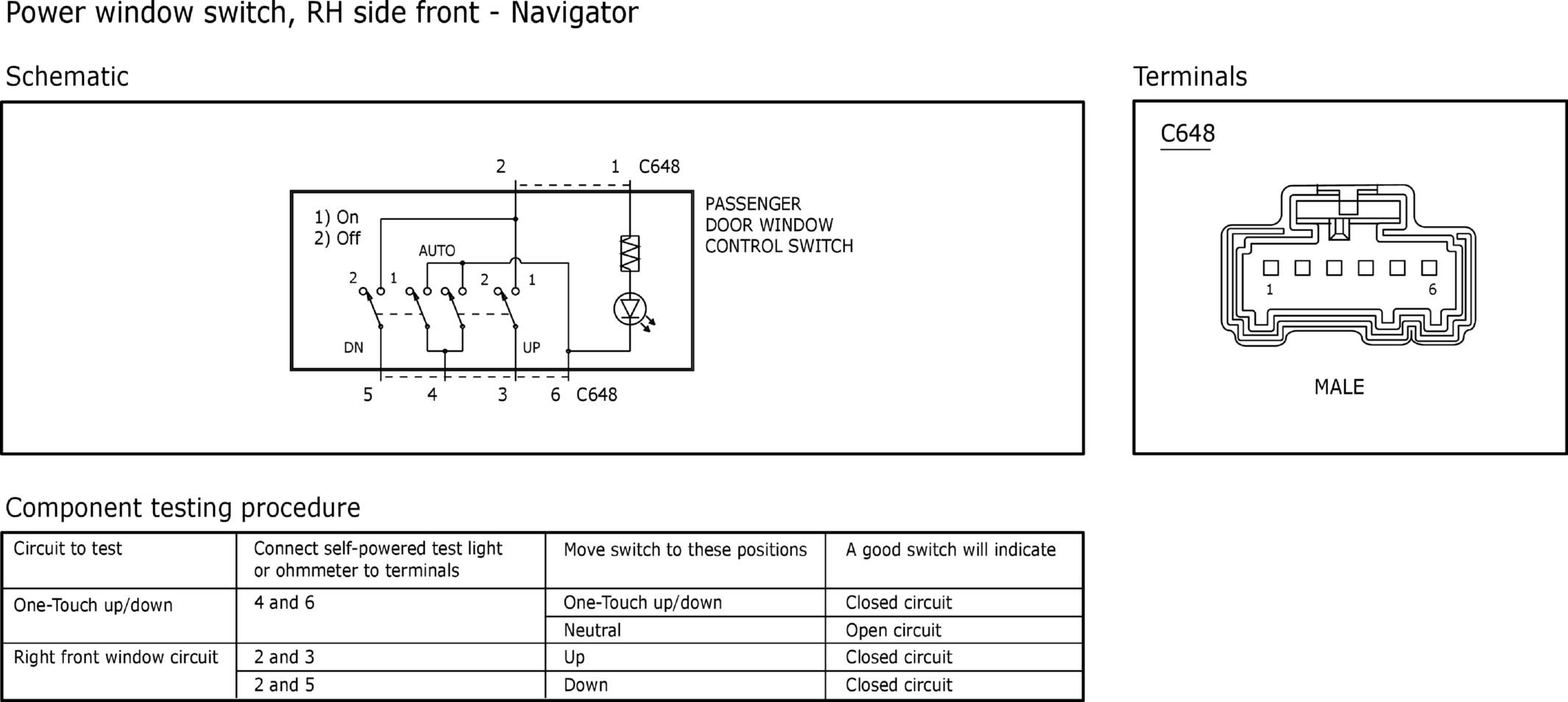

Fig 1: Power Window Switch - RH Side Front (Navigator)

GFDW9753

Courtesy of FORD MOTOR COMPANY
