Master Window Adjust Switch (Navigator)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Master Window Adjust Switch (Navigator)

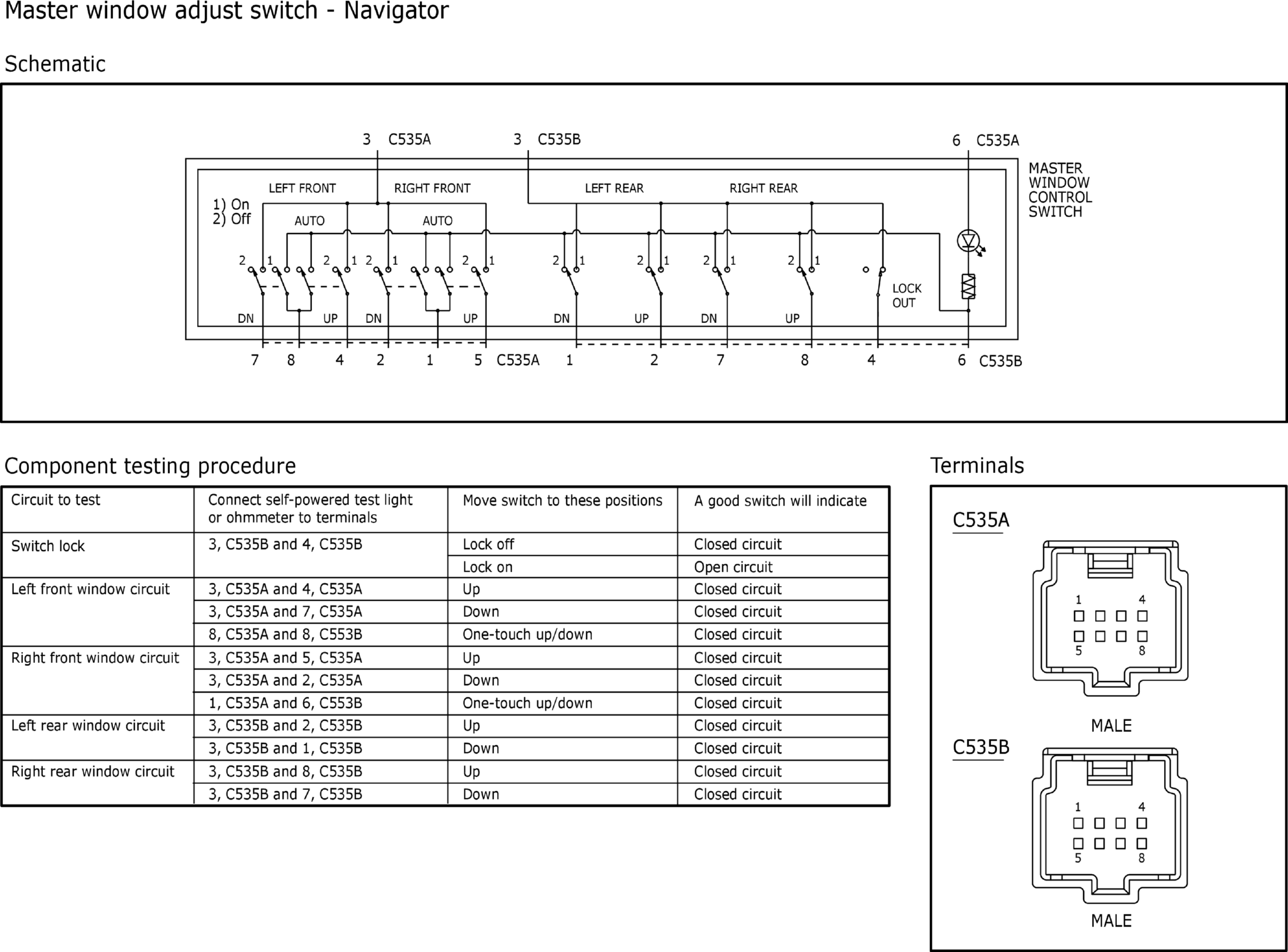

Fig 1: Master Window Adjust Switch (Navigator)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
