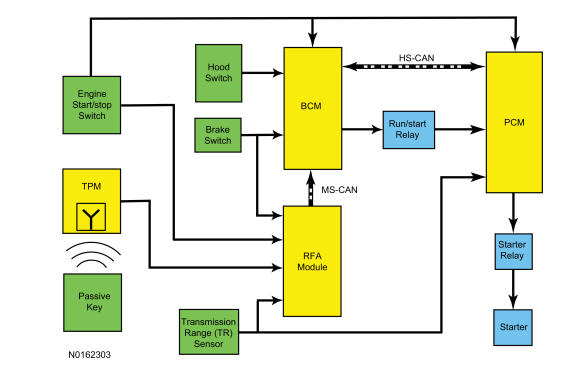

System Diagram

WARNING: This page is about a different car, the 2016 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
GFD30685Courtesy of FORD MOTOR COMPANY
