SYNC Module [APIM] to Front Display Interface Module (FDIM) Cable

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

Remove the Front Display Interface Module (FDIM). Refer to Front Display Interface Module (FDIM) .

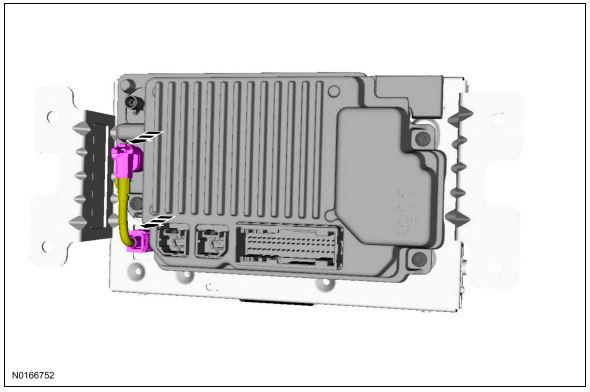

Disconnect the electrical connectors and remove the Accessory Protocol Interface Module (APIM) to FDIM cable.

Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
