Roof Opening Panel Control Switch

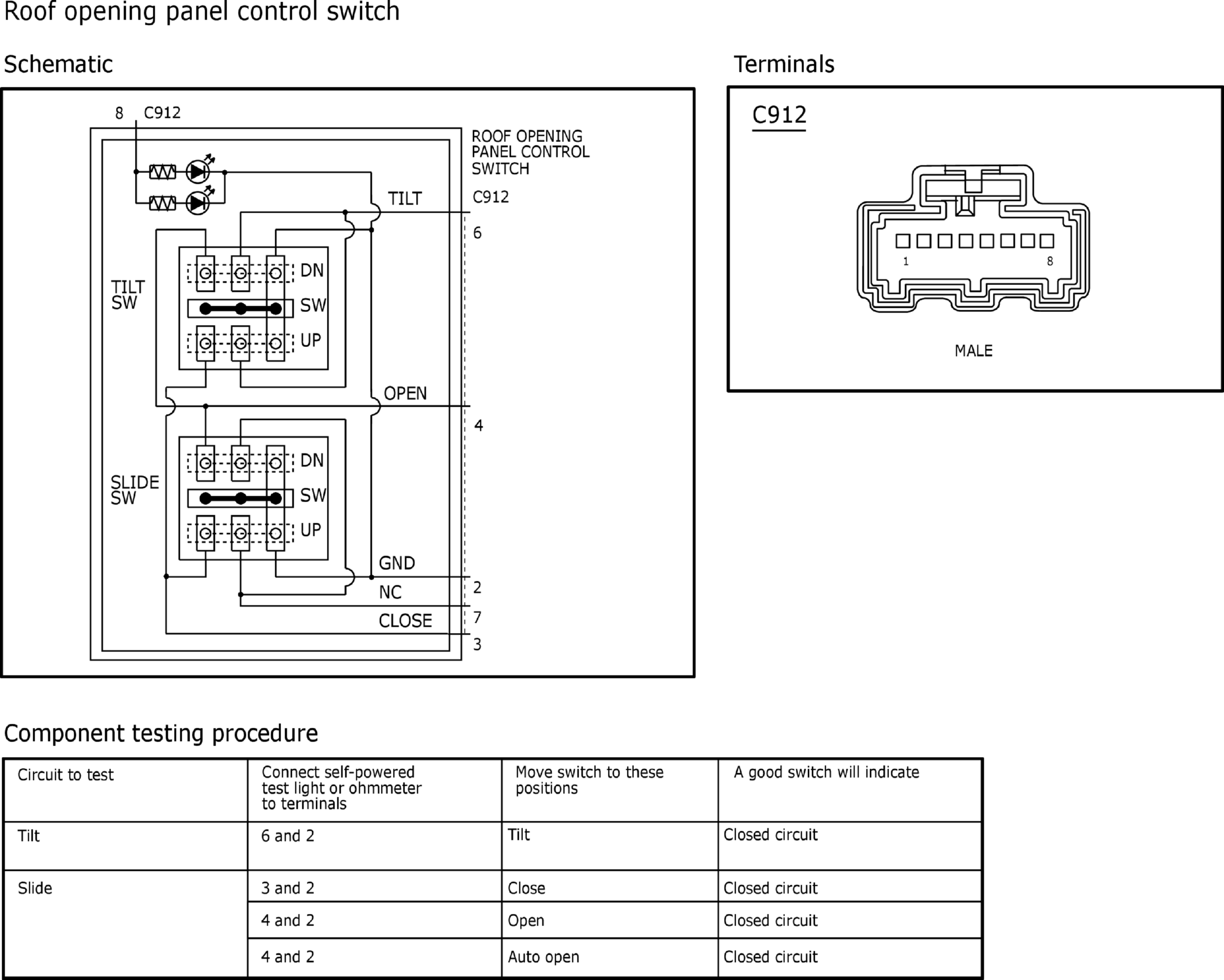

Fig 1: Roof Opening Panel Control Switch
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
