Seat Control Switch, Second Row
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Seat Control Switch, Second Row

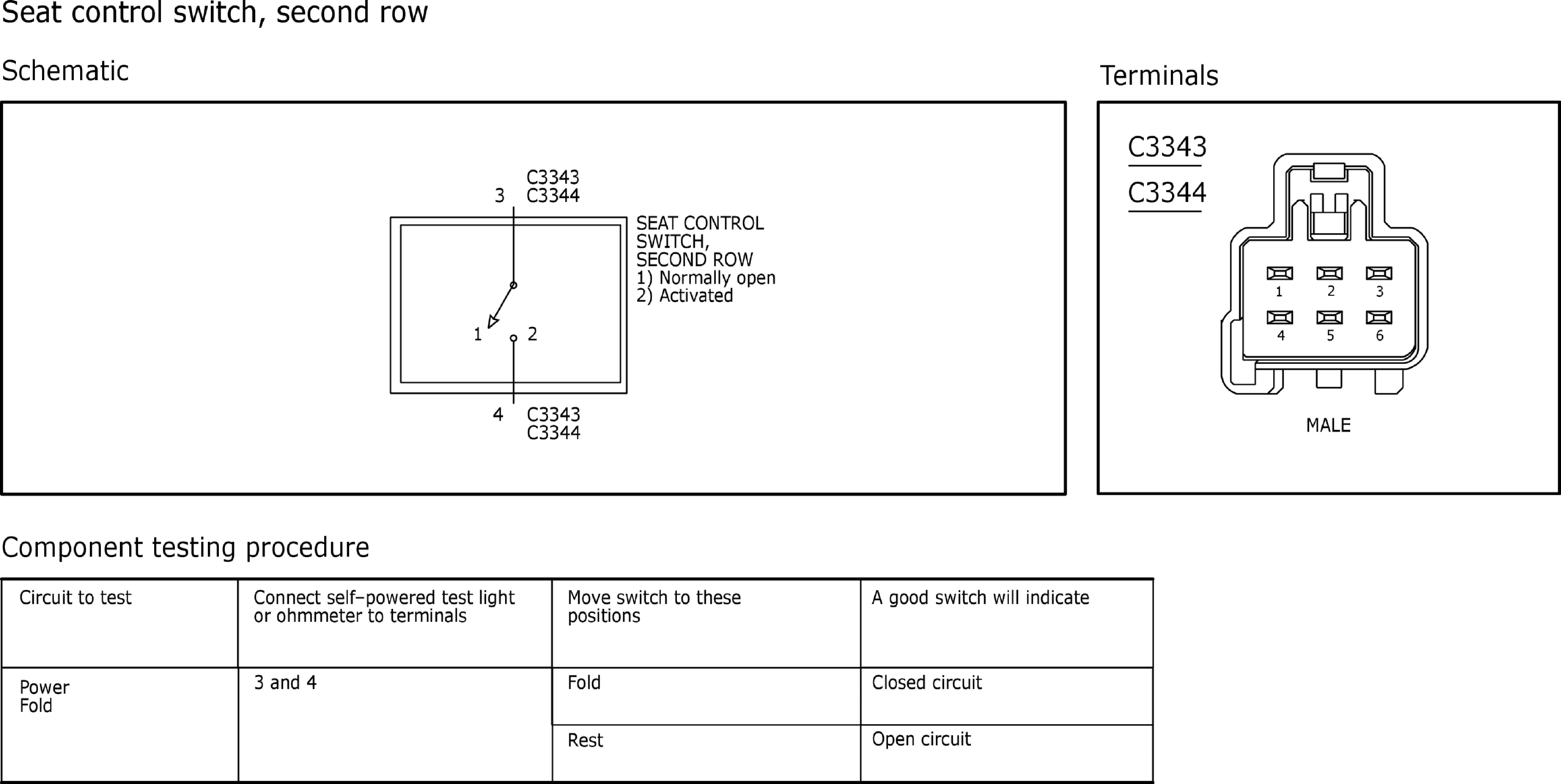

Fig 1: Seat Control Switch, Second Row
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
