OEM Ground Distribution: Grounds

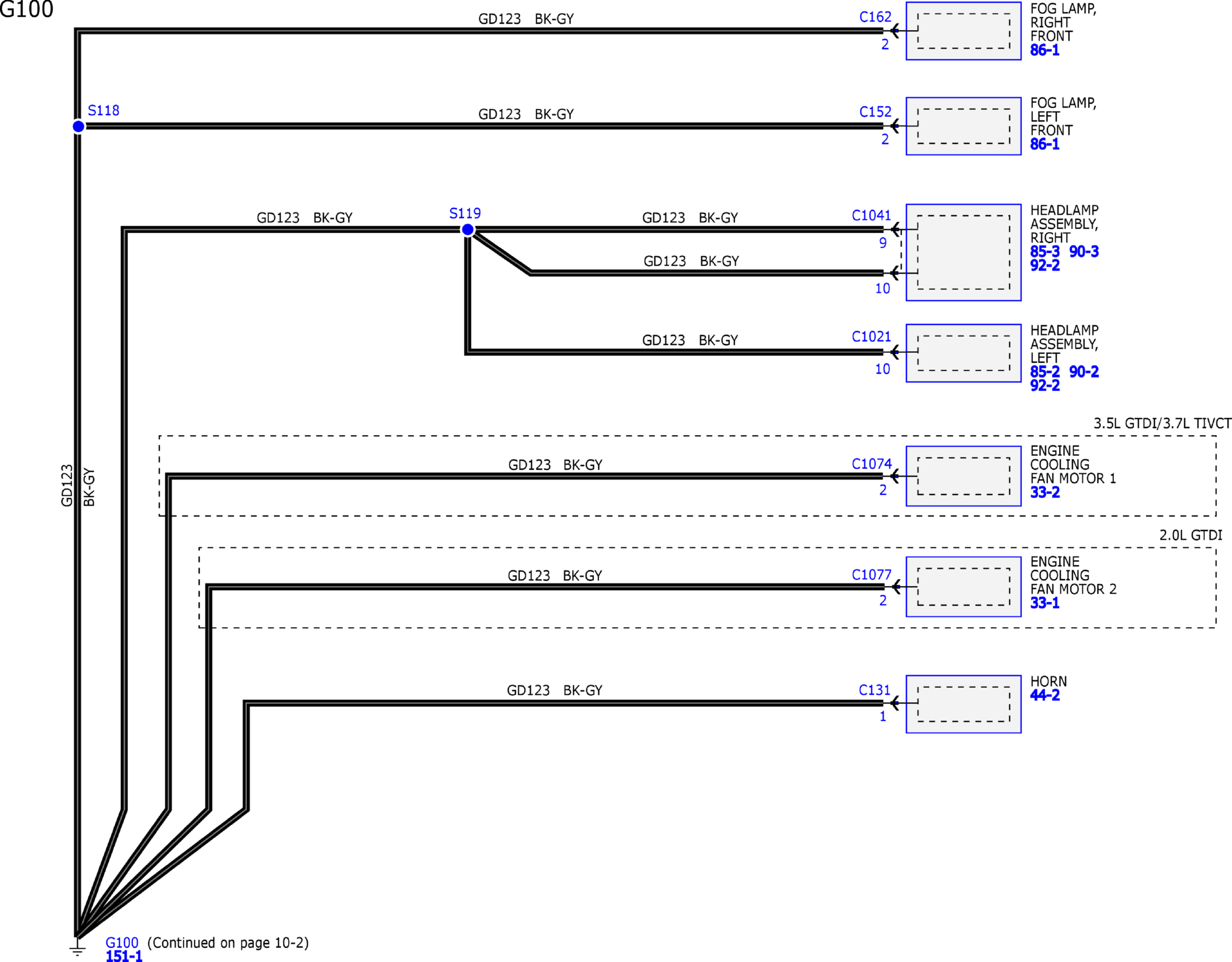

GFDW35853Courtesy of FORD MOTOR COMPANY

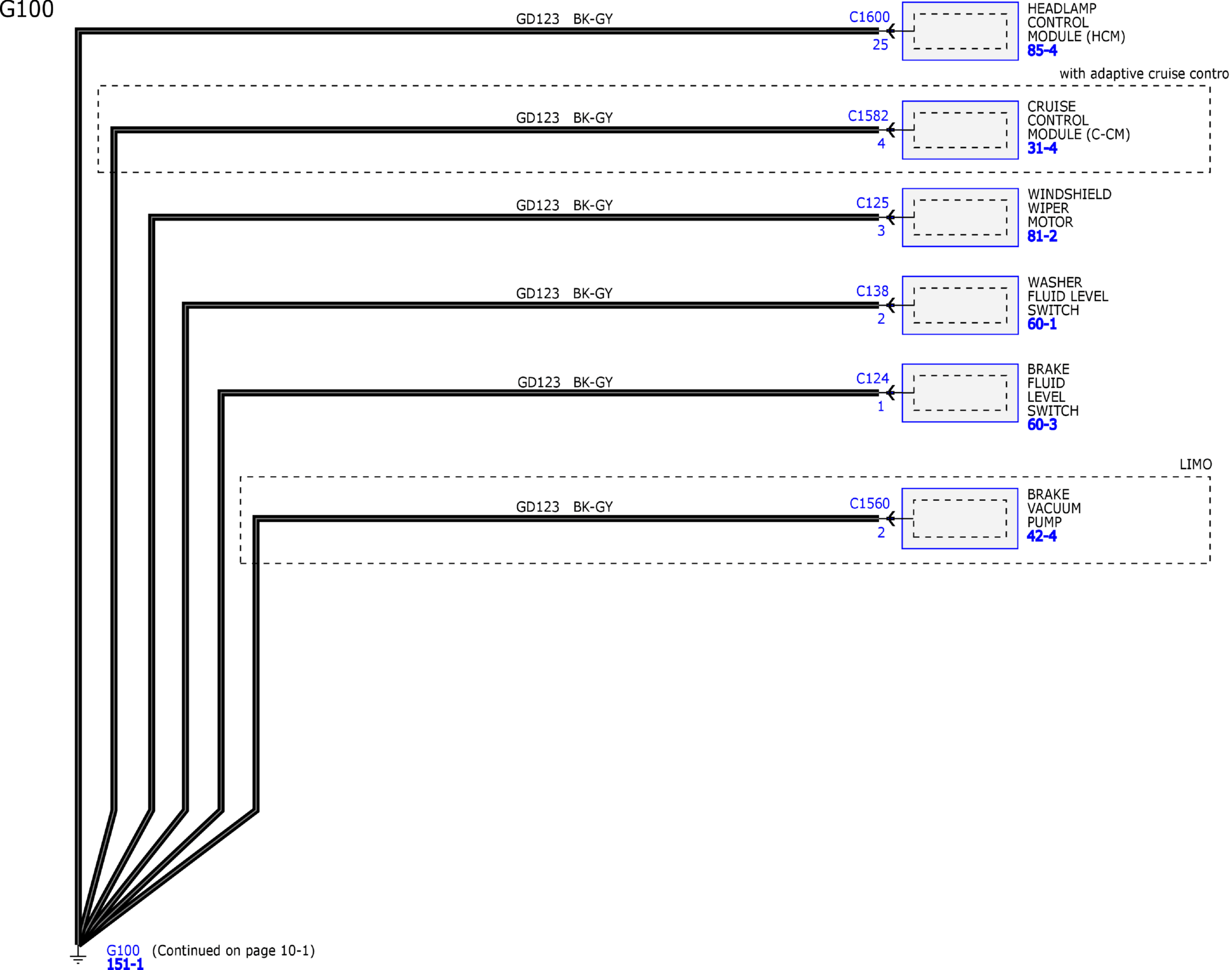

GFDW35854Courtesy of FORD MOTOR COMPANY
GFDW35855Courtesy of FORD MOTOR COMPANY

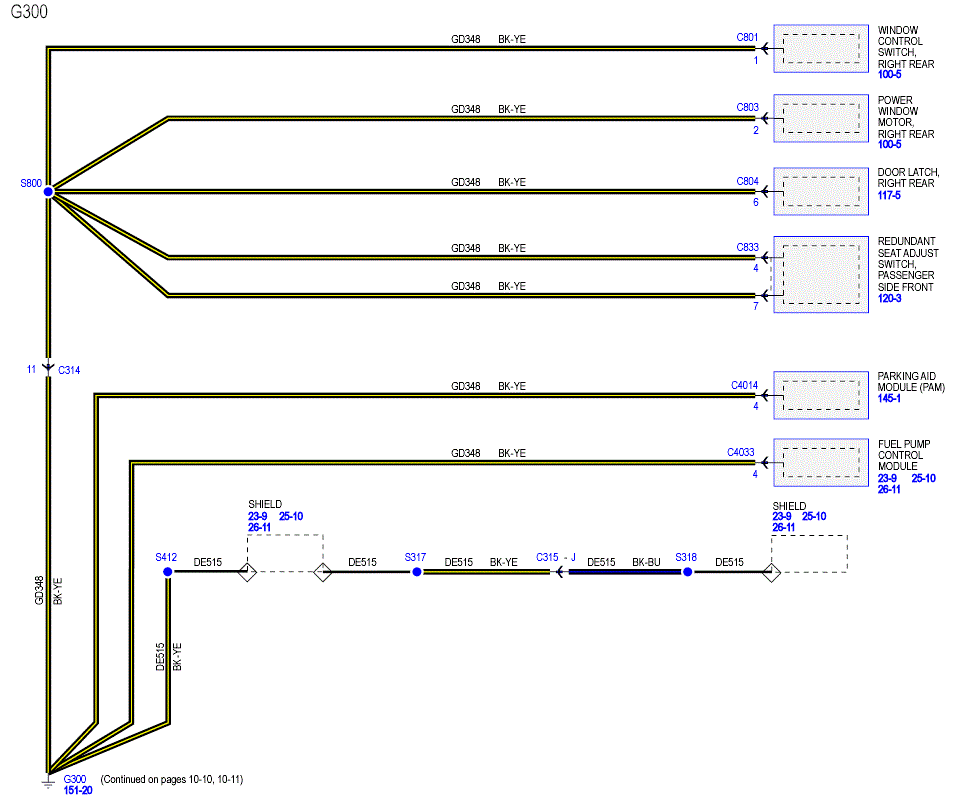

G00566240Courtesy of FORD MOTOR CO.

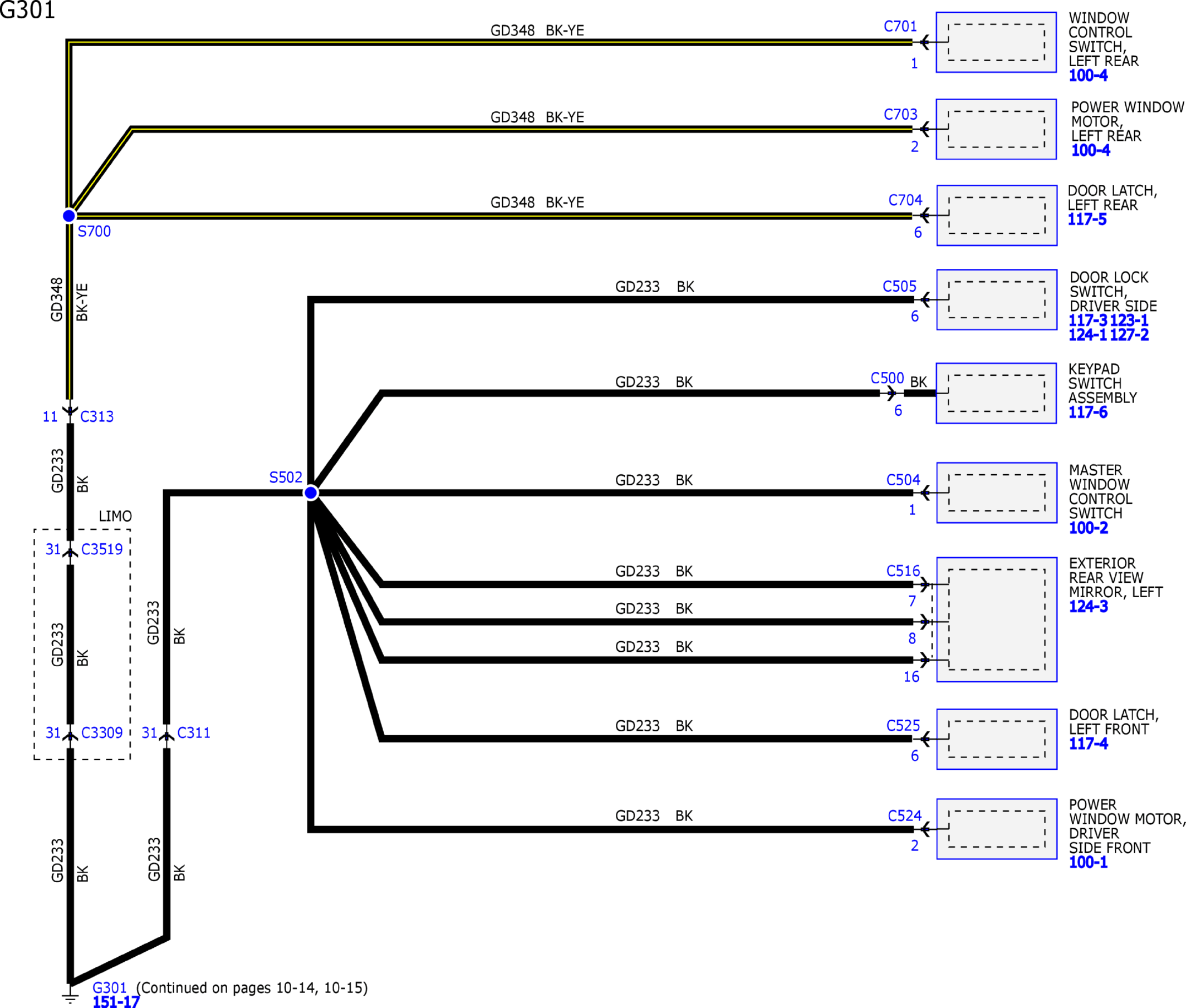

GFDW35857Courtesy of FORD MOTOR COMPANY

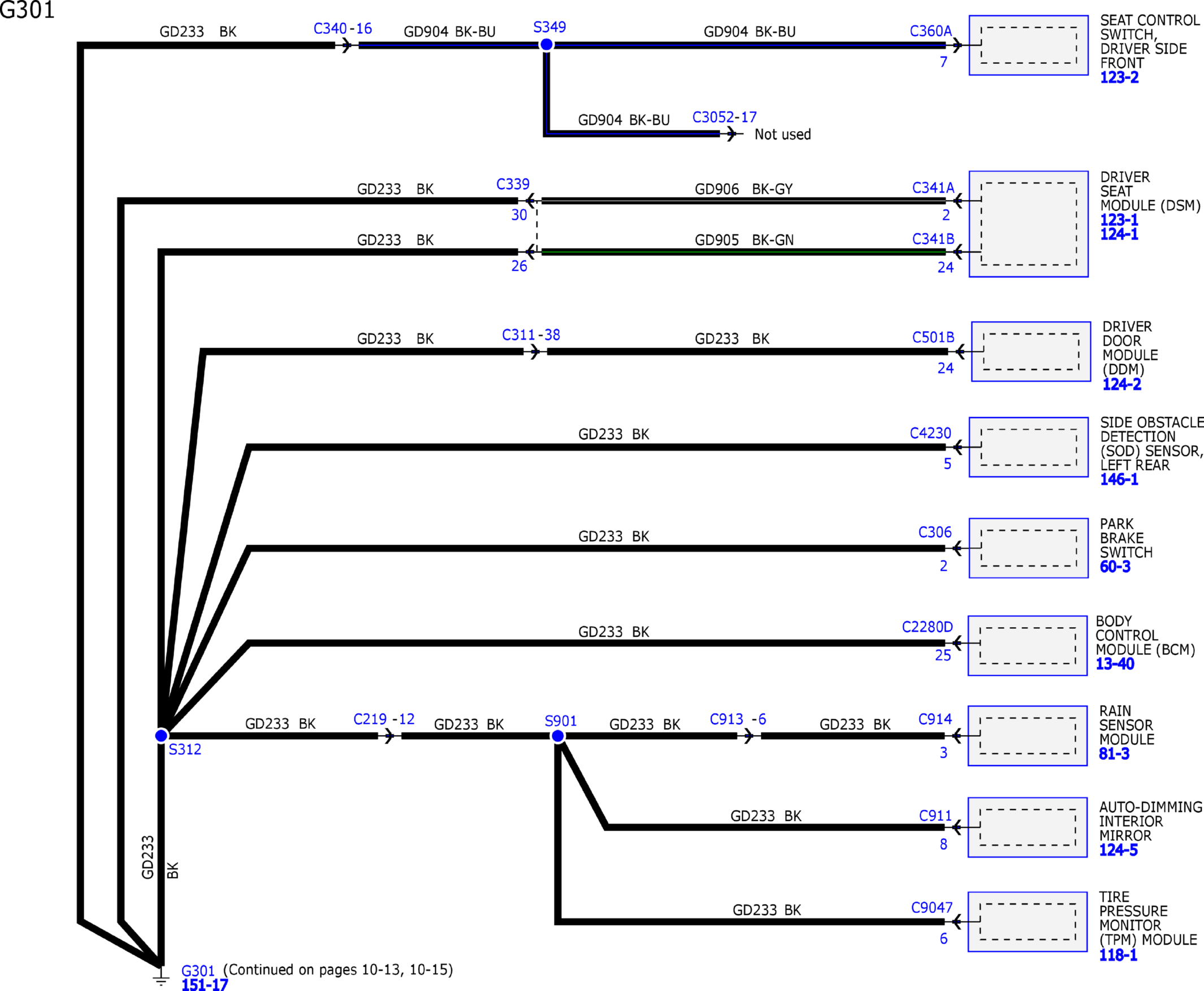

GFDW35858Courtesy of FORD MOTOR COMPANY

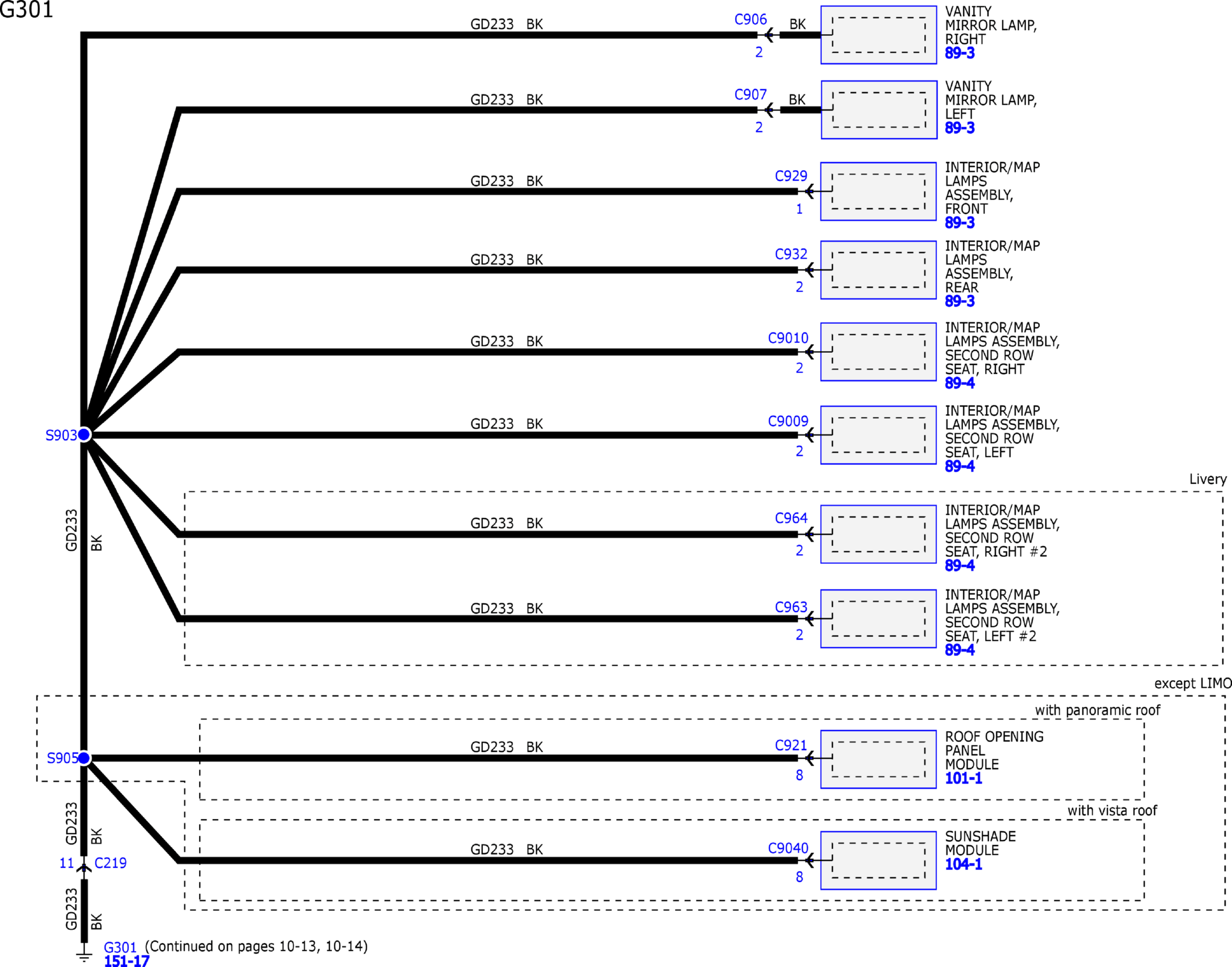

GFDW35859Courtesy of FORD MOTOR COMPANY

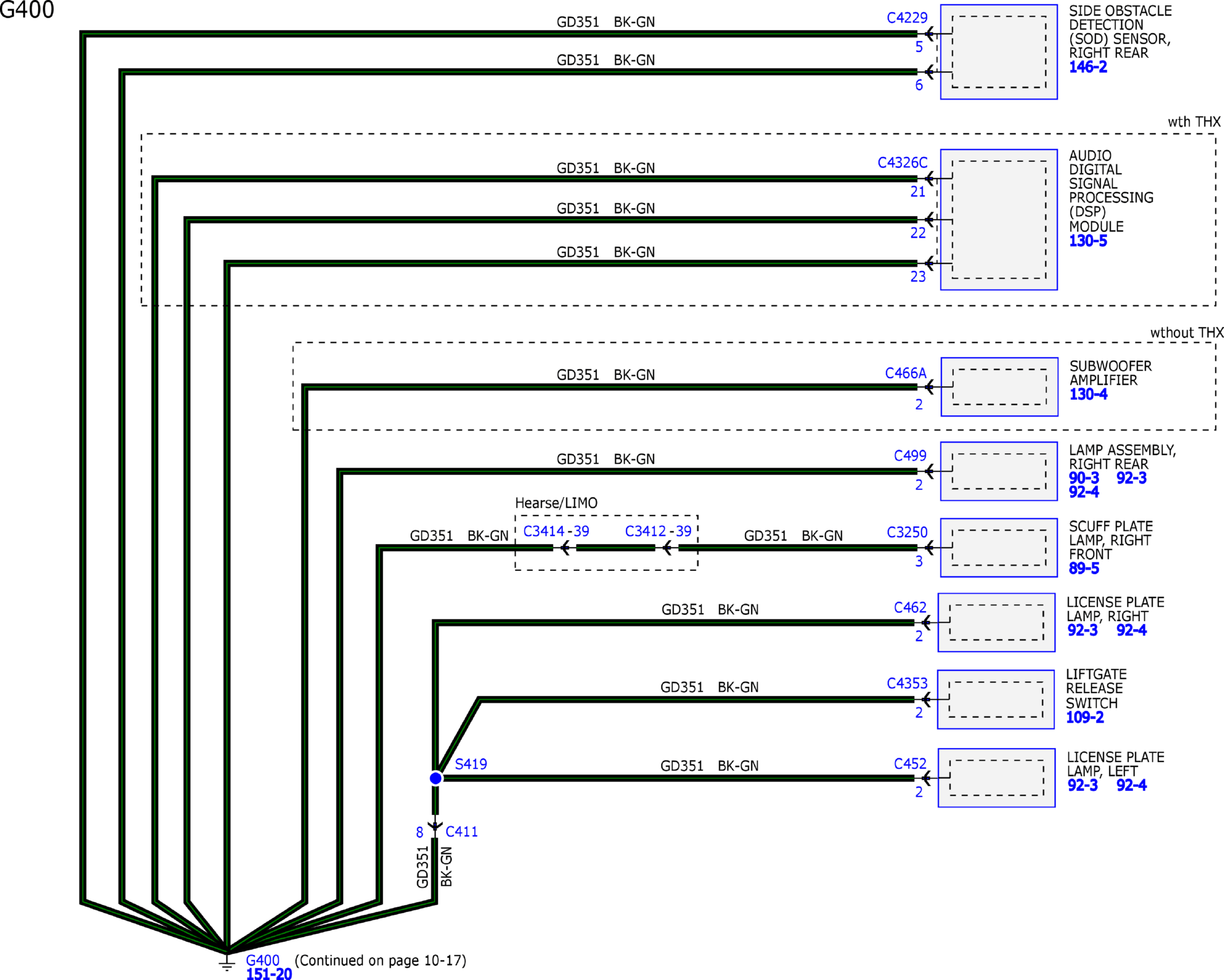

GFDW35860Courtesy of FORD MOTOR COMPANY

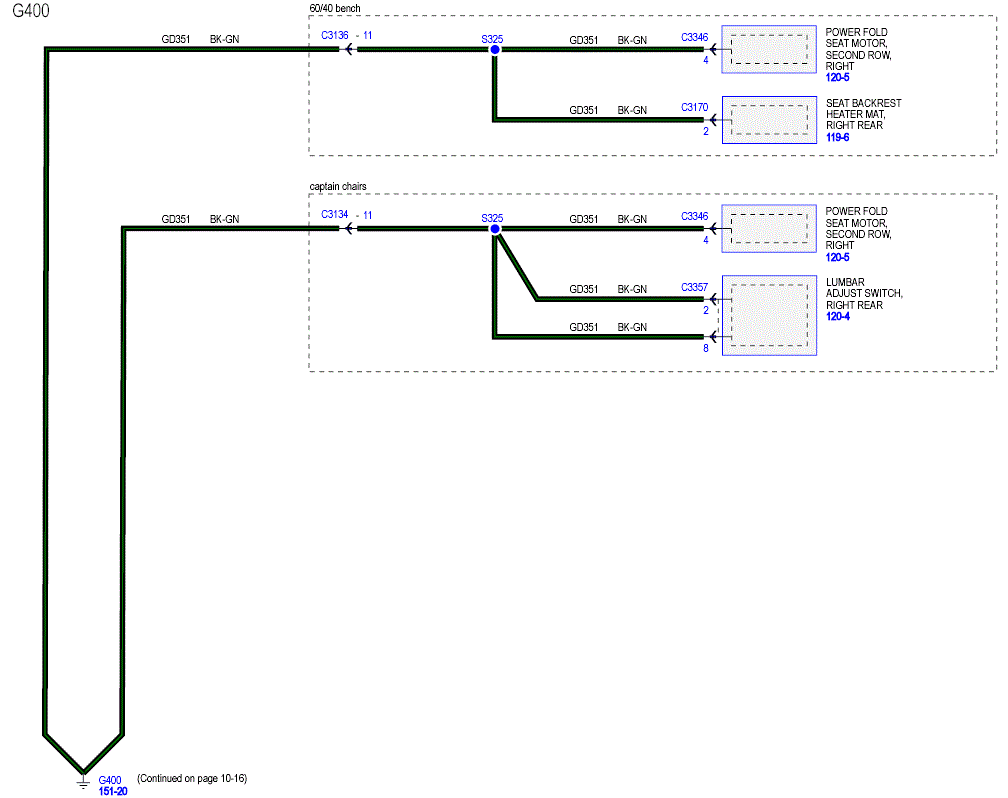

G00566241Courtesy of FORD MOTOR CO.
GFDW35862Courtesy of FORD MOTOR COMPANY

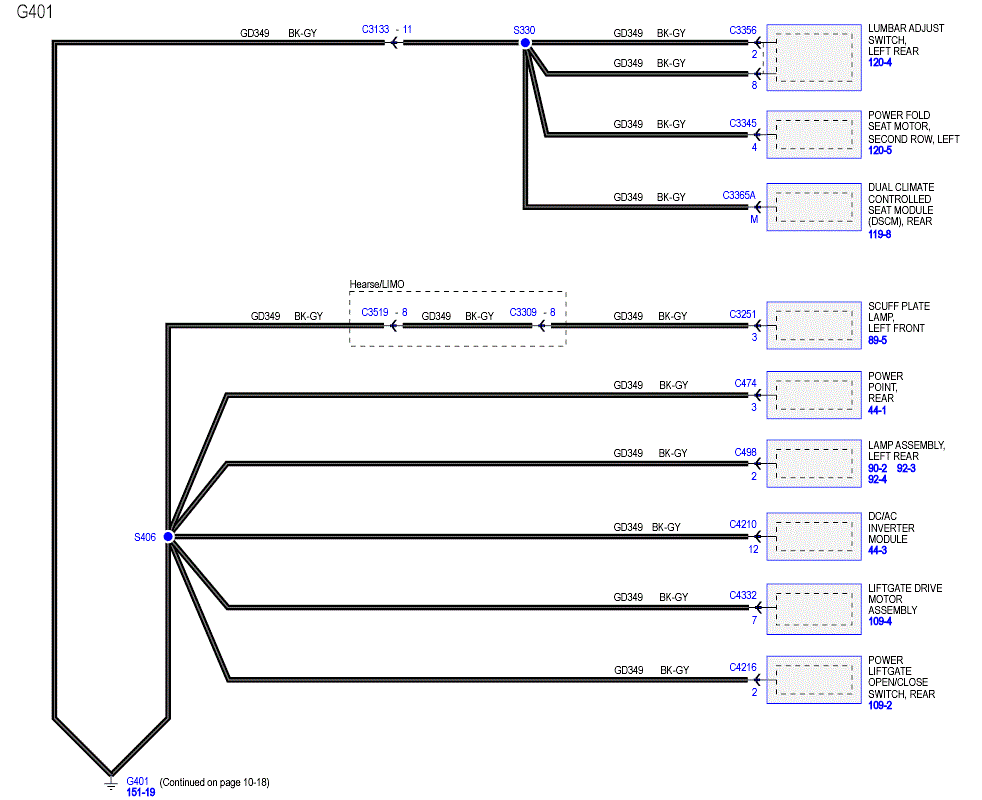

G00566242Courtesy of FORD MOTOR CO.

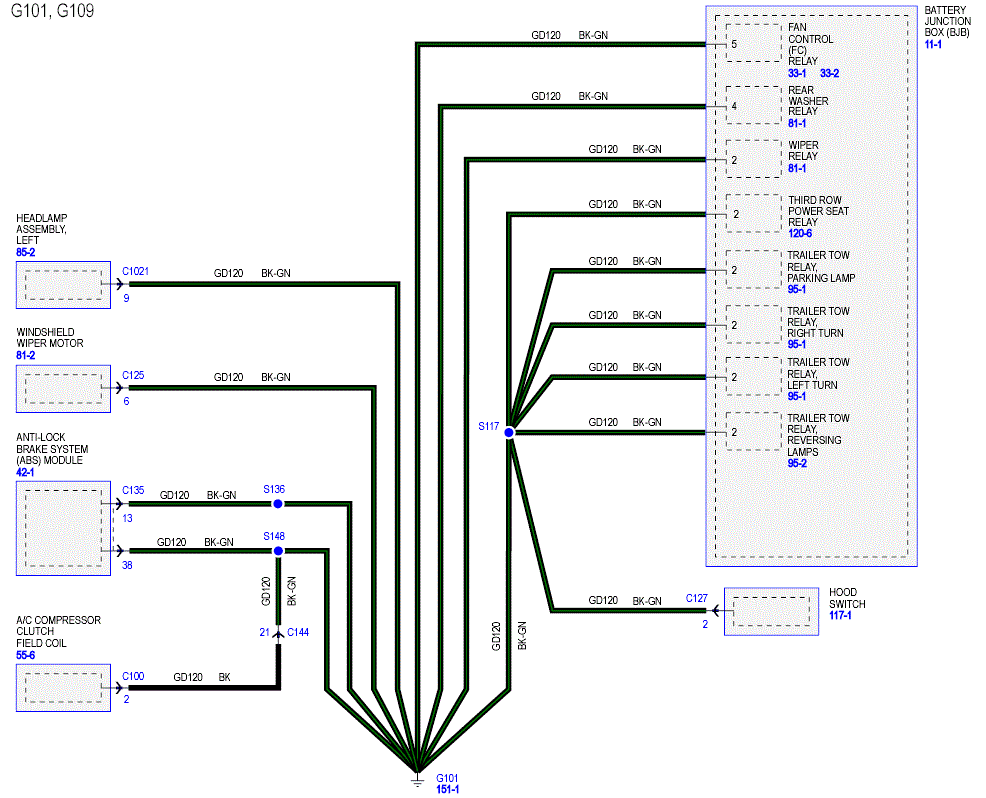

G00566237Courtesy of FORD MOTOR CO.

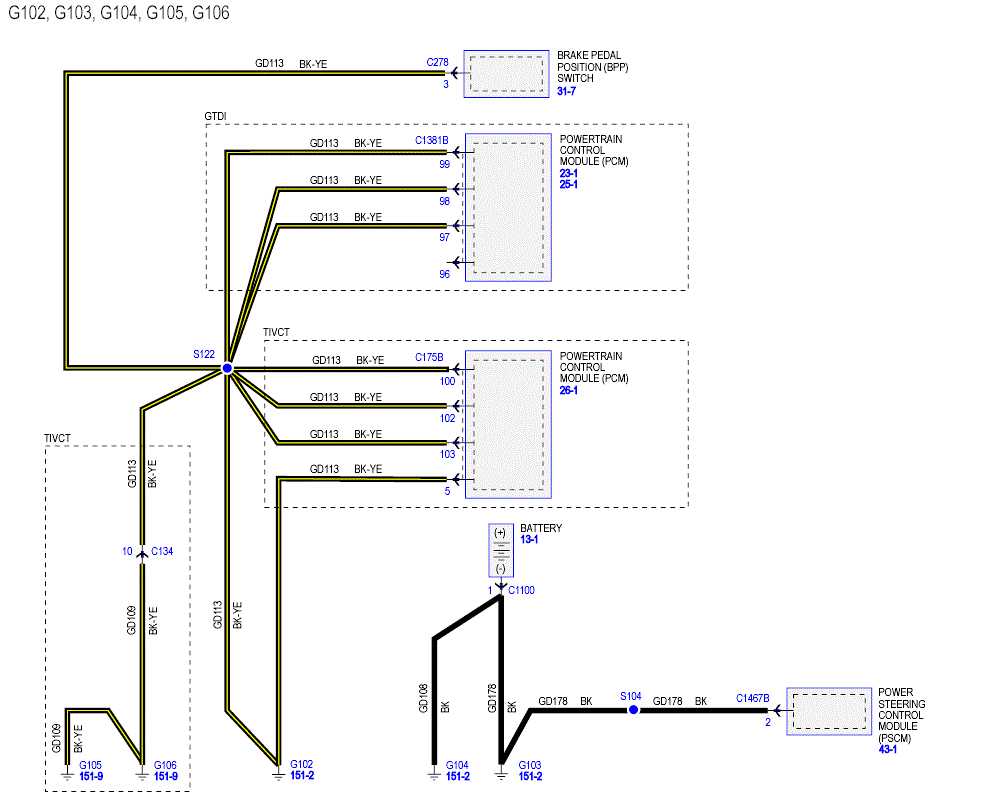

G00566238Courtesy of FORD MOTOR CO.
GFDW35866Courtesy of FORD MOTOR COMPANY
GFDW35867Courtesy of FORD MOTOR COMPANY
GFDW35868Courtesy of FORD MOTOR COMPANY
GFDW35869Courtesy of FORD MOTOR COMPANY
G00566239Courtesy of FORD MOTOR CO.
GFDW35871Courtesy of FORD MOTOR COMPANY
