Starting System

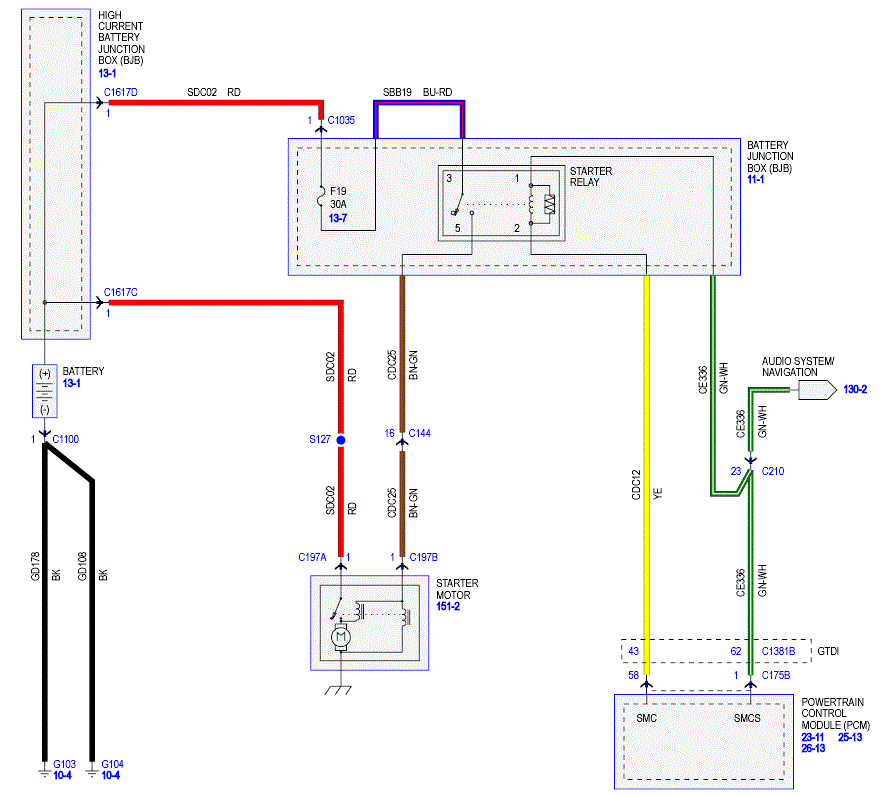

Fig 1: Starting System Wiring Diagram (1 of 2)
G00566187Courtesy of FORD MOTOR CO.

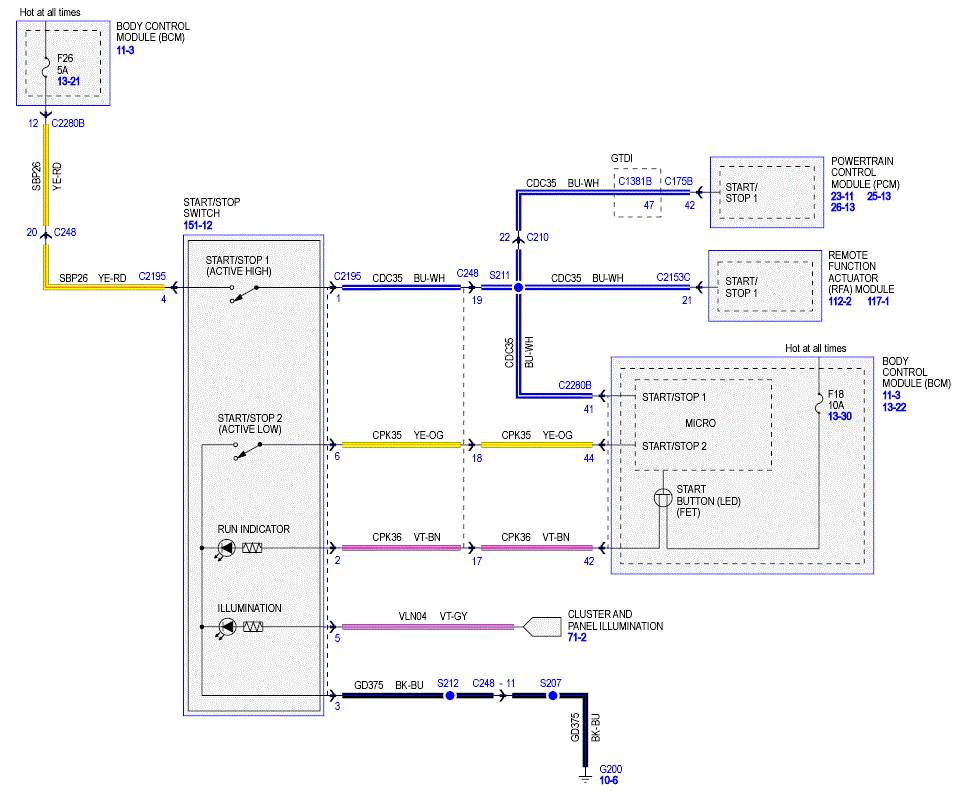

Fig 2: Starting System Wiring Diagram (2 of 2)
G00566188Courtesy of FORD MOTOR CO.
