Body Control Module (BCM): Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

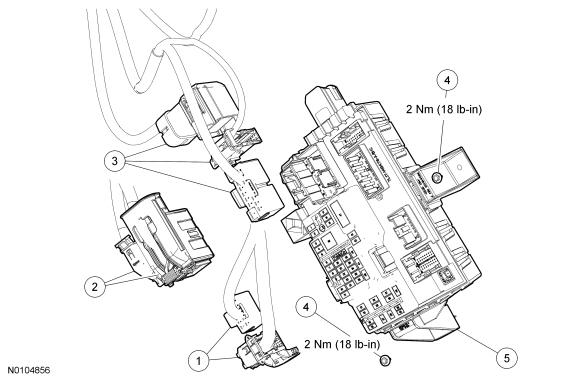

Fig 1: Body Control Module (BCM) Components With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	-	Body Control Module (BCM) electrical connectors (part of 14401)
2	-	BCM electrical connectors (part of 14A005)
3	-	BCM electrical connectors (part of 14290)
2	W706287	BCM bolts (2 required)
3	14B207	BCM
