Instrument Panel Dimmer Switch

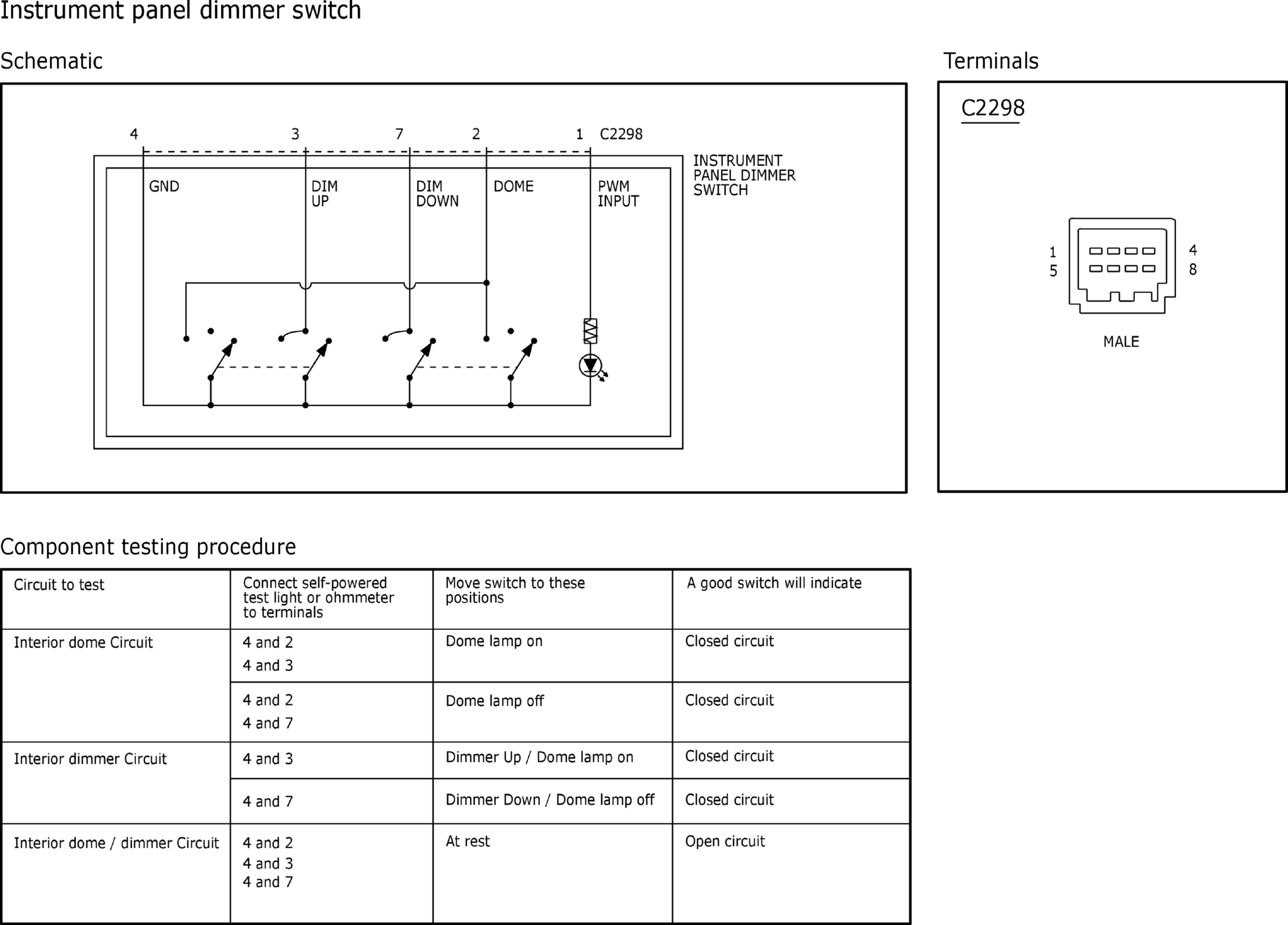

Fig 1: Instrument Panel Dimmer Switch
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
