Power Door Lock Switch

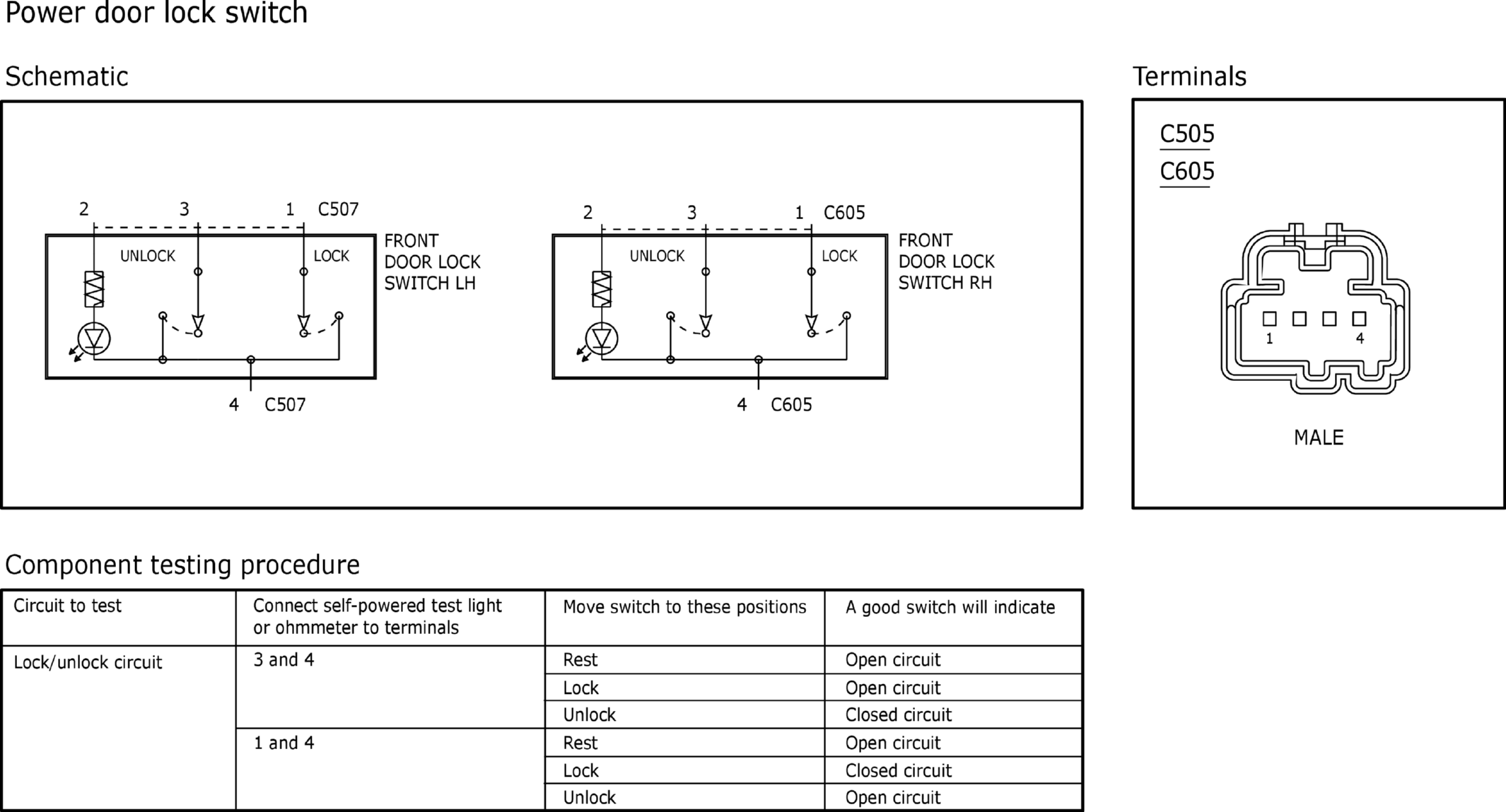

Fig 1: Power Door Lock Switch
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
