Audio System/Navigation - Am/Fm/Cd/Sync/Touchscreen Display

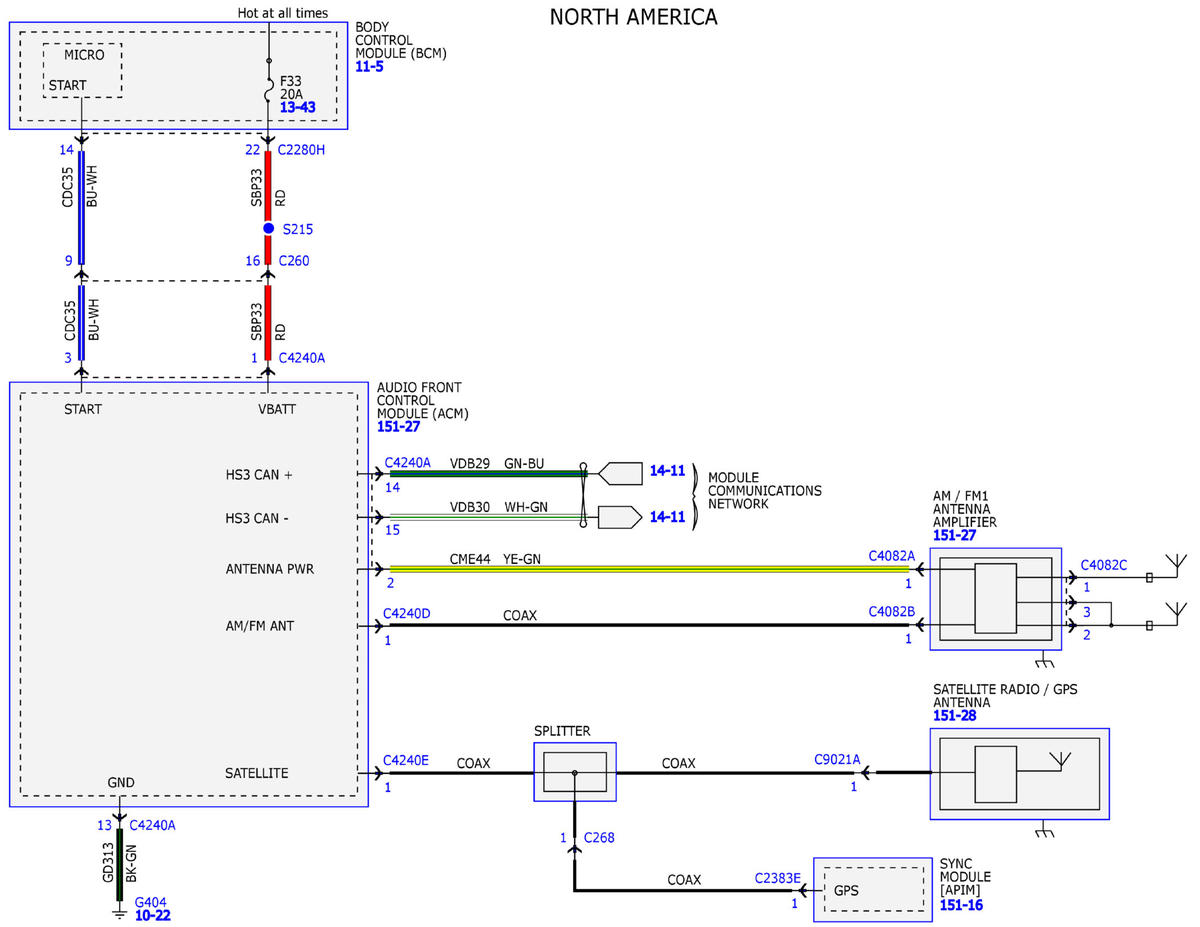

Fig 1: Audio System/Navigation - AM/FM/CD/SYNC/Touchscreen Display Wiring Diagram (1 Of 17)
GFDW93496Courtesy of FORD MOTOR COMPANY

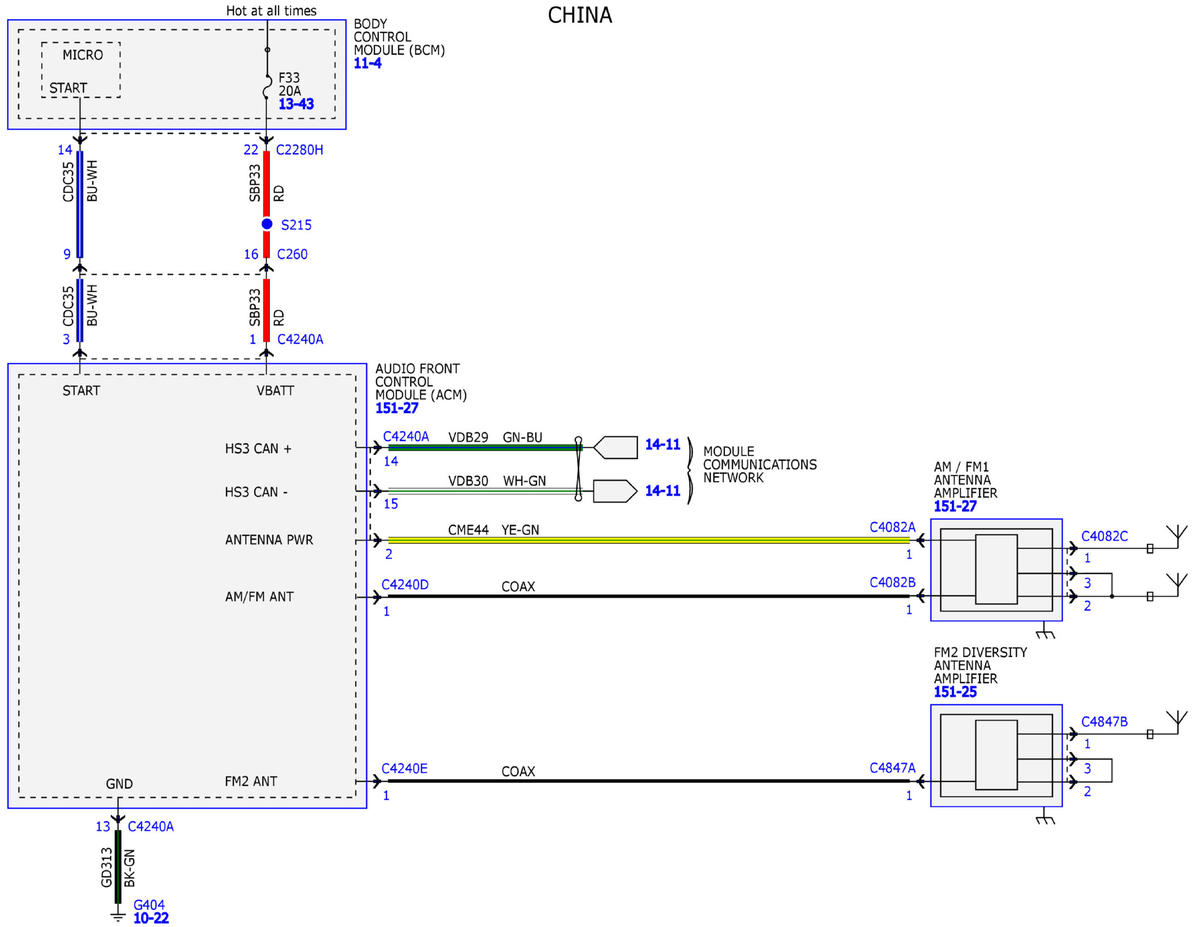

Fig 2: Audio System/Navigation - AM/FM/CD/SYNC/Touchscreen Display Wiring Diagram (2 Of 17)
GFDW93497Courtesy of FORD MOTOR COMPANY

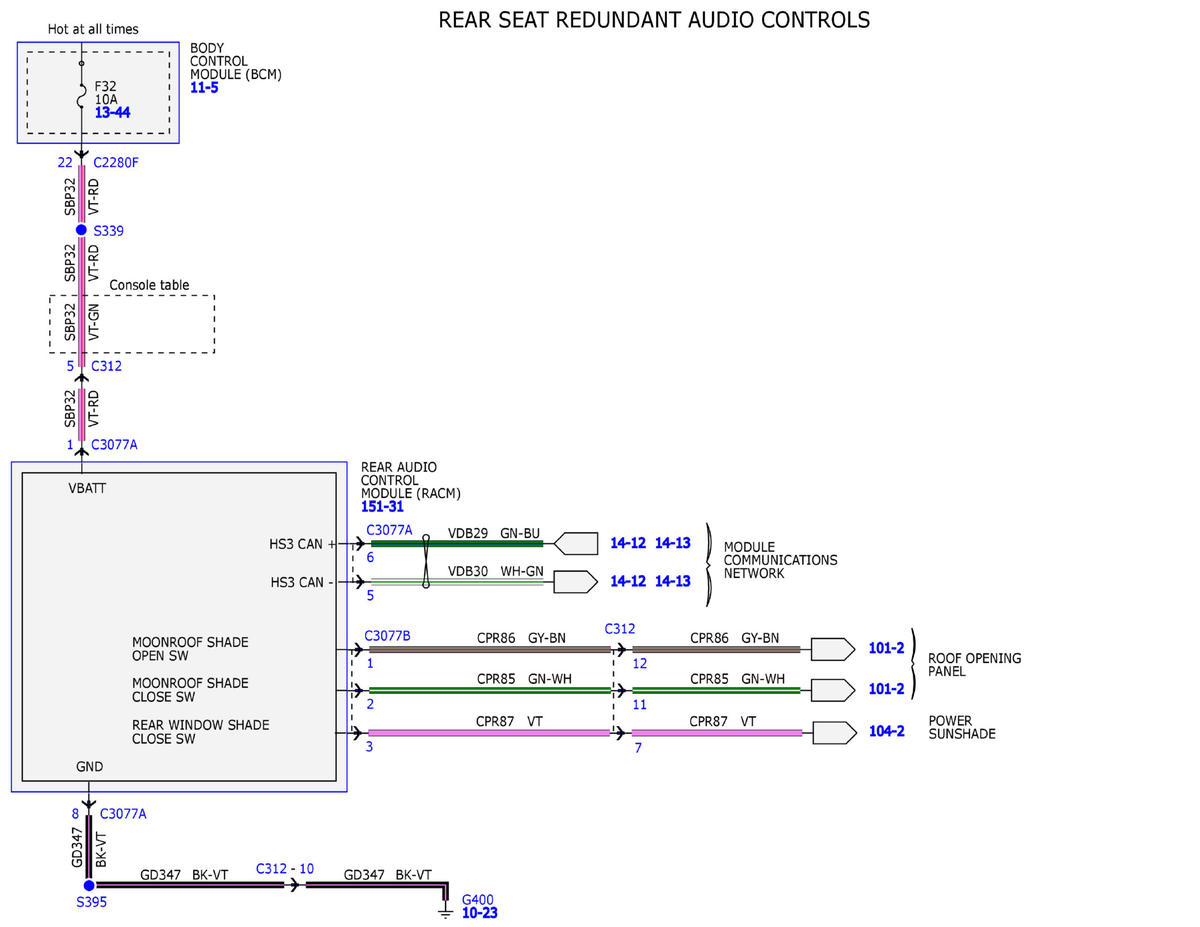

Fig 3: Audio System/Navigation - AM/FM/CD/SYNC/Touchscreen Display Wiring Diagram (3 Of 17)
GFDW93498Courtesy of FORD MOTOR COMPANY

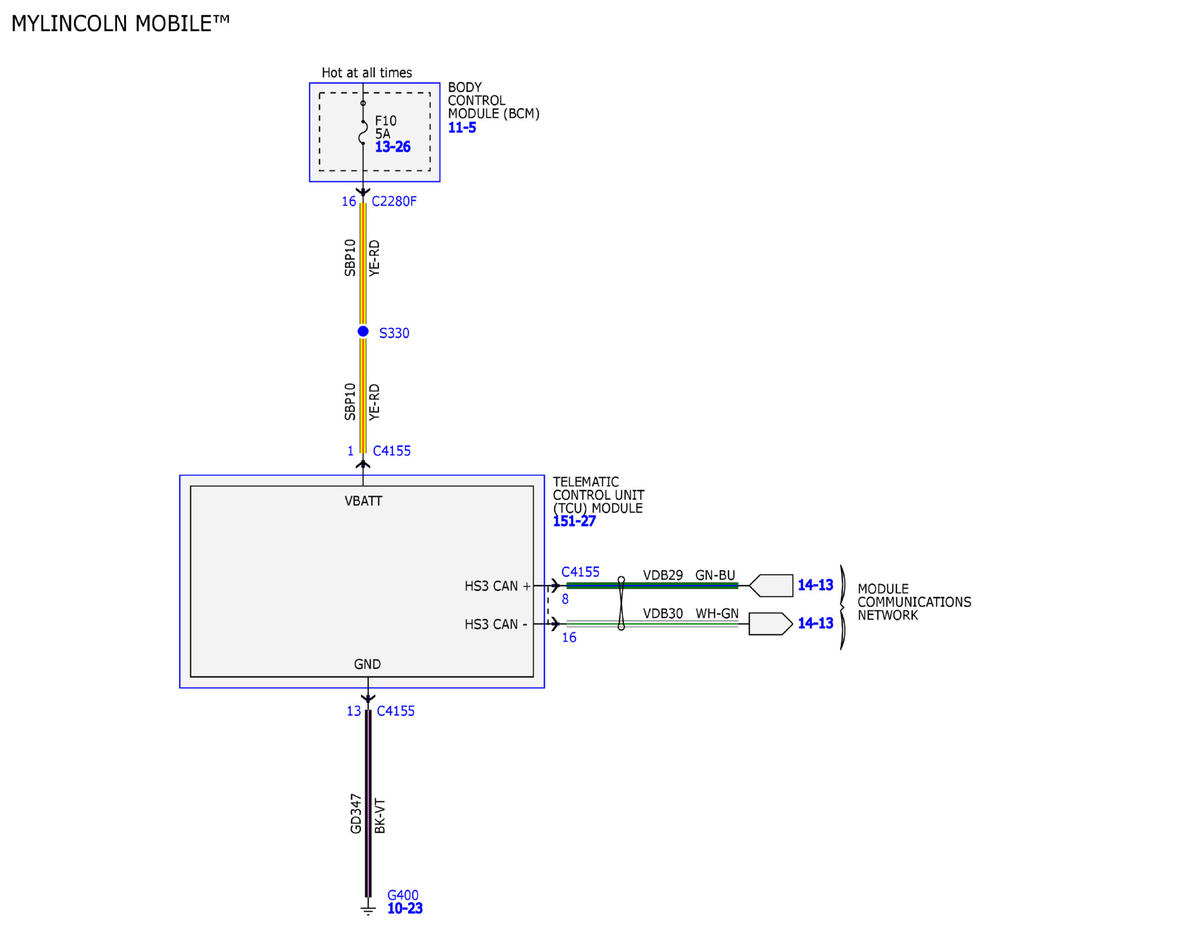

Fig 4: Audio System/Navigation - AM/FM/CD/SYNC/Touchscreen Display Wiring Diagram (4 Of 17)
GFDW93499Courtesy of FORD MOTOR COMPANY

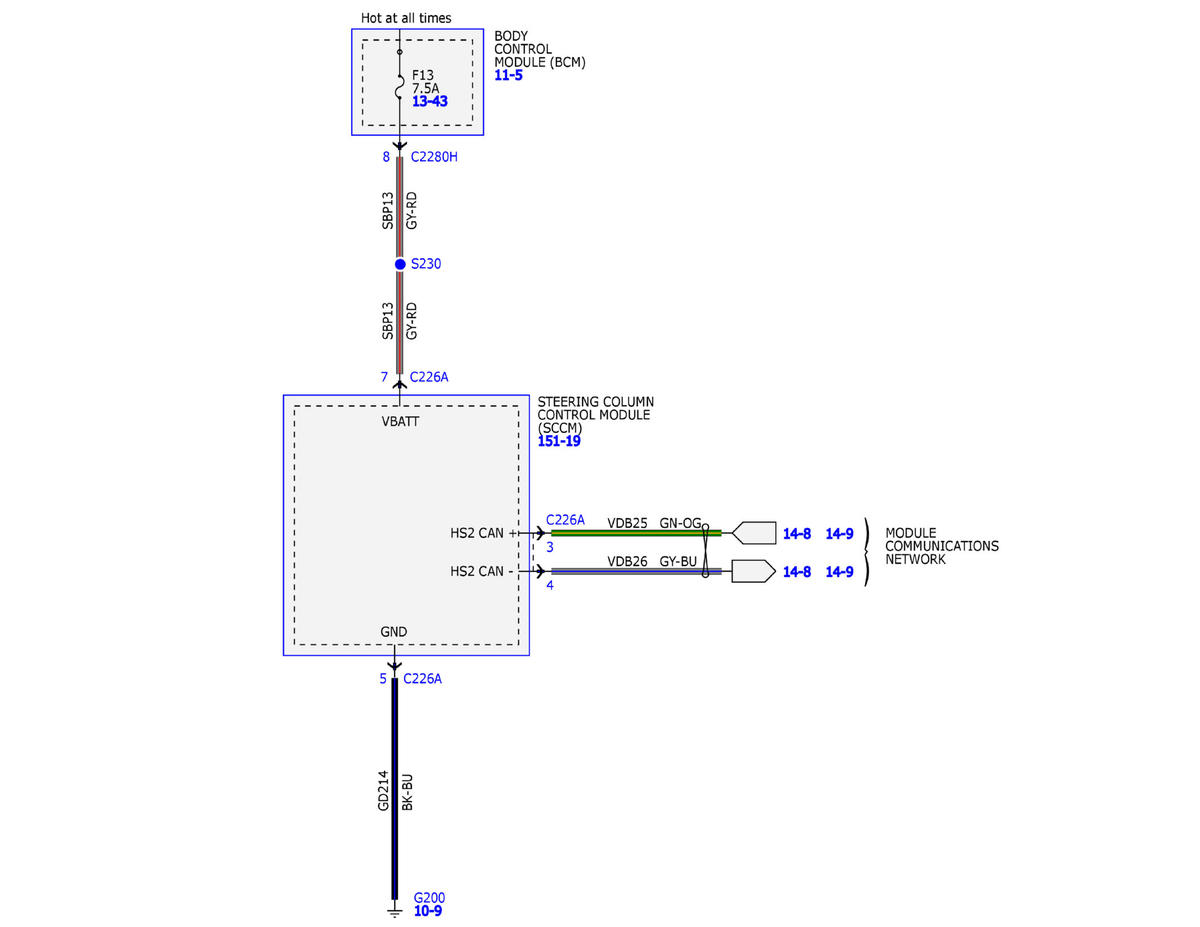

Fig 5: Audio System/Navigation - AM/FM/CD/SYNC/Touchscreen Display Wiring Diagram (5 Of 17)
GFDW93500Courtesy of FORD MOTOR COMPANY

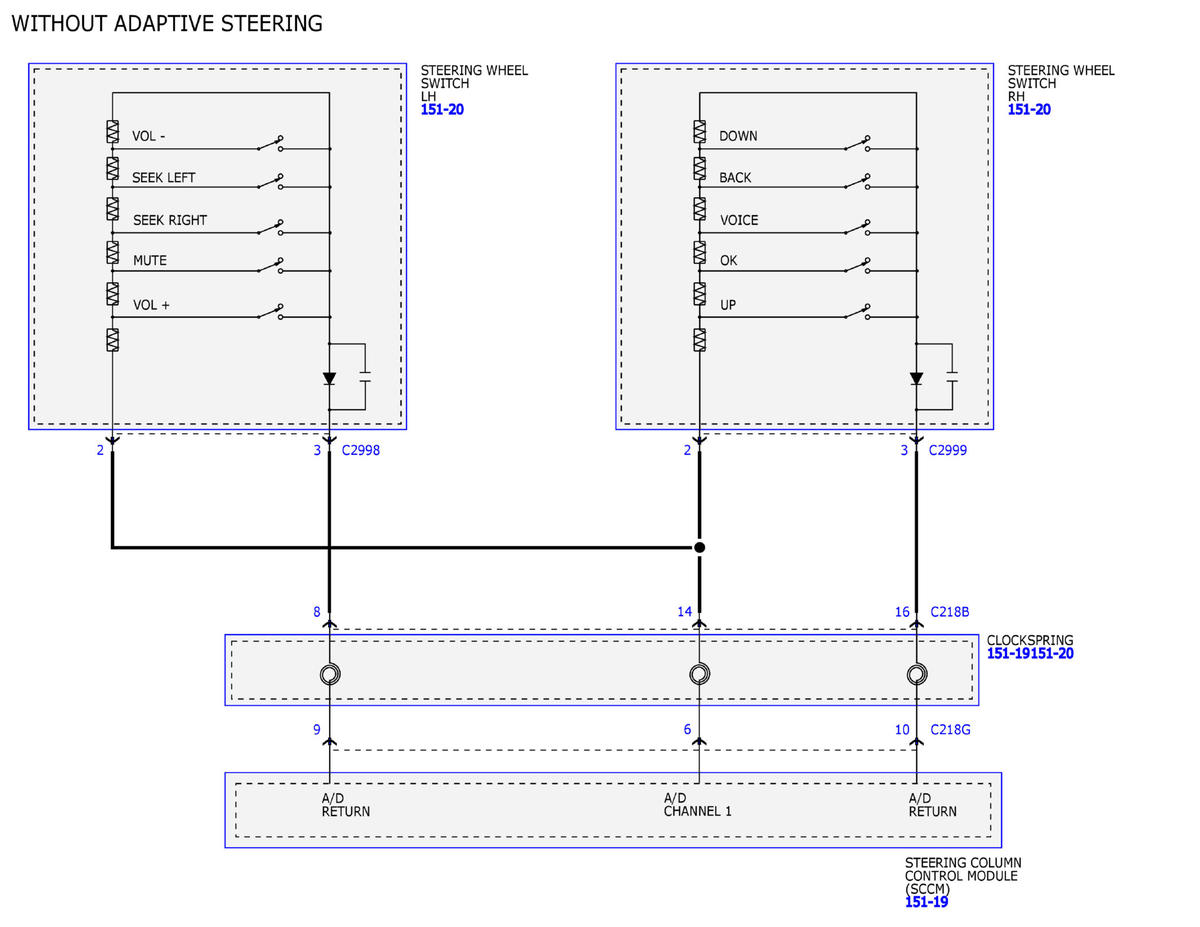

Fig 6: Audio System/Navigation - AM/FM/CD/SYNC/Touchscreen Display Wiring Diagram (6 Of 17)
GFDW93501Courtesy of FORD MOTOR COMPANY

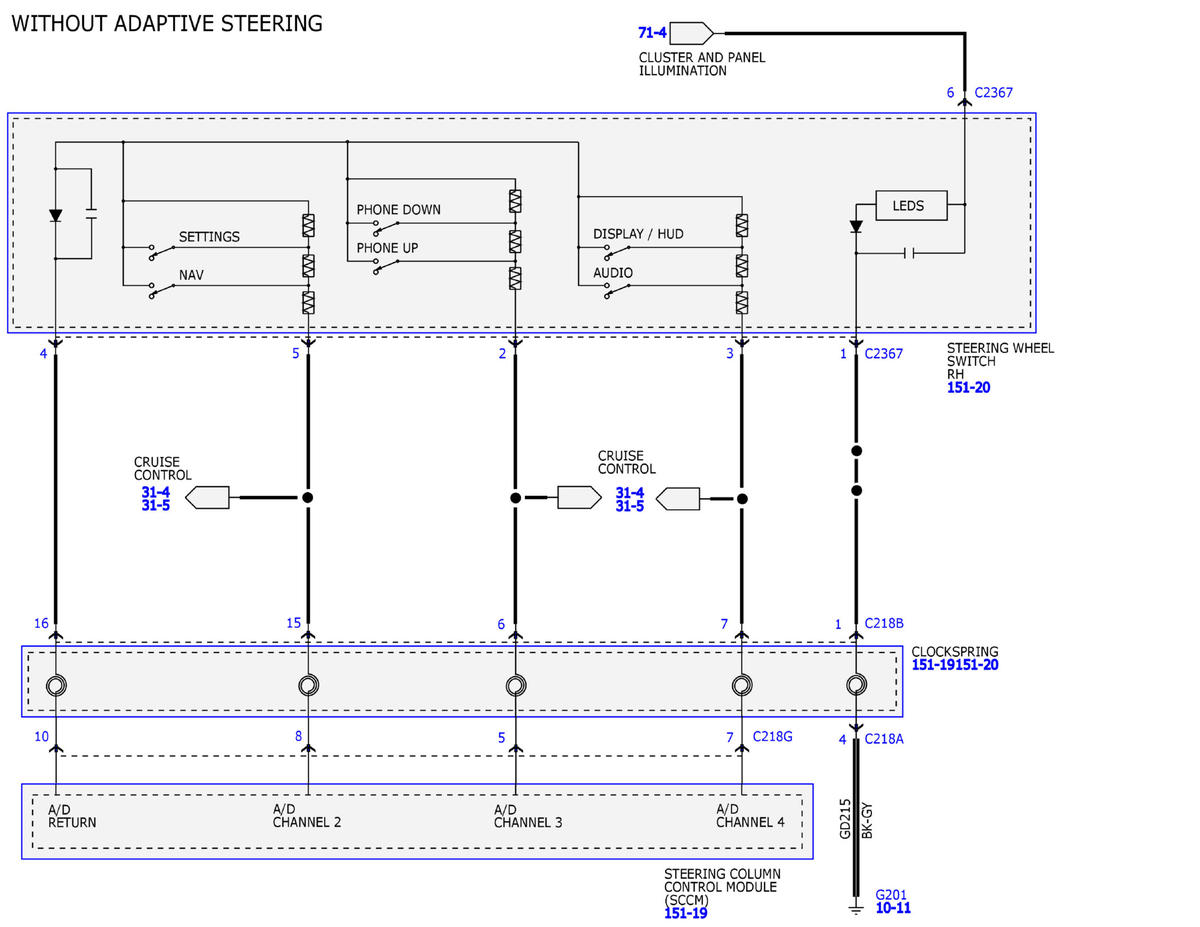

Fig 7: Audio System/Navigation - AM/FM/CD/SYNC/Touchscreen Display Wiring Diagram (7 Of 17)
GFDW93502Courtesy of FORD MOTOR COMPANY

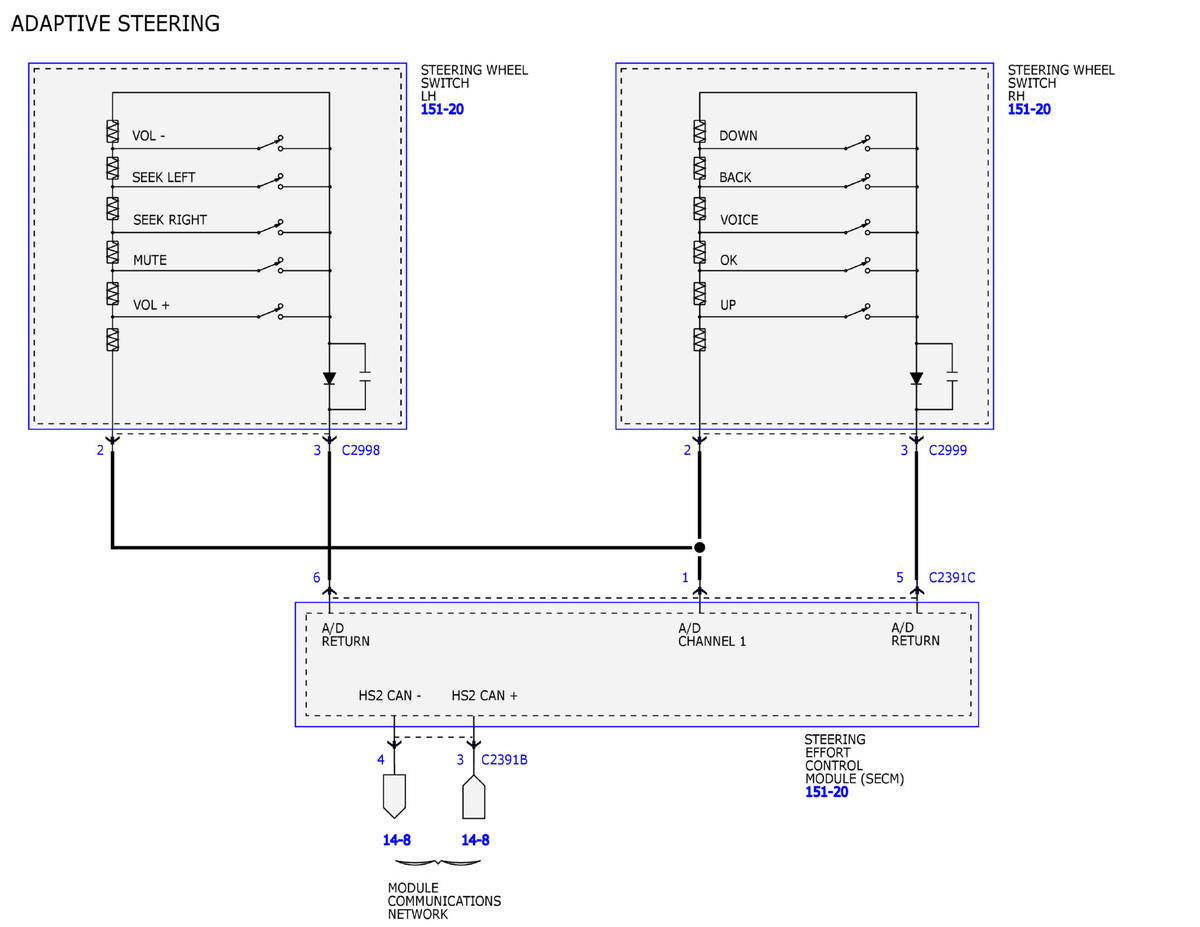

Fig 8: Audio System/Navigation - AM/FM/CD/SYNC/Touchscreen Display Wiring Diagram (8 Of 17)
GFDW93503Courtesy of FORD MOTOR COMPANY

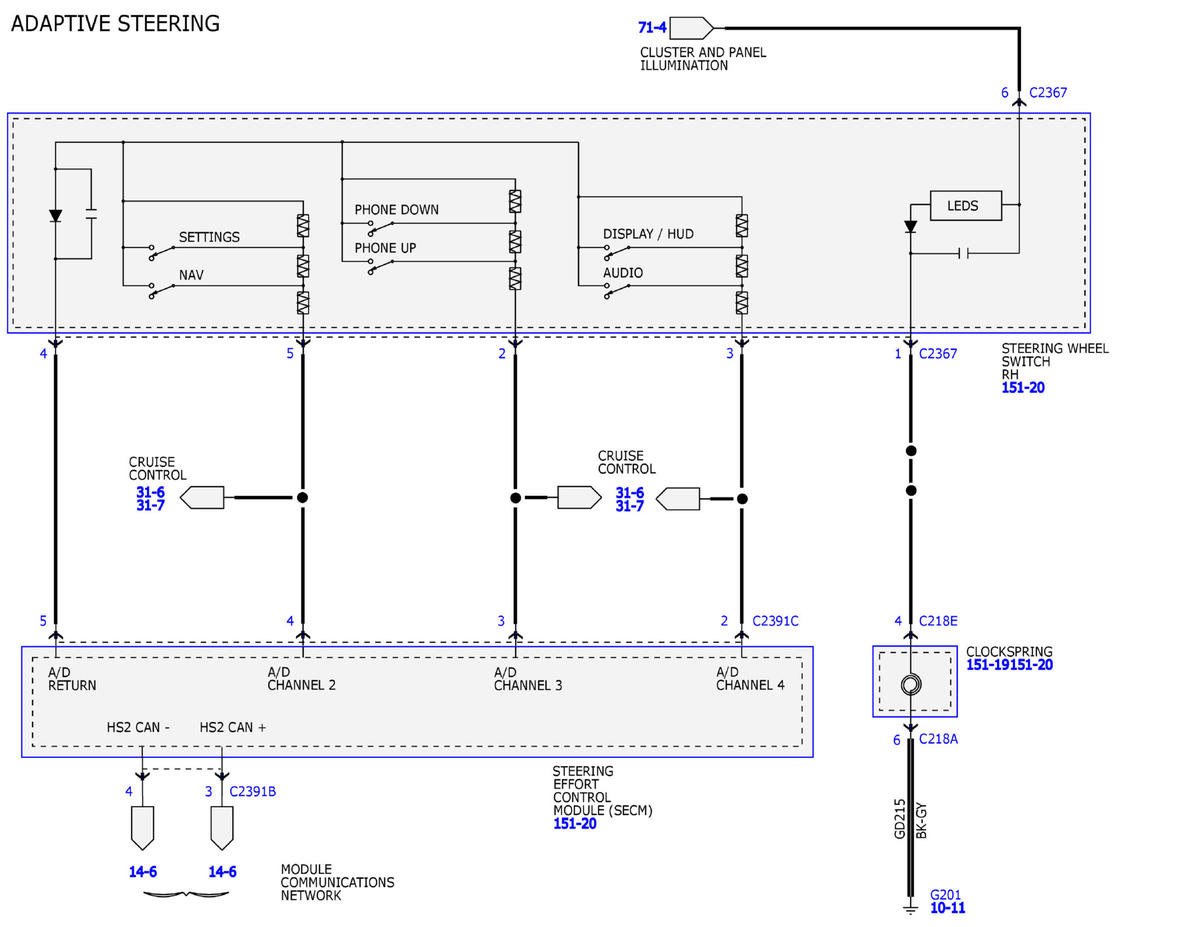

Fig 9: Audio System/Navigation - AM/FM/CD/SYNC/Touchscreen Display Wiring Diagram (9 Of 17)
GFDW93504Courtesy of FORD MOTOR COMPANY

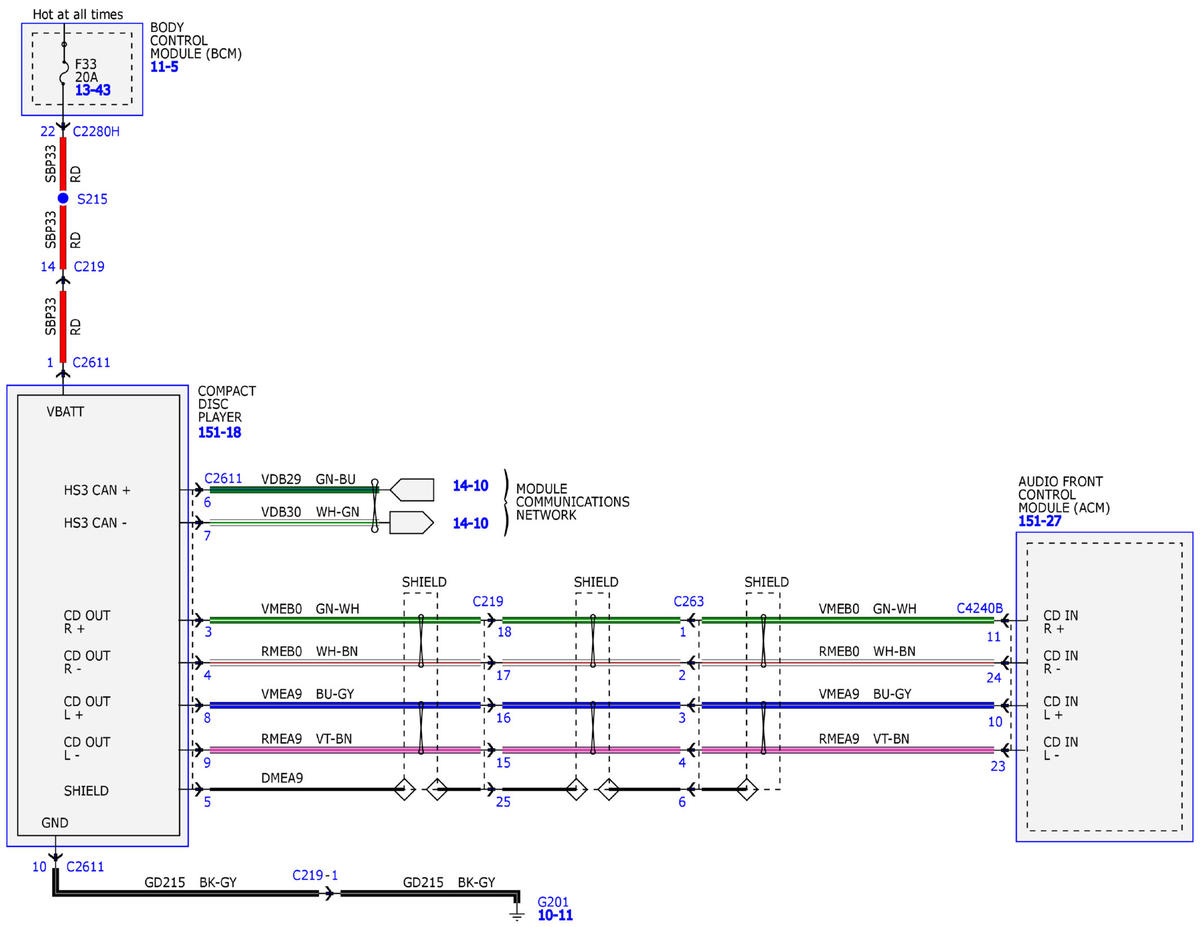

Fig 10: Audio System/Navigation - AM/FM/CD/SYNC/Touchscreen Display Wiring Diagram (10 Of 17)
GFDW93505Courtesy of FORD MOTOR COMPANY

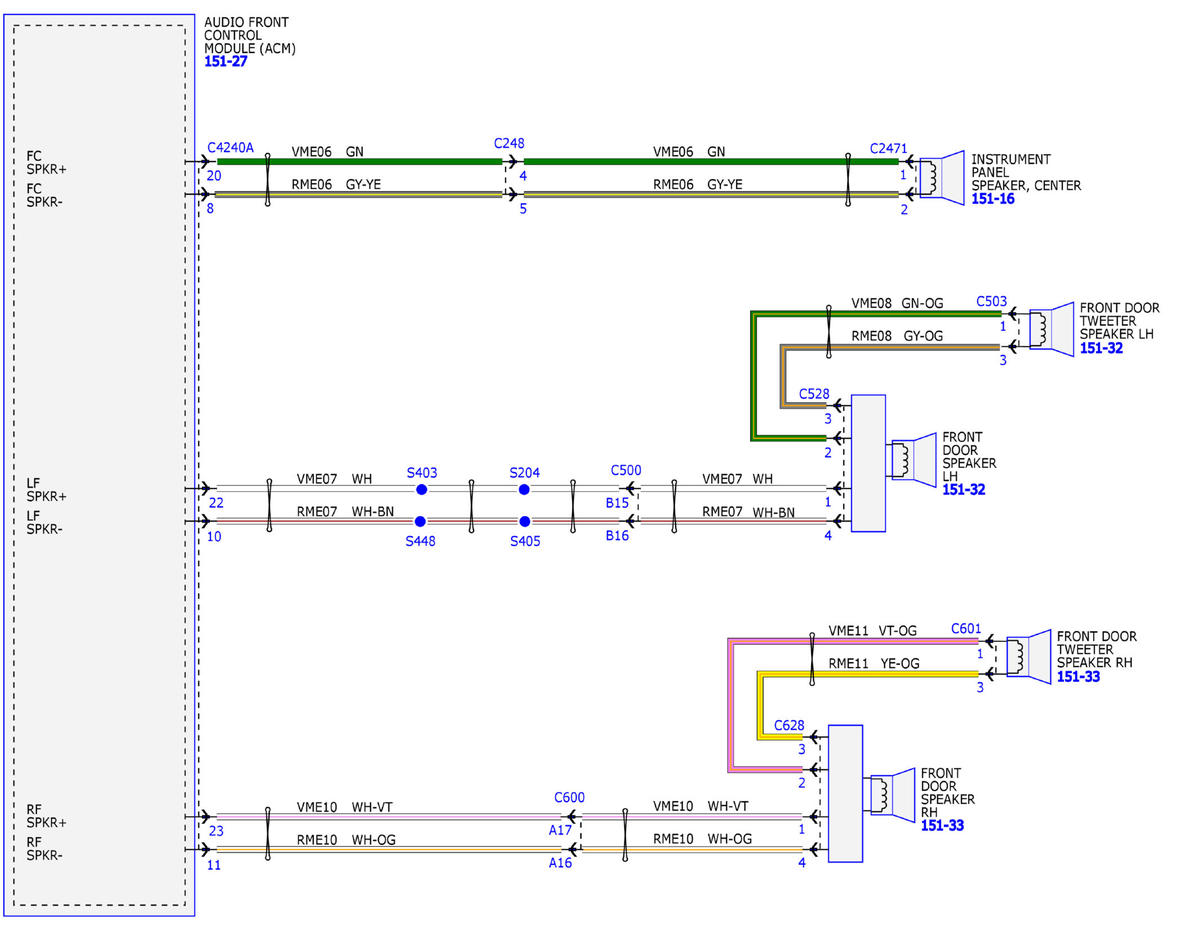

Fig 11: Audio System/Navigation - AM/FM/CD/SYNC/Touchscreen Display Wiring Diagram (11 Of 17)
GFDW93506Courtesy of FORD MOTOR COMPANY
Fig 12: Audio System/Navigation - AM/FM/CD/SYNC/Touchscreen Display Wiring Diagram (12 Of 17)
GFDW93507Courtesy of FORD MOTOR COMPANY

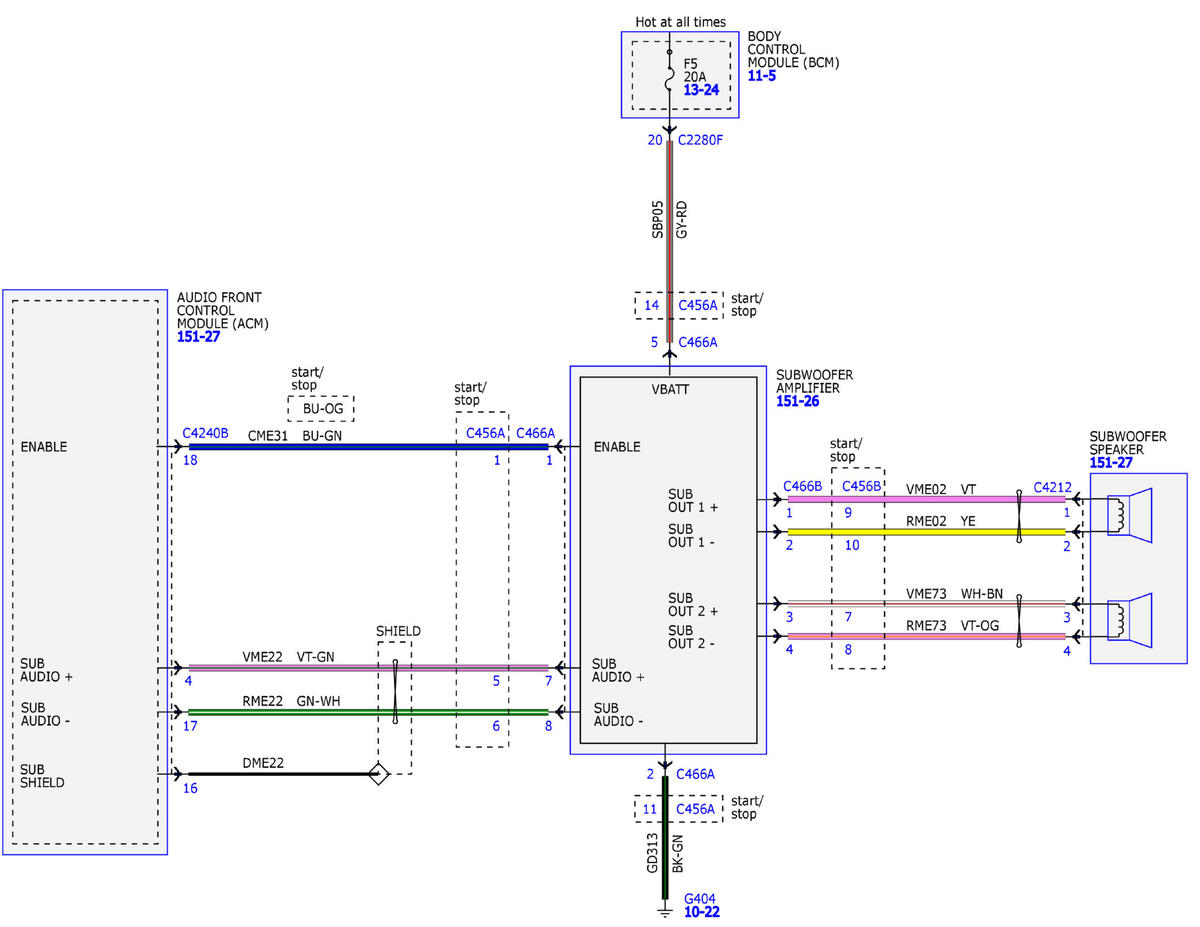

Fig 13: Audio System/Navigation - AM/FM/CD/SYNC/Touchscreen Display Wiring Diagram (13 Of 17)
GFDW93508Courtesy of FORD MOTOR COMPANY
Fig 14: Audio System/Navigation - AM/FM/CD/SYNC/Touchscreen Display Wiring Diagram (14 Of 17)
GFDW93509Courtesy of FORD MOTOR COMPANY

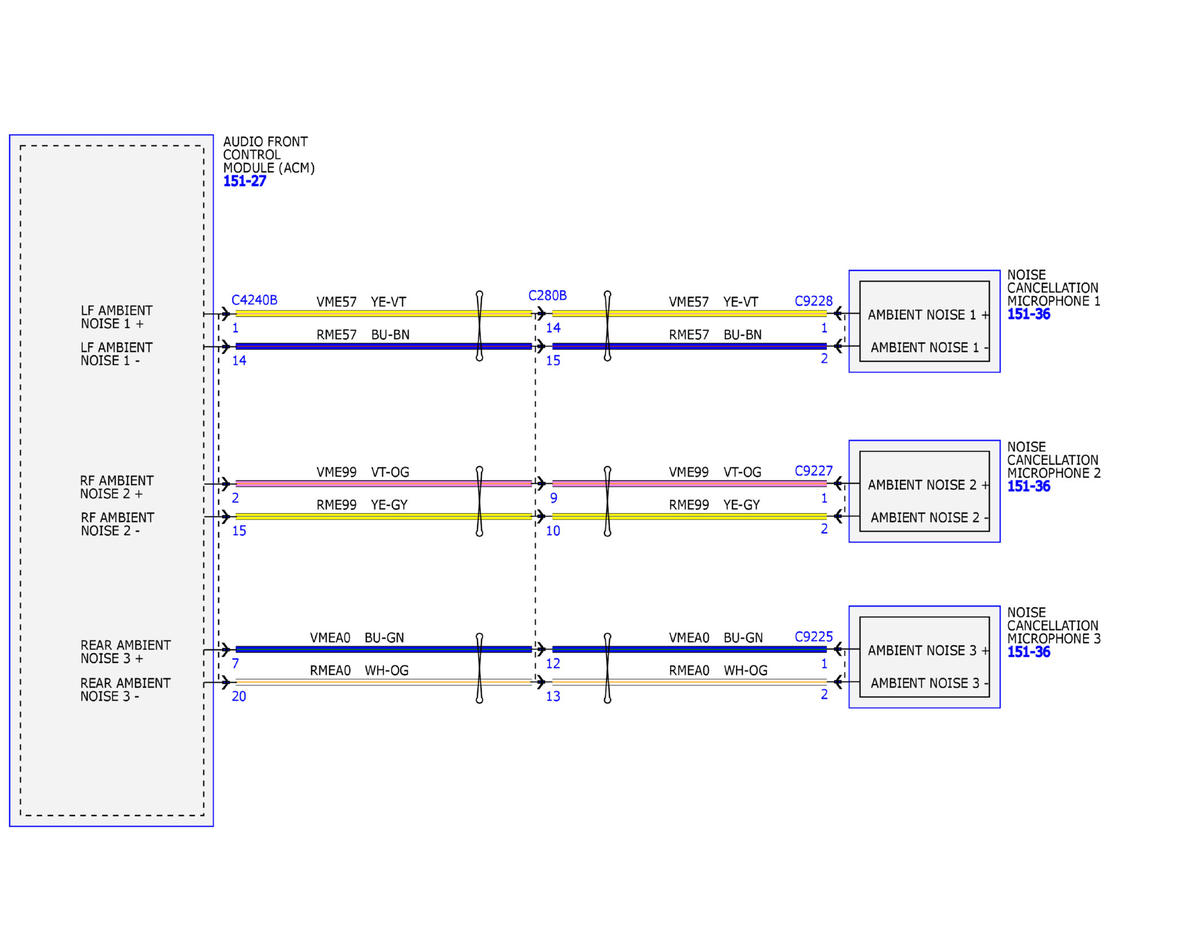

Fig 15: Audio System/Navigation - AM/FM/CD/SYNC/Touchscreen Display Wiring Diagram (15 Of 17)
GFDW93510Courtesy of FORD MOTOR COMPANY

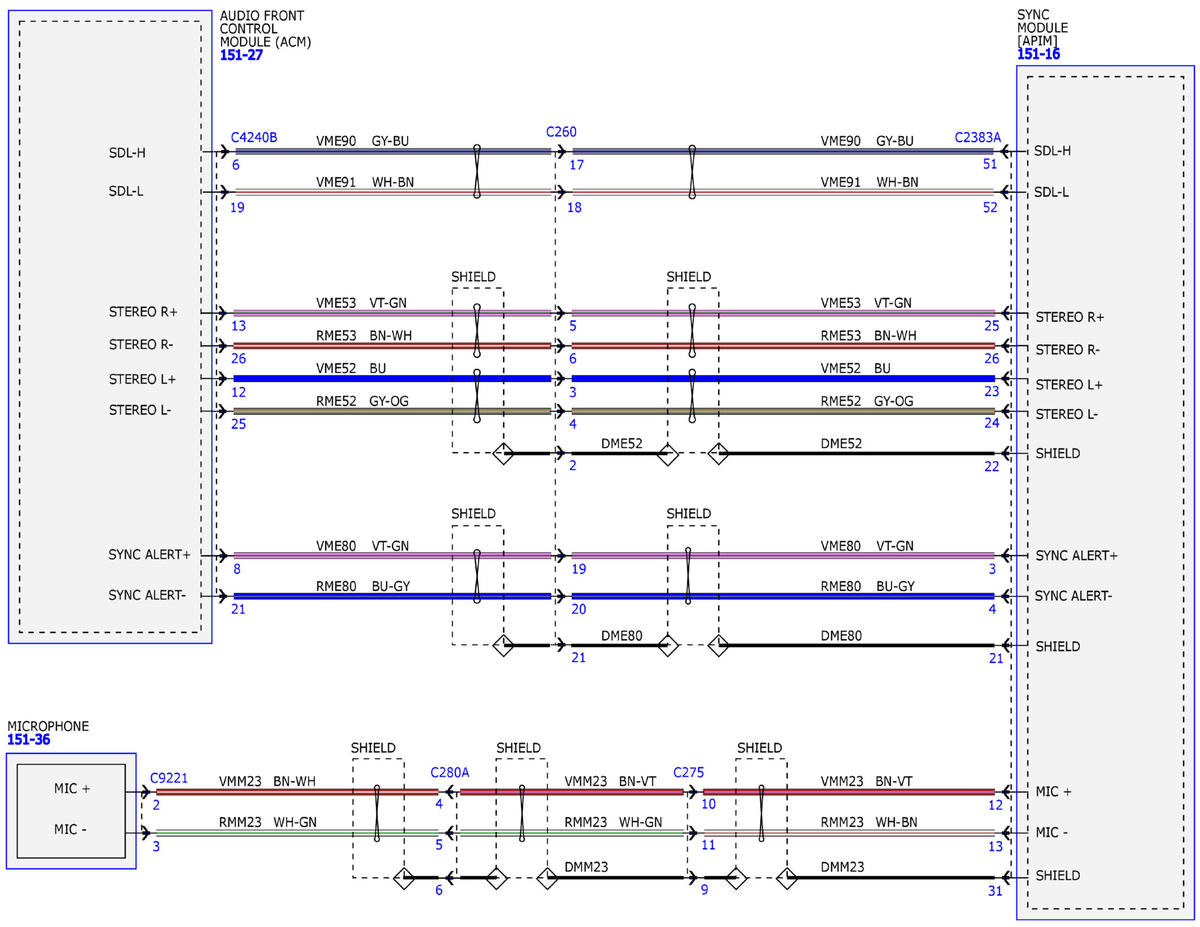

Fig 16: Audio System/Navigation - AM/FM/CD/SYNC/Touchscreen Display Wiring Diagram (16 Of 17)
GFDW93511Courtesy of FORD MOTOR COMPANY

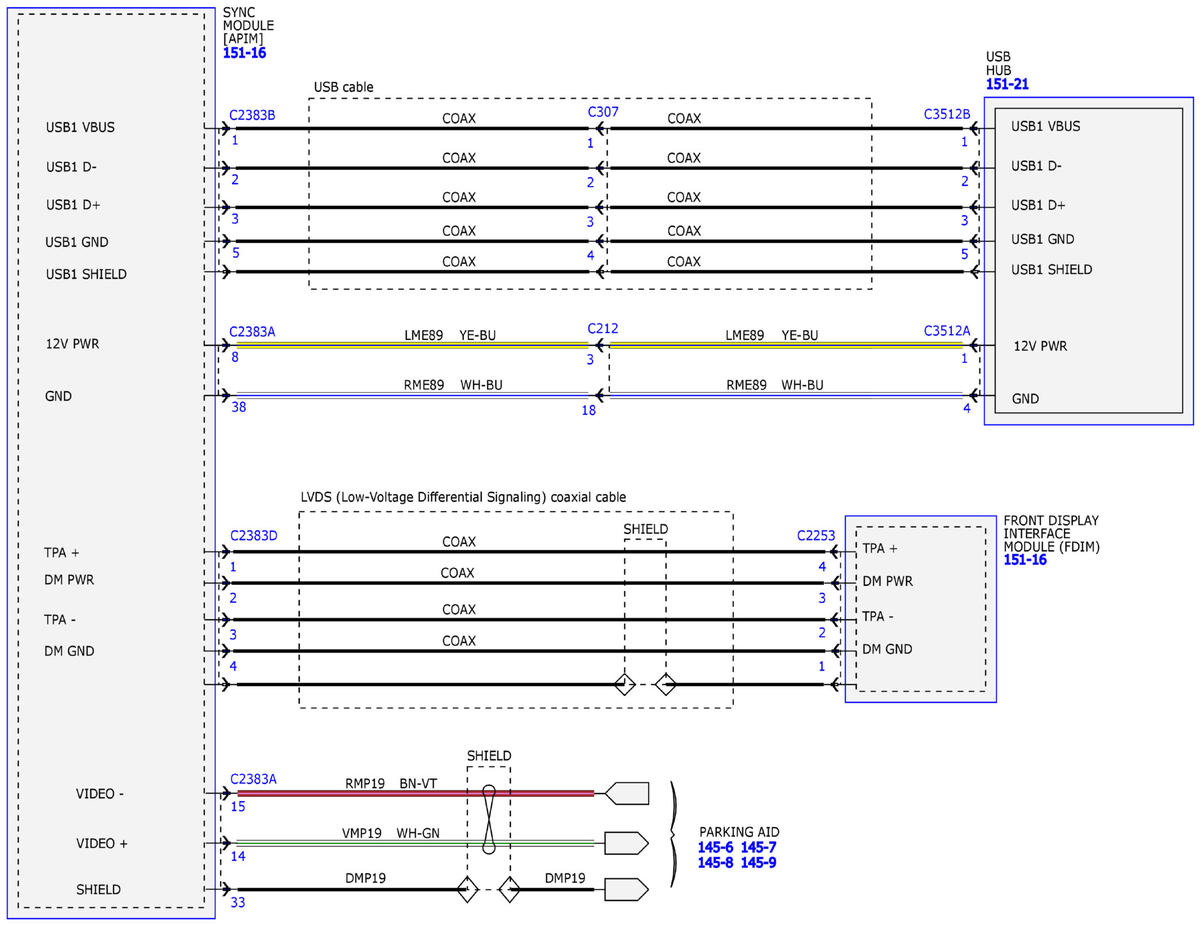

Fig 17: Audio System/Navigation - AM/FM/CD/SYNC/Touchscreen Display Wiring Diagram (17 Of 17)
GFDW93512Courtesy of FORD MOTOR COMPANY
