Interior Rear View Mirror: Installation

Mirror type 1

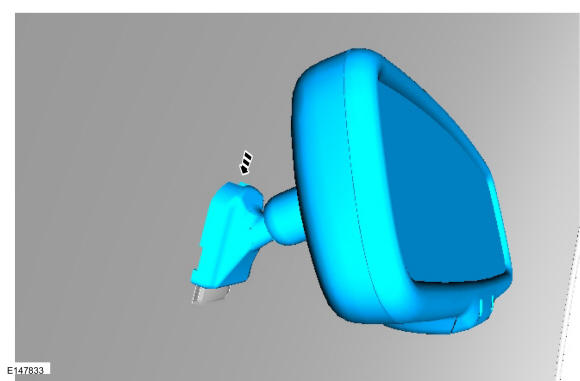

1. Slide the interior rear view mirror over the windshield bracket from the top.

   Courtesy of FORD MOTOR COMPANY

2. NOTE: An audible click will be heard as the mirror fully seats.

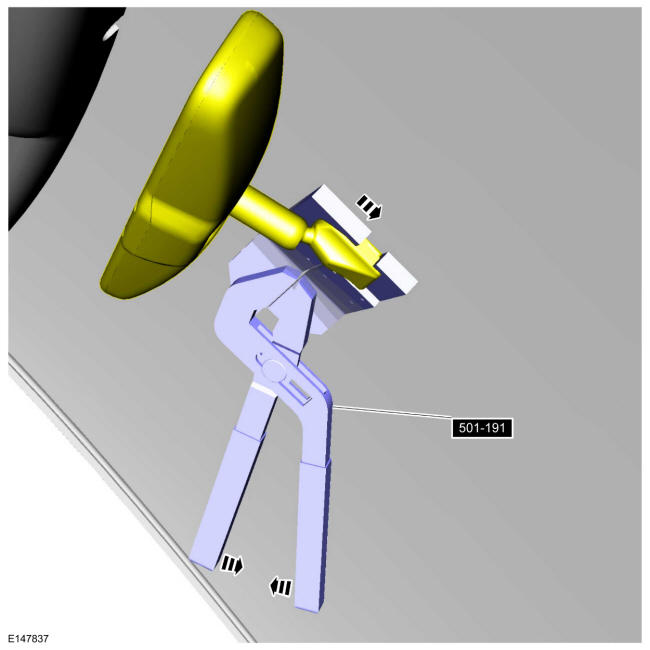

   Using the interior mirror installer, fully seat the interior mirror. Use Special Service Tool: 501-191 Installer, Rear View Mirror.

   Courtesy of FORD MOTOR COMPANY

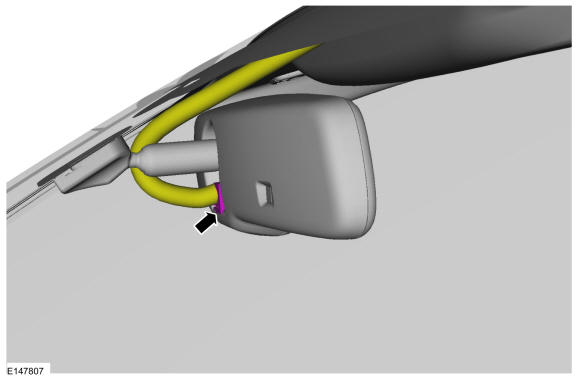

3. If equipped, connect the electrical connector.

   Courtesy of FORD MOTOR COMPANY

4. If equipped with a compass module which requires calibration, check the compass zone and calibration.

Mirror type 2

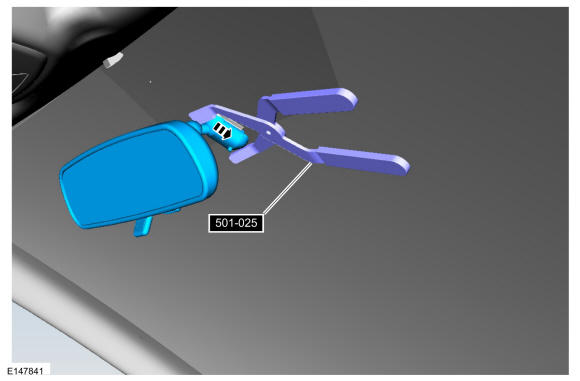

5. Using the interior mirror installer, fully seat the interior mirror. Use Special Service Tool: 501-025 Installer, Rear View Mirror.

   Courtesy of FORD MOTOR COMPANY

6. If equipped with a compass module which requires calibration, check the compass zone and calibration.

Mirror type 3

7. To install, reverse the removal procedure.

Mirror type 4

8. To install, reverse the removal procedure.
9. • If a new mirror has been installed, use diagnostic scan tool, complete the PMI process for the IPMA following the on-screen instructions.
   • If a new mirror has been installed, carry out the camera alignment using a scan tool.

Mirror type 5

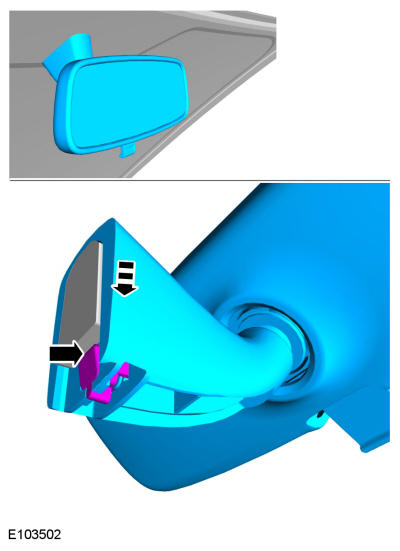

10. Slide the interior mirror onto the mirror mount until the locking tab is engaged.

    Courtesy of FORD MOTOR COMPANY

Mirror type 6

11. To install, reverse the removal procedure.
