Component Locations

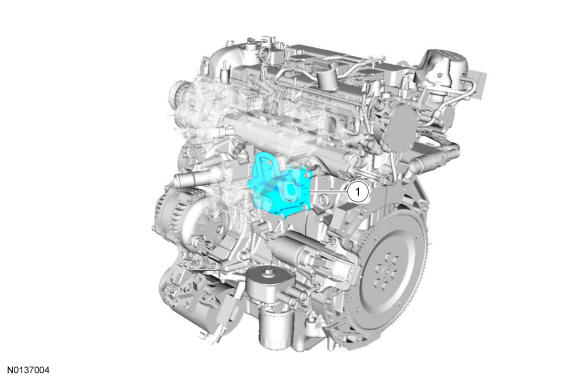

2.0L GTDI

GFD92849Courtesy of FORD MOTOR COMPANY
Item Description Comments
1 Crankcase vent oil separator -

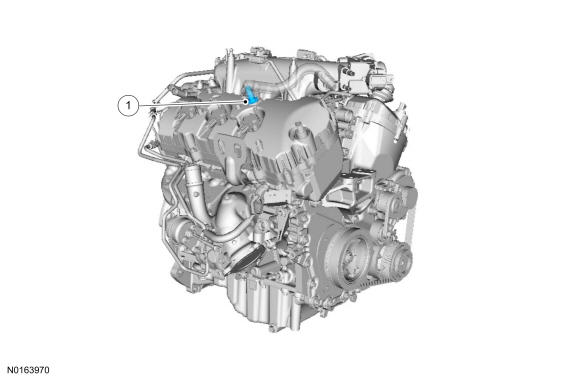

3.5L GTDI

GFD92850Courtesy of FORD MOTOR COMPANY
Item Description Comments
1 PCV valve -

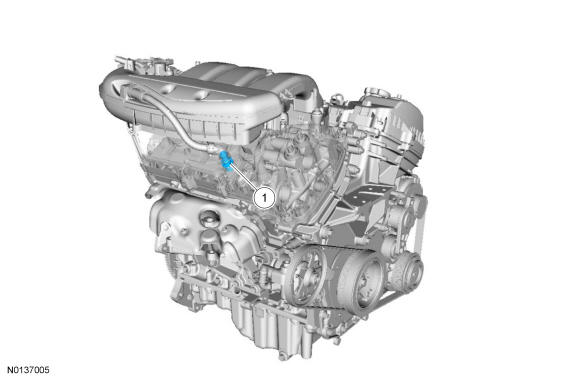

3.7L Ti-VCT

GFD92851Courtesy of FORD MOTOR COMPANY
Item Description Comments
1 PCV valve -
