Power Transfer Unit (PTU) Overhaul

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s)

GFD231976Courtesy of FORD MOTOR COMPANY
Slide Hammer 100-001
GFD231977Courtesy of FORD MOTOR COMPANY
Holding Fixture, Drive Pinion Flange 205-126
GFD231978Courtesy of FORD MOTOR COMPANY
Handle 205-153
GFD231979Courtesy of FORD MOTOR COMPANY
Remover, Halfshaft 205-241
GFD231980Courtesy of FORD MOTOR COMPANY
Installer, Front Axle Bushing
GFD231981Courtesy of FORD MOTOR COMPANY
Installer, PTU Linkshaft Seal
GFD231982Courtesy of FORD MOTOR COMPANY
Installer, Parking Brake Bearing 206-040
GFD231983Courtesy of FORD MOTOR COMPANY
Holding Fixture, Transmission 307-003
GFD231984Courtesy of FORD MOTOR COMPANY
Remover, Output Flange 307-523
GFD231985Courtesy of FORD MOTOR COMPANY
Remover, Transfer Case Bearing 308-125
GFD231986Courtesy of FORD MOTOR COMPANY
Installer, Shaft Bearing Cup
GFD231987Courtesy of FORD MOTOR COMPANY
Installer, PTO Drive Gear Outer Oil Seal
GFD231988Courtesy of FORD MOTOR COMPANY
Installer, Halfshaft Oil Seal
GFD231989Courtesy of FORD MOTOR COMPANY
Remover and Installer, PTU Input Shaft Seal

General Equipment

Flat-Bladed Screwdriver
Slide Hammer
Slide Hammer Dent Puller
Spatula

Material

Item Specification
Motorcraft ® Silicone Brake Caliper Grease and Dielectric CompoundXG-3-A ESE-M1C171-A
Motorcraft ® SAE 75W-140 Synthetic Rear Axle LubricantXY-75W140-QL (US); CXY-75W140-1L (Canada) WSL-M2C192-A and GL-5
Ultra Silicone SealantTA-29 -

All Vehicles

  1. Remove the PTU (Power Transfer Unit).
  2. Using the special tool, secure the PTU (Power Transfer Unit) to the bench.Special Tool: 307-003 Holding Fixture, Transmission
    GFD231990Courtesy of FORD MOTOR COMPANY
  3. Inspect the case exterior for cracks.
    GFD231991Courtesy of FORD MOTOR COMPANY
  4. Remove the temperature sensor clip bracket.
    GFD231992Courtesy of FORD MOTOR COMPANY
  5. NOTE: The following instruction will prevent the 308-125 (T87P-7120-D) from opening too far which would make removing the intermediate shaft seal deflector difficult.

    Place a 16mm (5/8 in) washer on the special tool as shown.Special Tool: 308-125 Remover, Transfer Case Bearing

    GFD231993Courtesy of FORD MOTOR COMPANY
  6. NOTE: The intermediate shaft seal deflector may break when removed. Remove all foreign materials from the PTU before continuing with the repair.

    Using the special tools, remove and discard the halfshaft deflector.Special Tool: 205-241 Remover, HalfshaftSpecial Tool: 308-125 Remover, Transfer Case BearingEquipment: Slide Hammer

    GFD231994Courtesy of FORD MOTOR COMPANY
  7. Using the special tool, remove and discard the halfshaft intermediate shaft seal and alignment washer.Special Tool: 205-241 Remover, HalfshaftSpecial Tool: 308-125 Remover, Transfer Case BearingEquipment: Slide Hammer
    GFD231995Courtesy of FORD MOTOR COMPANY
  8. Using the special tools, remove and discard the RH cover seal.Special Tool: 205-241 Remover, HalfshaftEquipment: Slide Hammer
    GFD231996Courtesy of FORD MOTOR COMPANY
  9. Remove and discard the compression seal.Special Tool: 205-241 Remover, HalfshaftEquipment: Slide Hammer
    GFD231997Courtesy of FORD MOTOR COMPANY
  10. NOTE: Do not press the seals lower than specified. Excessive force will damage the bearing below the seals.
    NOTE: Both seals will need to be pressed lower into the transfer case input shaft opening to break the seals outer sealant loose from the transfer case.
    NOTE: There is approximately a 5 mm (0.196 in) air gap between both seals and approximately 1 mm (0.039 in) air gap between the inner seal and the bearing race.

    Using the special tool, press the outer seal downward until the lower seal contacts the bearing race.Special Tool: 206-040 Installer, Parking Brake Bearing

    GFD231998Courtesy of FORD MOTOR COMPANY
  11. Position the special tool above the PTU input shaft opening.Special Tool: 308-777 Remover and Installer, PTU Input Shaft Seal
    GFD231999Courtesy of FORD MOTOR COMPANY
  12. Insert the special tool into one of the screw guide holes. Press the special tool downward until the shoulder of the punch touches the screw guide.Special Tool: 308-777 Remover and Installer, PTU Input Shaft Seal
    GFD232000Courtesy of FORD MOTOR COMPANY
  13. NOTE: Do not overtighten the screws. Turn the 308-777 /3 until they are seated into the screw guide holes.

    Install the special tool into the screw guide hole.Special Tool: 308-777 Remover and Installer, PTU Input Shaft Seal

    GFD232001Courtesy of FORD MOTOR COMPANY
  14. Insert the special tool into the opposing screw guide hole. Press the special tool downward until the shoulder of the punch touches the screw guide.Special Tool: 308-777 Remover and Installer, PTU Input Shaft Seal
    GFD232002Courtesy of FORD MOTOR COMPANY
  15. Install the special tool into the screw guide hole.Special Tool: 308-777 Remover and Installer, PTU Input Shaft Seal
    GFD232003Courtesy of FORD MOTOR COMPANY
  16. Using the special tools, remove and discard the 2 input shaft seals.Special Tool: 308-777 Remover and Installer, PTU Input Shaft SealSpecial Tool: 100-001 Slide Hammer
    GFD232004Courtesy of FORD MOTOR COMPANY

    Vehicles without PTU cooler

  17. Remove the PTU temperature sensor heat shield bolts and the heat shield.
    GFD232005Courtesy of FORD MOTOR COMPANY
  18. Remove the PTU temperature sensor and the temperature sensor wiring retainer clip.
    GFD232006Courtesy of FORD MOTOR COMPANY
  19. Remove the drain plug.
    GFD232007Courtesy of FORD MOTOR COMPANY
  20. Remove the fill plug.
    GFD232008Courtesy of FORD MOTOR COMPANY

    Vehicles with PTU cooler

  21. Remove the PTU temperature sensor heat shield bolts and the heat shield.
    GFD232009Courtesy of FORD MOTOR COMPANY
  22. If equipped with PTU cooling, remove the PTU temperature sensor.
    GFD232010Courtesy of FORD MOTOR COMPANY
  23. If equipped with PTU cooling, remove the PTU cooler housing bolts and PTU cooler housing.
    GFD232011Courtesy of FORD MOTOR COMPANY
  24. If equipped with PTU cooling, remove the PTU cooler housing gasket and discard.
    GFD232012Courtesy of FORD MOTOR COMPANY

    All Vehicles

  25. Remove the PTU cover bolts.
    GFD232013Courtesy of FORD MOTOR COMPANY
    WARNING: When removing the PTU cover, the fluid may emit a sulfur odor. Perform the repair in a well ventilated area to reduce exposure. Avoid getting the fluid on clothes and skin. Wear protective gloves such as Nitrile.
  26. Remove the PTU cover.Equipment: Flat-Bladed Screwdriver
    GFD232014Courtesy of FORD MOTOR COMPANY
  27. Remove the ring gear assembly.
    GFD232015Courtesy of FORD MOTOR COMPANY
  28. Remove the idler gear shaft and the idler gear assembly
    GFD232016Courtesy of FORD MOTOR COMPANY
    NOTE: The position of the idler gear thrust washer
  29. Remove and discard the washer.
    GFD232017Courtesy of FORD MOTOR COMPANY
  30. Remove the input gear assembly.
    GFD232018Courtesy of FORD MOTOR COMPANY
  31. Index mark the output pinion flange to the pinion shaft.
    GFD232019Courtesy of FORD MOTOR COMPANY
  32. Using the special tool, hold the output pinion flange. Remove and discard the pinion nut.Special Tool: 205-126 Holding Fixture, Drive Pinion Flange
    GFD232020Courtesy of FORD MOTOR COMPANY
  33. Using the special tool, remove the output pinion flange.Special Tool: 307-523 Remover, Output Flange
    GFD232021Courtesy of FORD MOTOR COMPANY
  34. Remove and discard the output shaft seal.
    GFD232022Courtesy of FORD MOTOR COMPANY
  35. Remove the oil slinger.
    GFD232023Courtesy of FORD MOTOR COMPANY
  36. Remove the outer pinion bearing.
    GFD232024Courtesy of FORD MOTOR COMPANY
  37. Remove and discard the collapsible spacer.
    GFD232025Courtesy of FORD MOTOR COMPANY
  38. Remove the pinion gear.
    GFD232026Courtesy of FORD MOTOR COMPANY
  39. Inspect the PTU ring gears and bearing for damage. INSTALL a new PTU if damage is present.
    GFD232027Courtesy of FORD MOTOR COMPANY
  40. Inspect the PTU input gear and bearings for damage. INSTALL a new PTU if damage is present.
    GFD232028Courtesy of FORD MOTOR COMPANY
  41. Inspect the PTU pinion gear and bearing for damage. INSTALL a new PTU if damage is present.
    GFD232029Courtesy of FORD MOTOR COMPANY
  42. Inspect the PTU idler gear and bearing for damage. Replace as necessary.
    GFD232030Courtesy of FORD MOTOR COMPANY
  43. Inspect the PTU idler gear shaft for damage. Replace as necessary.
    GFD232031Courtesy of FORD MOTOR COMPANY
  44. Inspect the PTU bearing races and thrust surface for damage. INSTALL a new PTU if damage is present.
    GFD232032Courtesy of FORD MOTOR COMPANY
  45. Inspect the PTU outer pinion bearing race for damage. INSTALL a new PTU if damage is present.
    GFD232033Courtesy of FORD MOTOR COMPANY
  46. Inspect the PTU cover bearing and bearing race for damage. INSTALL a new PTU if damage is present.
    GFD232034Courtesy of FORD MOTOR COMPANY
  47. Throughly clean the internal components. Use a soft bristle brush to remove contamination and deposits. Allow parts to air dry. Inspect the components for damage, replace as necessary.
    GFD232035Courtesy of FORD MOTOR COMPANY
  48. Remove the contamination and deposits from the PTU housing and cover using a plastic scraper. Clean the PTU housing and cover using a soft bristle brush to remove the contamination. Clean any remaining lip seal coating that may still be present on the housing or cover bores with a wire brush. Make sure the vent fitting and housing pockets are clean and clear.
    GFD232036Courtesy of FORD MOTOR COMPANY
  49. Clean the PTU case and cover flange sealing surfaces. Engine System General Information
    GFD232037Courtesy of FORD MOTOR COMPANY
  50. To begin assembly, lightly coat the output shaft bearings in clean axle lubricant. Install the PTU output shaft into the PTU case.Material: Gear/Transmission Fluid - SAE 75W-140 WSL-M2C192-A
    GFD232038Courtesy of FORD MOTOR COMPANY
  51. Install the new collapsible spacer.
    GFD232039Courtesy of FORD MOTOR COMPANY
  52. Lightly coat with clean axle lubricant and install the outer pinion bearing.Material: Gear/Transmission Fluid - SAE 75W-140 WSL-M2C192-A
    GFD232040Courtesy of FORD MOTOR COMPANY
  53. Install the oil slinger.
    GFD232023Courtesy of FORD MOTOR COMPANY
  54. Using the special tool, install the output shaft seal.Special Tool: 308-430 Installer, PTO Drive Gear Outer Oil Seal
    GFD232041Courtesy of FORD MOTOR COMPANY
  55. NOTE: Install a new output pinion flange and deflector if the output shaft seal mating surface is damaged.

    Inspect the output pinion flange and deflector for damage, replace as necessary.

    GFD232042Courtesy of FORD MOTOR COMPANY
  56. NOTE: Install the output pinion flange to engage the spline as previously marked.

    Install the output pinion flange.

    GFD232043Courtesy of FORD MOTOR COMPANY
  57. Using the special tool to hold the output pinion flange, install a new pinion flange nut.Special Tool: 205-126 Holding Fixture, Drive Pinion FlangeTorque:142 Nm
    GFD232044Courtesy of FORD MOTOR COMPANY
  58. Lightly coat the input shaft bearings and gear with clean axle lubricant. Install the input shaft into the PTU case.Material: Gear/Transmission Fluid - SAE 75W-140 WSL-M2C192-A
    GFD232045Courtesy of FORD MOTOR COMPANY
  59. NOTE: The kit may include a subassembly of the idler gear, bearings, shaft and thrust washer retained by a plastic ring. Remove and discard the ring.

    Lightly coat the idler gear, bearings, shaft and thrust washer with clean axle lubricant. Insert the 2 new idler bearings in the idler gear bore (no orientation required). Insert the new idler shaft through bearings. Coat the thrust face in the PTU case with clean axle lubricant and install the idler gear subassembly.Material: Gear/Transmission Fluid - SAE 75W-140 WSL-M2C192-A

    GFD232046Courtesy of FORD MOTOR COMPANY
  60. Lightly coat the ring gear shaft and bearings with clean axle lubricant. Install the ring gear shaft into the PTU case.Material: Gear/Transmission Fluid - SAE 75W-140 WSL-M2C192-A
    GFD232047Courtesy of FORD MOTOR COMPANY
  61. Orient the idler shaft "D" by lightly fitting the cover over it and rotating to the correct position. Remove the cover.
    GFD232048Courtesy of FORD MOTOR COMPANY
  62. Make sure that the mating faces are clean and free of foreign material. Engine System General Information
    GFD232049Courtesy of FORD MOTOR COMPANY
  63. NOTE: If the PTU cover is not installed within 10 minutes of application of the silicone, new sealant must be applied.

    Apply a continuous 3-4mm bead of sealant to the inside of the cover flange surface. Make sure there are no gaps in the sealer. Allow to set for 5-10 minutes before installing the cover.Material: Silicone Sealant -

    GFD232050Courtesy of FORD MOTOR COMPANY
  64. Noting the two dowels and the idler gear shaft orientation, carefully install cover and hand start the bolts. Tighten the bolts in 2 stages per sequence shown.Torque:Stage 1: 37 NmStage 2: 47 Nm
    GFD232051Courtesy of FORD MOTOR COMPANY

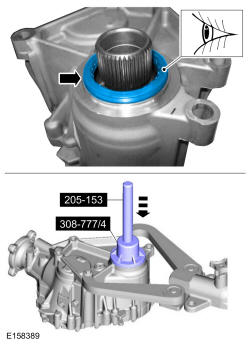

  65. NOTE: Position the inner seal above the PTU input shaft opening with the spring facing toward the PTU.

    Using the special tools, install the seal.Special Tool: 205-153 HandleSpecial Tool: 308-777 Remover and Installer, PTU Input Shaft Seal

    GFD232052Courtesy of FORD MOTOR COMPANY

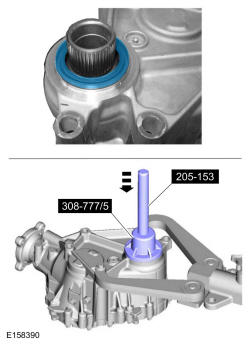

  66. NOTE: Position the outer seal above the PTU input shaft opening with the spring facing away from the PTU.

    Using the special tools, install the seal.Special Tool: 205-153 HandleSpecial Tool: 308-777 Remover and Installer, PTU Input Shaft Seal

    GFD232053Courtesy of FORD MOTOR COMPANY
  67. Install the new compression seal.Special Tool: 205-153 HandleSpecial Tool: 308-777 Remover and Installer, PTU Input Shaft Seal
    GFD232053Courtesy of FORD MOTOR COMPANY
  68. Special Tool: 308-777 Remover and Installer, PTU Input Shaft Seal cover seal.Special Tool: 308-221 Installer, Shaft Bearing CupSpecial Tool: 308-431 Installer, Halfshaft Oil SealSpecial Tool: 205-153 Handle
    GFD232054Courtesy of FORD MOTOR COMPANY
  69. Place the intermediate shaft seal on the special tools with the spring side facing away from the tool.Special Tool: 205-153 HandleSpecial Tool: 205-883 Installer, PTU Linkshaft Seal
    GFD232055Courtesy of FORD MOTOR COMPANY
  70. Using the special tools, install the intermediate shaft seal.Special Tool: 205-153 HandleSpecial Tool: 205-883 Installer, PTU Linkshaft Seal
    GFD232056Courtesy of FORD MOTOR COMPANY
  71. Place the alignment washer on the special tool.Special Tool: 205-153 HandleSpecial Tool: 205-883 Installer, PTU Linkshaft Seal
    GFD232057Courtesy of FORD MOTOR COMPANY
  72. NOTE: Do not use force when installing the alignment washer or damage to the washer can occur.

    Using the special tool, install the alignment washer by hand, pushing it in until it bottoms against the seal.Special Tool: 205-153 HandleSpecial Tool: 205-883 Installer, PTU Linkshaft Seal

    GFD232058Courtesy of FORD MOTOR COMPANY
  73. NOTE: Do not overheat (melt) the seal deflector. Monitor the temperature of the deflector with a suitable temperature measuring device, such as a digital temperature laser or infrared thermometer, while heating. Do not allow the temperature to exceed 100 ° C (212 ° F). Overheating will damage the deflector. If the deflector is damaged, a new deflector must be used.
    NOTE: As an alternative method to heating the seal deflector, place the deflector in boiling water for 3 to 5 minutes. Dry off the deflector and install.

    Position the deflector on the special tool using silicone brake caliper grease and dielectric compound to retain it to the installer. Using a suitable heat gun, heat the back of the tool to a minimum of 71 ° C (160 ° F) and a maximum of 93 ° C (200 ° F) by concentrating the heat across the back of the installer while rotating the tool. Once the optimum temperature is achieved on the tool, move the heat gun to the front of the tool and heat the inside of the deflector where it snaps onto the PTU shaft until the temperature of the deflector is a minimum of 93 ° C (200 ° F) to a maximum of 100 ° C (212 ° F).Special Tool: 205-346 Installer, Front Axle BushingSpecial Tool: 205-153 HandleMaterial: Grease - Silicone ESE-M1C171-A

    GFD232059Courtesy of FORD MOTOR COMPANY
  74. Using the special tools, install the intermediate shaft deflector.Special Tool: 205-346 Installer, Front Axle BushingSpecial Tool: 205-153 Handle
    GFD232060Courtesy of FORD MOTOR COMPANY
  75. Make sure the deflector is completely seated all the way around and there are no cracks on the face. The deflector is correctly installed when the face of the deflector is recessed 3-5 mm (0.12-0.20 in) into the pocket all the way around.
    GFD232061Courtesy of FORD MOTOR COMPANY
  76. Install the PTU drain plug.Torque: 12 Nm
    GFD232007Courtesy of FORD MOTOR COMPANY

    Vehicles with PTU cooler

  77. Install the PTU cooler housing gasket.
    GFD232062Courtesy of FORD MOTOR COMPANY
  78. Clean the PTU cooler housing.
    GFD232063Courtesy of FORD MOTOR COMPANY
  79. Install the PTU cooler housing and the PTU cooler housing bolts. The PTU temperature sensor, heat shield and bolts will be installed after the fluid fill.Torque: 12 Nm
    GFD232011Courtesy of FORD MOTOR COMPANY

    Vehicles without PTU cooler

  80. NOTE: Install a new O-ring before installing the PTU temperature sensor.

    Using a new O-ring, install the PTU temperature sensor and the temperature sensor wiring retainer clip.Torque: 14 Nm

    GFD232006Courtesy of FORD MOTOR COMPANY
  81. Install the PTU temperature sensor heat shield and the bolts.Torque: 12 Nm
    GFD232005Courtesy of FORD MOTOR COMPANY

    All Vehicles

  82. Install the temperature sensor clip bracket.Torque: 10 Nm
    GFD231992Courtesy of FORD MOTOR COMPANY
  83. Install the PTU.
