Seat Control Switch, 6-Way - Left

WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

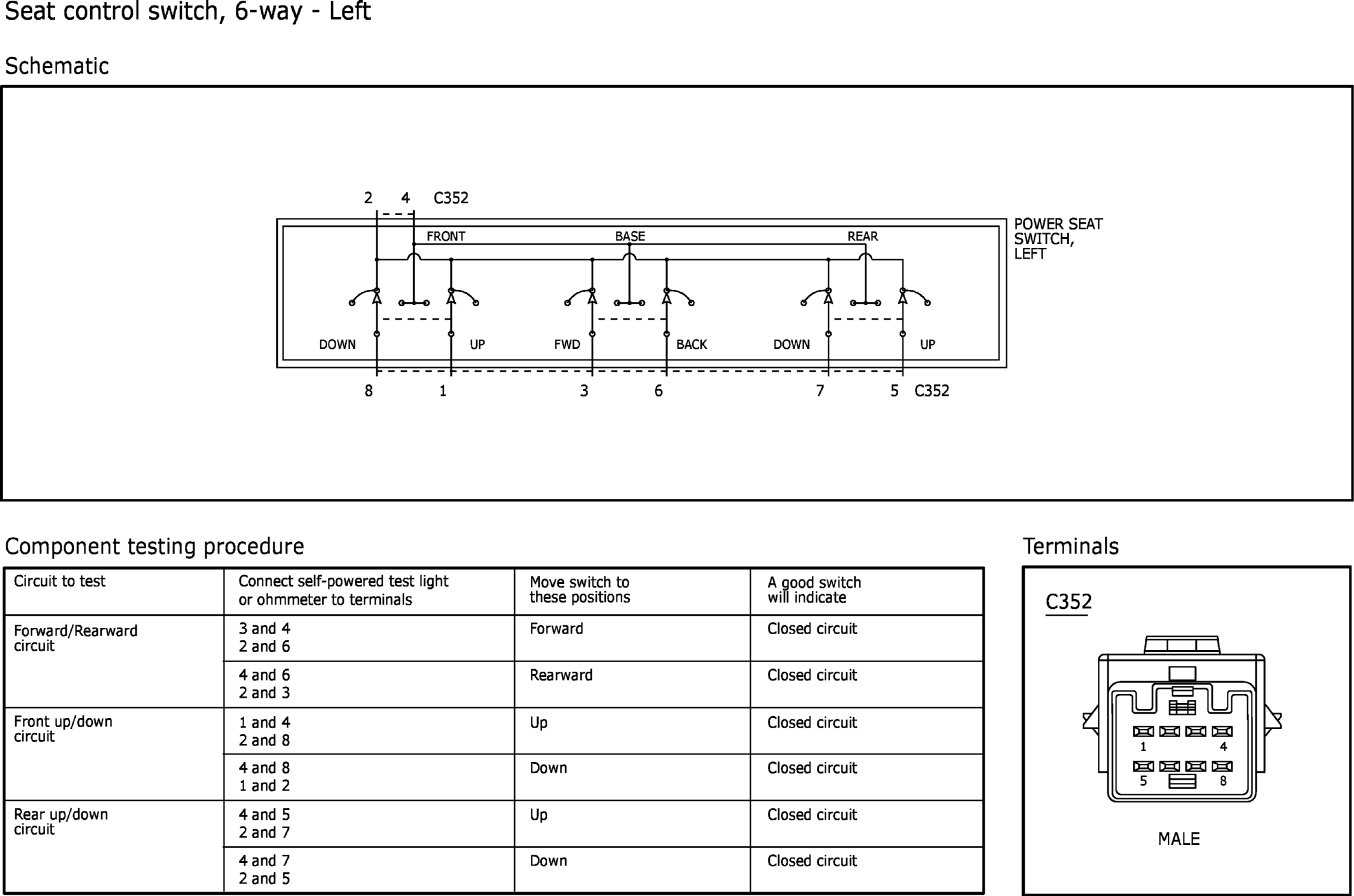

Fig 1: Seat Control Switch, 6-Way - Left
GFDW60245Courtesy of FORD MOTOR COMPANY
