Ignition Switch

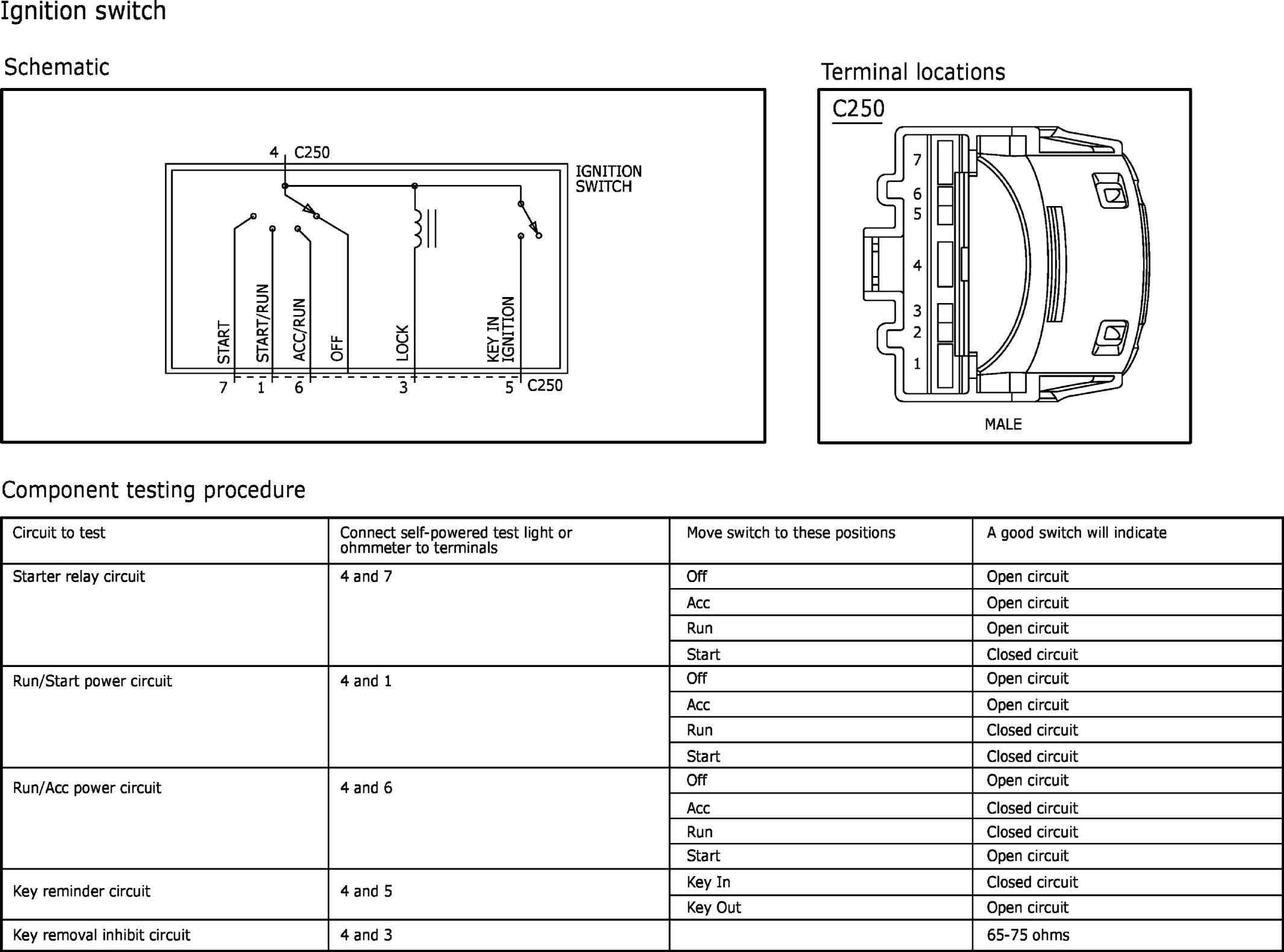

Fig 1: Ignition Switch
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
