Power Window Switch, RH Side Front
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Power Window Switch, RH Side Front

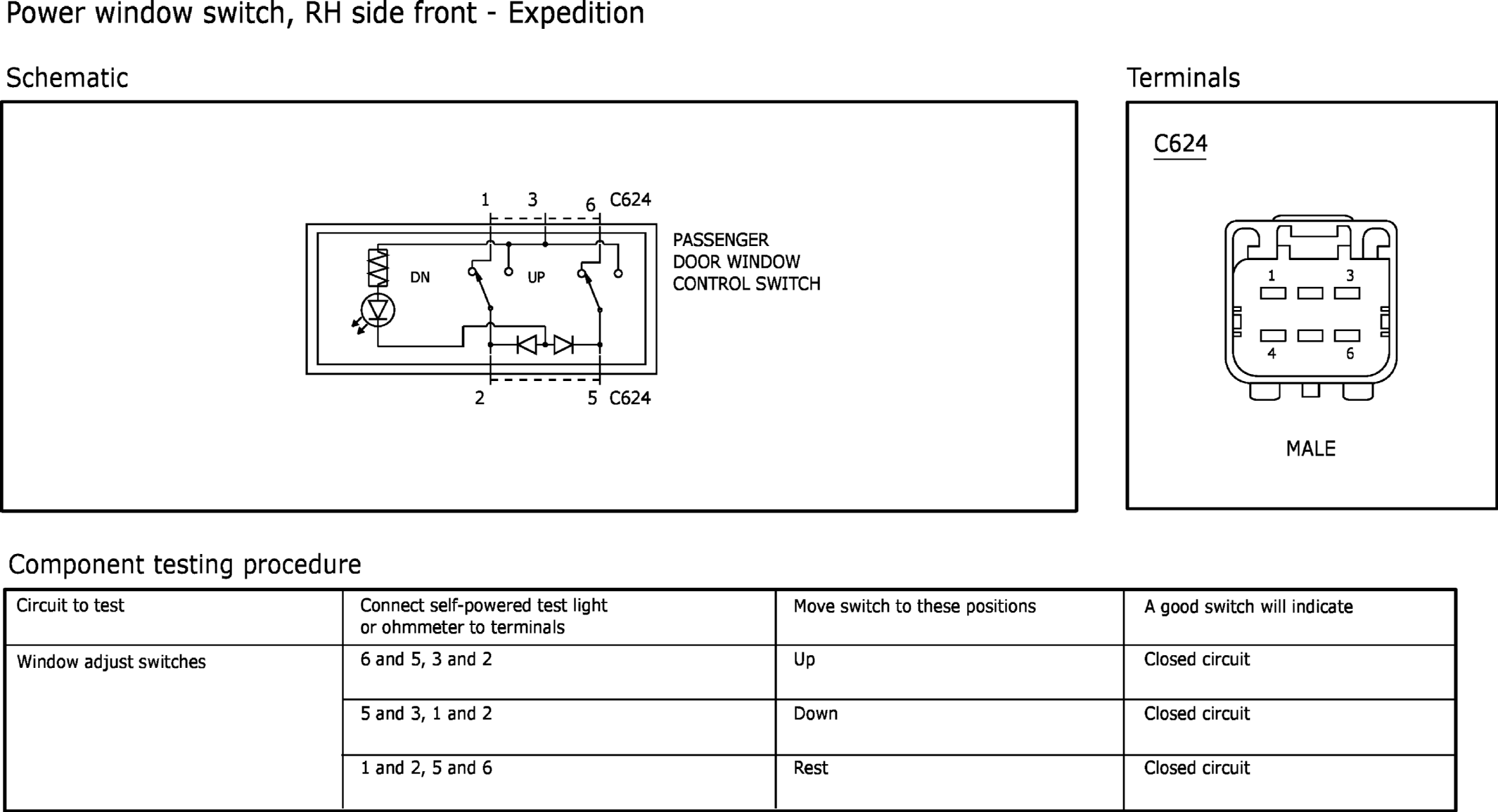

Fig 1: Power Window Switch, RH Side Front
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
