Roof Opening Panel Switch

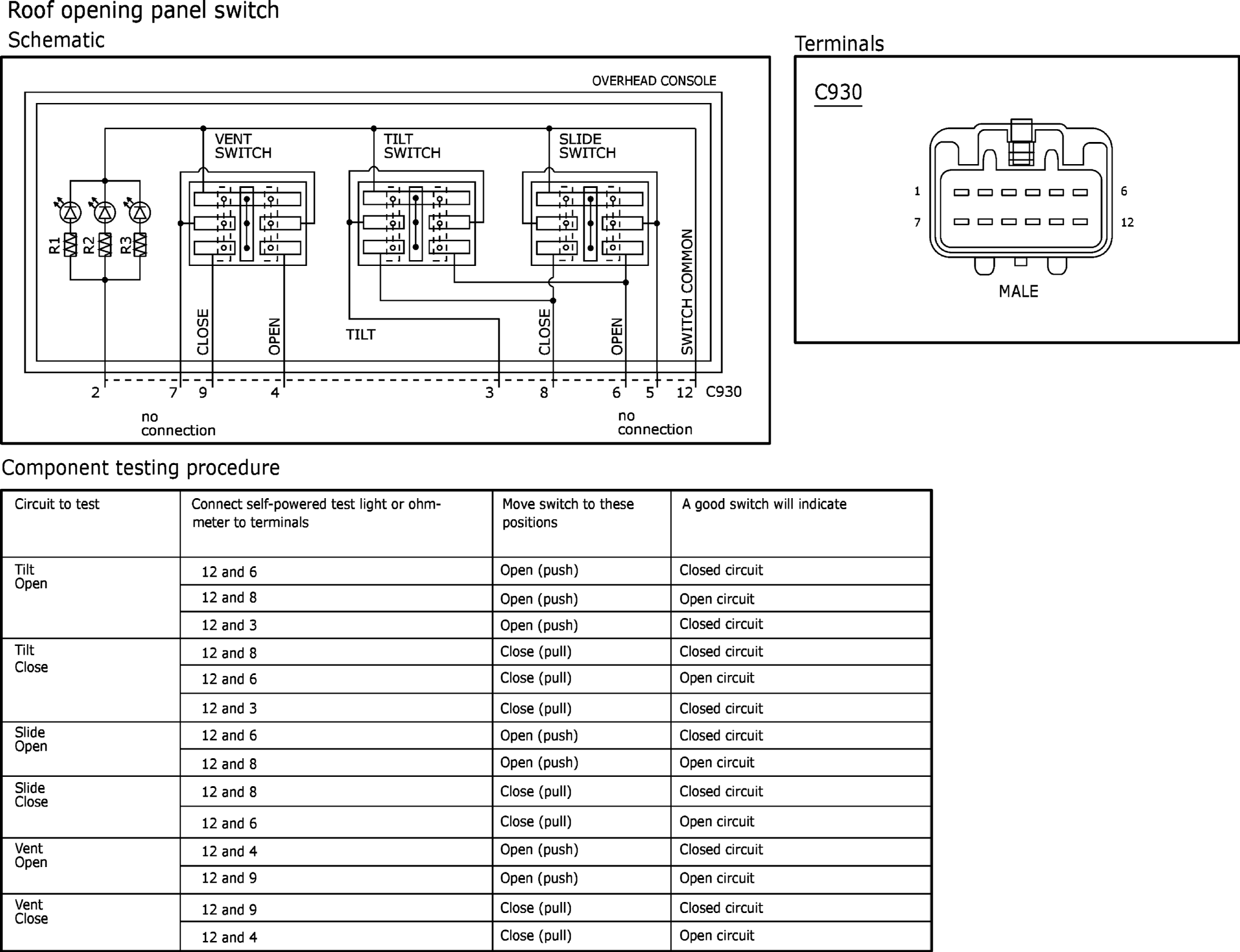

Fig 1: Roof Opening Panel Switch
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
