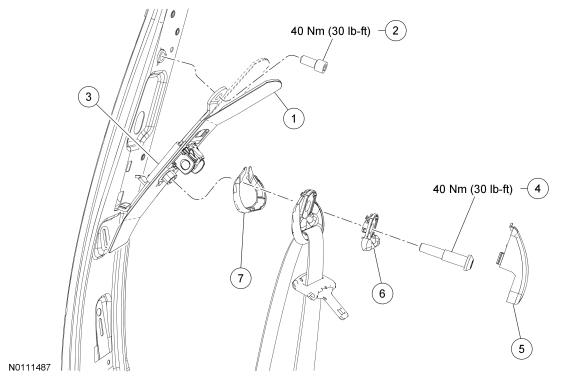

Safety Belt Shoulder Height Adjuster: Notes
NOTE:
RH shown, LH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Height adjuster cover (part of 602B82) |
| 2 | - | Height adjuster bolt (part of 602B82) |
| 3 | 602B82 | Height adjuster |
| 4 | - | D-ring bolt (part of 611B08 RH/ 611B09 LH) |
| 5 | 7860626 | D-ring front cover |
| 6 | - | D-ring inner cover (part of service kit 7860262) |
| 7 | - | D-ring outer cover (part of service kit 7860262) |
