Pinpoint Test DK: Accelerator Pedal Position (App) Sensor: Introduction
NOTE:
After clearing an APP sensor diagnostic trouble code (DTC) to verify a repair or an intermittent concern, apply the accelerator pedal before carrying out the self-test. Take 10 seconds to carry out a full sweep of the accelerator pedal from fully released to fully applied and back to fully released.
This pinpoint test is intended to diagnose the following:
- APP sensor (9F836)
- harness circuits: APP1, APP2, APPRTN1, APPRTN2, APPVREF1, APPVREF2, VPWR and GND
- PCM (12A650)

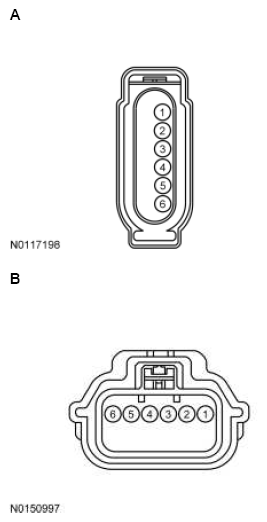

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Fiesta | A | 4 6 2 5 3 1 |
GND VPWR APP2 APP1 APPRTN2 APPVREF2 |
| All other vehicles | B | 5 2 4 6 3 1 |
APP2 APP1 APPRTN2 APPVREF2 APPRTN1 APPVREF1 |
| Pin | Circuit |
|---|---|
| 31 | APPVREF2 (Accelerator Pedal Position Reference Voltage 2) |
| 13 | APPRTN2 (Accelerator Pedal Position Return 2) |
| 14 | APP2 (Accelerator Pedal Position 2) |
Powertrain Control Module (PCM) Connector
For PCM connector views or reference values, refer to REFERENCE VALUES .
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Continental 3.7L, E-Series, EcoSport 1.5L Automatic Transmission, Edge 3.5L, Escape/Kuga 2.5L, Explorer TiVCT 3.5L, Explorer 3.7L, F-650/F-750, F-Series Super Duty, Flex TiVCT 3.5L, Fusion 2.5L, MKT 3.7L, MKX 3.7L, Motorhome/Stripped Chassis/Step Van, Mustang 5.2L, Taurus TiVCT 3.5L, Taurus 3.7L, Transit 3.7L, Transit Connect |
198 PIN | B60 B61 |
APP2 APP1 |
| EcoSport 1.5L Manual Transmission | 112 PIN | B24 B23 |
APP2 APP1 |
| Escape/Kuga 1.5L | 198 PIN | B47 B14 |
APP2 APP1 |
| F-150 2.7L, F-150 3.3L, F-150 5.0L, Mustang 5.0L |
306 PIN | B68 B56 |
APP2 APP1 |
| Fiesta 1.0L, Fiesta GTDI 1.6L |
198 PIN | B45 | APP1 |
| Fiesta TiVCT 1.6L | 128 PIN | T12 | APP1 |
| Focus GDI 2.0L | 154 PIN | B26 B52 |
APP2 APP1 |
| KA | 128 PIN | B8 B21 |
APP2 APP1 |
| Mustang 2.3L | 198 PIN | B34 B33 |
APP2 APP1 |
| Ranger | 128 PIN | B29 B30 |
APP2 APP1 |
| All other vehicles | 198 PIN | B54 B55 |
APP2 APP1 |
