Front Wheel Speed Sensor: Removal

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

1. Refer to: Wheel and Tire .

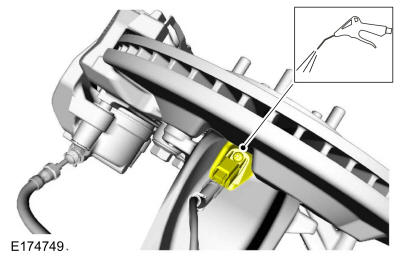

2. NOTE: Make sure that the sensor housing area is clean and free of foreign material before the sensor is removed.

   Courtesy of FORD MOTOR COMPANY

   Courtesy of FORD MOTOR COMPANY

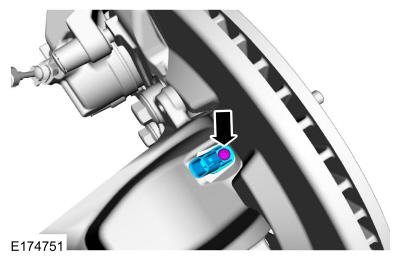

3. Torque

   : 42 lb.in (4.8 Nm)

Courtesy of FORD MOTOR COMPANY
